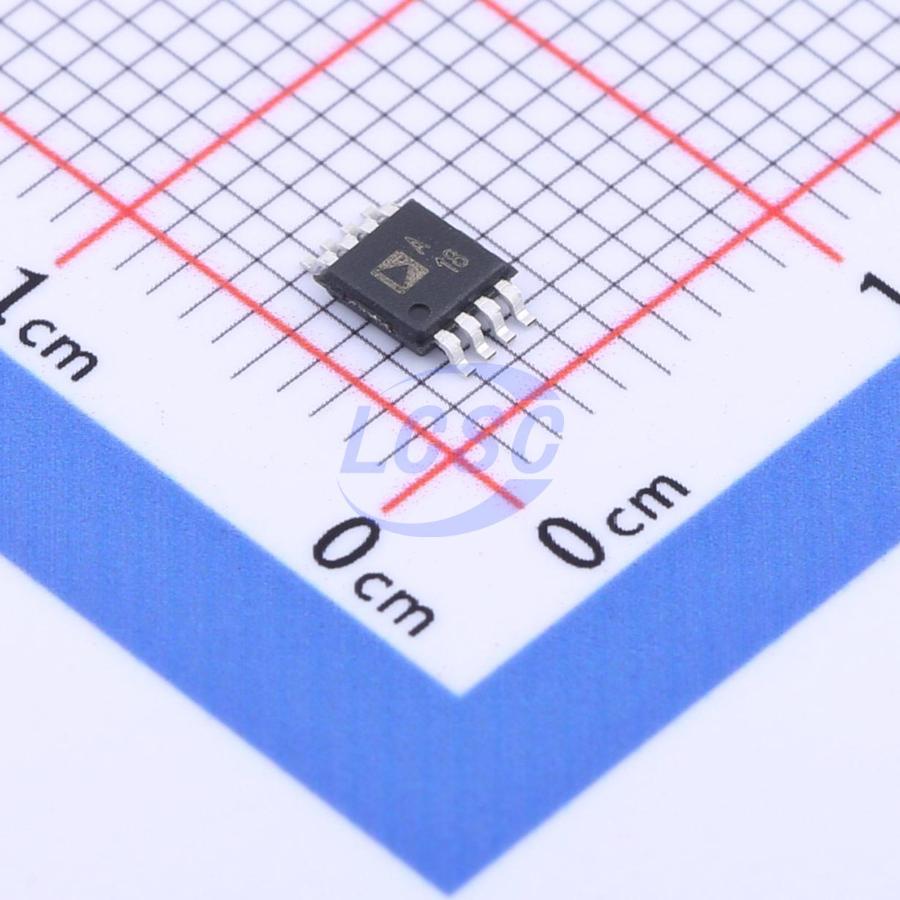

ADI

ADTL082ARMZ-REEL

27mA 2 5.5mV 20V/us 80dB 2pA 1.2mA 5MHz MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

JFET-input operational amplifier

Manufacturer: ADI
Manufacturer part #: ADTL082ARMZ-REEL
Store part #: C660059
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,891 in stock

#C660059

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹195.58	₹195.58
10+	₹161.90	₹1,619.00
30+	₹143.43	₹4,302.90
100+	₹122.77	₹12,277.00
500+	₹113.43	₹56,715.00
1,000+	₹109.31	₹1,09,310.00

Quantity (min 1)

1 × ₹195.58

₹195.58

excl. GST

₹230.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ADTL082ARMZ-REEL

₹195.58 for 1 + GST

Specifications

Output Current: 27mA
Number of Channels: 2
Vos - Input Offset Voltage: 5.5mV
Slew Rate: 20V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 1.2mA
Gain Bandwidth Product: 5MHz
Features: Built-in compensation;Short-Circuit Protection
Input Voltage Noise Density: 16nV/√Hz@1kHz
Dual Supply: -15V~15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.086 g

Overview

The ADTL082 and ADTL084 are JFET input amplifiers that provide industry-leading performance over TL08x devices. The ADTL082A and ADTL084A are improved versions of TL08x A, I, and Q grades. The ADTL082J and ADTL084J are industry alternatives to the TL08x standard and C grades. The ADTL08x family offers lower noise, offset voltage, offset drift over temperature, and bias current over the TL08x. In addition, the ADLT08x family has better common-mode rejection and slew rates. These op amps are ideal for various applications, including process control, industrial and instrumentation equipment, active filtering, data conversion, buffering, and power control and monitoring. The A grade amplifiers are available in lead-free packaging. The standard grade amplifiers are available in both leaded and leadfree packaging. The ADTL082A and ADTL084A are specified over the extended industrial ( -40℃ to +125℃ ) temperature range. The ADTL082J and ADTL084J are specified over the commercial ( 0℃ to 70℃ ) temperature range.

Applications

General-purpose amplification
Power control and monitoring
Active filters
Industrial/process control
Data acquisition
Sample and hold circuits
Integrators
Input buffering

Key features

TL082/TL084 compatible
Low input bias current: 10 pA maximum
Offset voltage 5.5mV maximum (ADTL082A/ADTL084A) 9 mV maximum (ADTL082J/ADTL084J)
±150 operation
Low noise: 16 nV/√Hz
Wide bandwidth: 5 MHz
Slew rate: 20 V/μs
CMRR: 80 dB minimum
Total harmonic distortion: 0.007%
Supply current: 1.2 mA typical
Unity-gain stable
