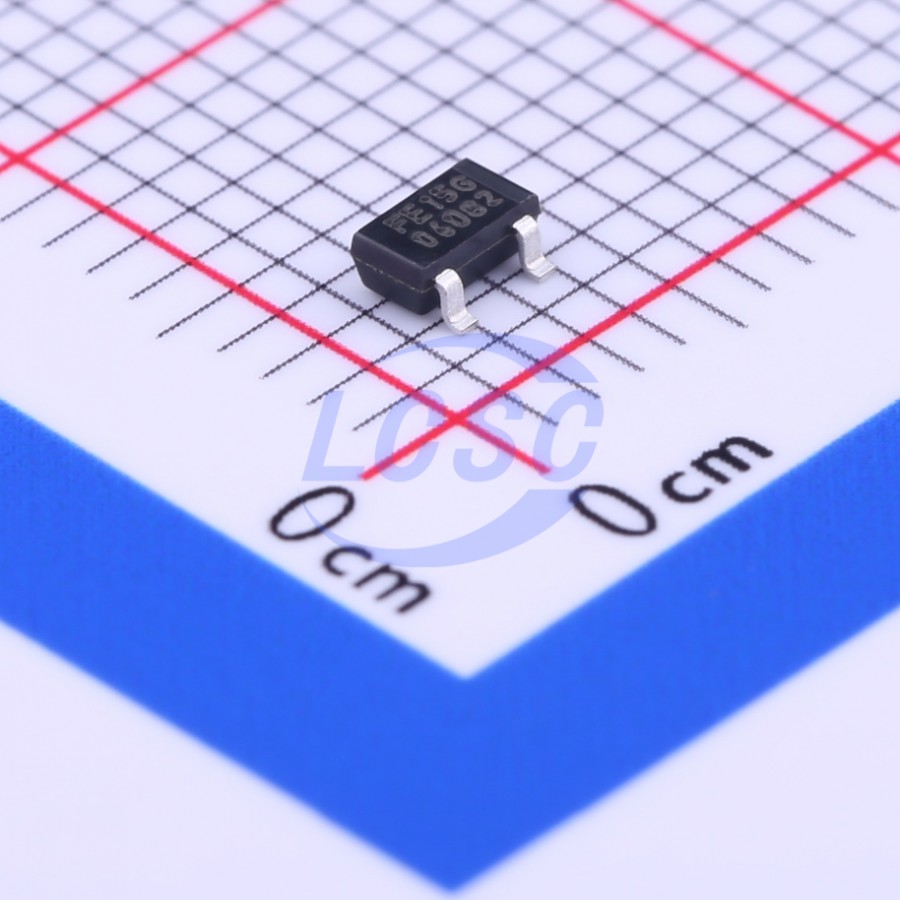

AIC1747-15GU3TR

AIC1747 is optimized for ceramic capacitor operation with 300mA continuous current. The AIC1747 is designed for portable RF and wireless applications with demanding performance and space requirements. The AIC1747 offers high precision output voltage of ±2% tolerance. Output Voltage is available within 1.1~4.2V. There are version of 1.1, 1.2, 1.3, 1.5, 1.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.5, 3.7, 3.8 and 4.0 for a fixed output voltage. A noise bypass pin is available for further reduction of output noise. At 300mA load current, a 270mV dropout can be performed. The quality of low quiescent current and low dropout voltage makes the device ideal for battery power applications. The high ripple rejection and low noise of the AIC1747 provide enhanced performances for critical applications such as cellular phones, and PDAs. In addition, a logic-level shutdown input is included, which reduce supply current to less than 0.01 μA (typ.) in shutdown mode with fast turn-on & off time less than 50 μs & 30 μs. The AIC1747’s current limit and thermal protection provide protection against any overload condition that would cause excessive junction temperatures.

Applications

• Cellular Phones
• PCMCIA Cards
• Laptop, Palmtops, Notebook Computers
• Personal Communication Equipment
• PDAs
• Digital Still Cameras
• Portable Consumer Equipments

Key features

• Guarantee 300mA Output Current. Fast Response in Line/Load Transient
• Wide Operating Voltage Ranges: 2.0V to 6.0V
• 0.01 μA Shutdown Standby Current
• Low Quiescent Current: 80 μA
• Output Voltage is available within 1.1~4.2V
• Low Dropout: 270mV at 300mA
• PSRR: 60dB at 1kHz
• Active High Shutdown Control
• Fixed: 1.1, 1.2, 1.3, 1.5, 1.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.5, 3.7, 3.8, 4.0 Output Voltage
• Current Limit and Thermal Protection
• Available in ±2% Output Tolerance
• Available in 3 & 5 lead of SOT-23, TSOT23, SC70, & SOT-89 & DFN 6L 2x2 Package
