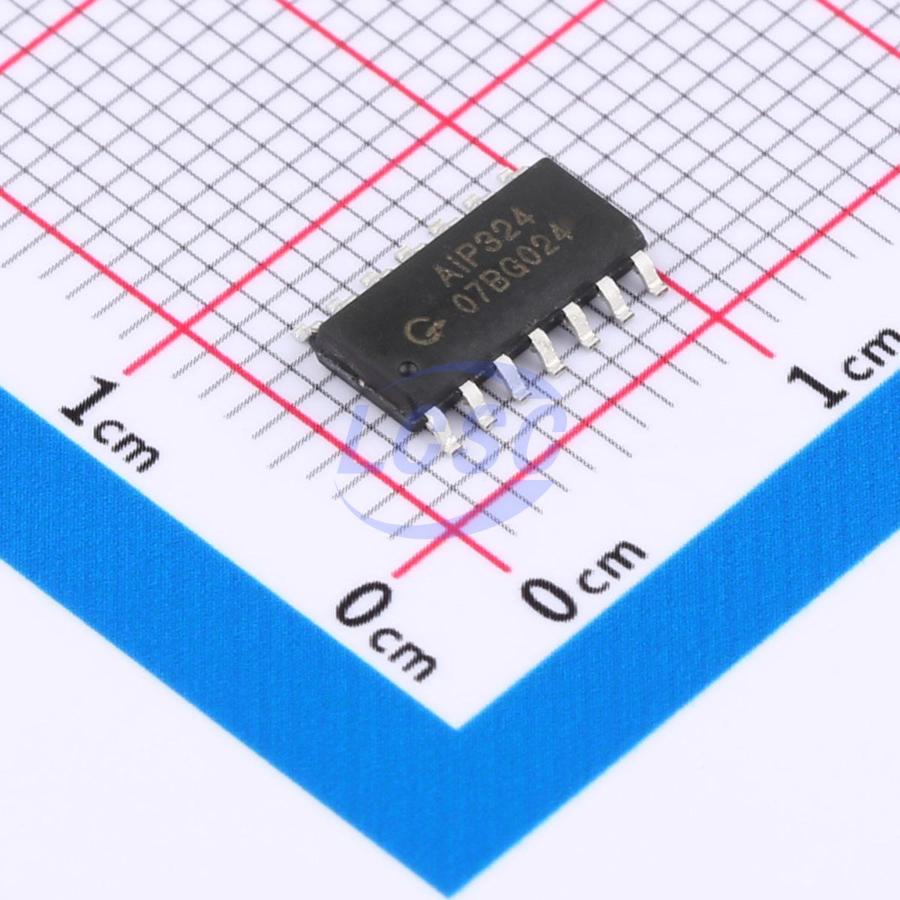

AIP324SA14.TR

AiP224/AiP324 consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 30V, and the positive supply voltage (VCC) is at least 1.5V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. Applications include transducer amplifiers, DC amplification blocks, and all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems.

Applications

• transducer amplifiers
• DC amplification blocks
• all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems

Key features

• Wide Supply Ranges Single Supply: 3V to 36V Dual Supplies: ±1.5V to ±18V
• Low Supply-Current Drain Independent of Supply Voltage: 0.8mA Typical
• Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
• Low Input Bias and Offset Parameters Input Offset Voltage: 3mV Typical Input Offset Current: 2nA Typical Input Bias Current: 20nA Typical Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36V
• Open-Loop Differential Voltage Amplification: 100V/mV Typical
• Internal Frequency Compensation Packing Form: DIP14/SOP14/TSSOP14
