Wuxi I-core ElecDatasheet (PDF)

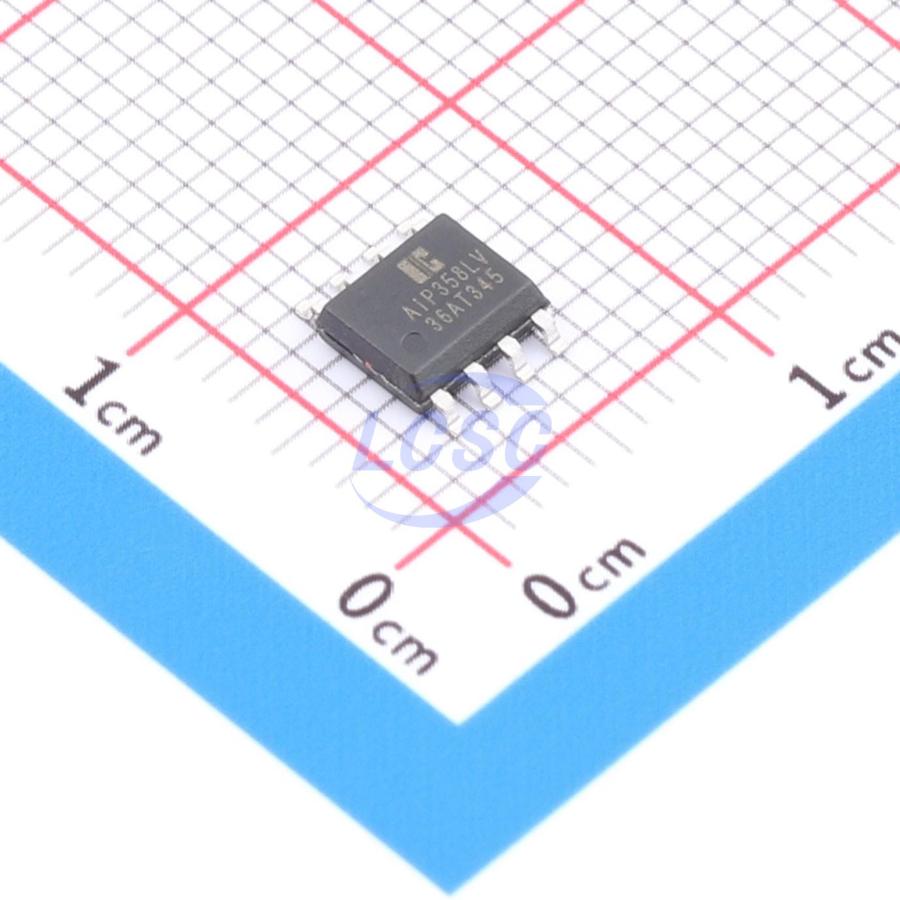

AiP358LVSA8.TR
100mA 2 1mV 700V/ms 1pA 85dB 80uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP358LVSA8.TR
- Store part #
- C52722513
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,970 in stock
#C52722513
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.79 | ₹93.95 |
| 50+ | ₹14.83 | ₹741.50 |
| 150+ | ₹12.86 | ₹1,929.00 |
| 500+ | ₹11.36 | ₹5,680.00 |
| 2,500+ | ₹10.19 | ₹25,475.00 |
| 4,000+ | ₹9.59 | ₹38,360.00 |
5 × ₹18.79
₹93.95
excl. GST
₹110.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP358LVSA8.TR
₹93.95 for 5 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 80uA
- Gain Bandwidth Product
- 1MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Overview
AiP358LV is a rail-to-rail input/output operational amplifier with a wide common-mode input voltage range and output voltage swing.
Applications
- Sense amplifier
- DC gain module
- Audio amplifier
- Industrial control
Key features
- Operating voltage range: 2.5V ~ 5.5V
- Offset voltage < 4 mV
- Offset voltage drift: 2 μV/°C
- Gain bandwidth: 1 MHz
- Output capability: 100 mA
- Rail-to-rail input and output
- Slew rate: 0.7 V/μs
- Supply current: 80 μA (per channel)
- Operating temperature range: -40°C ~ +85°C
- Package: SOP8, MSOP8, TSSOP8
