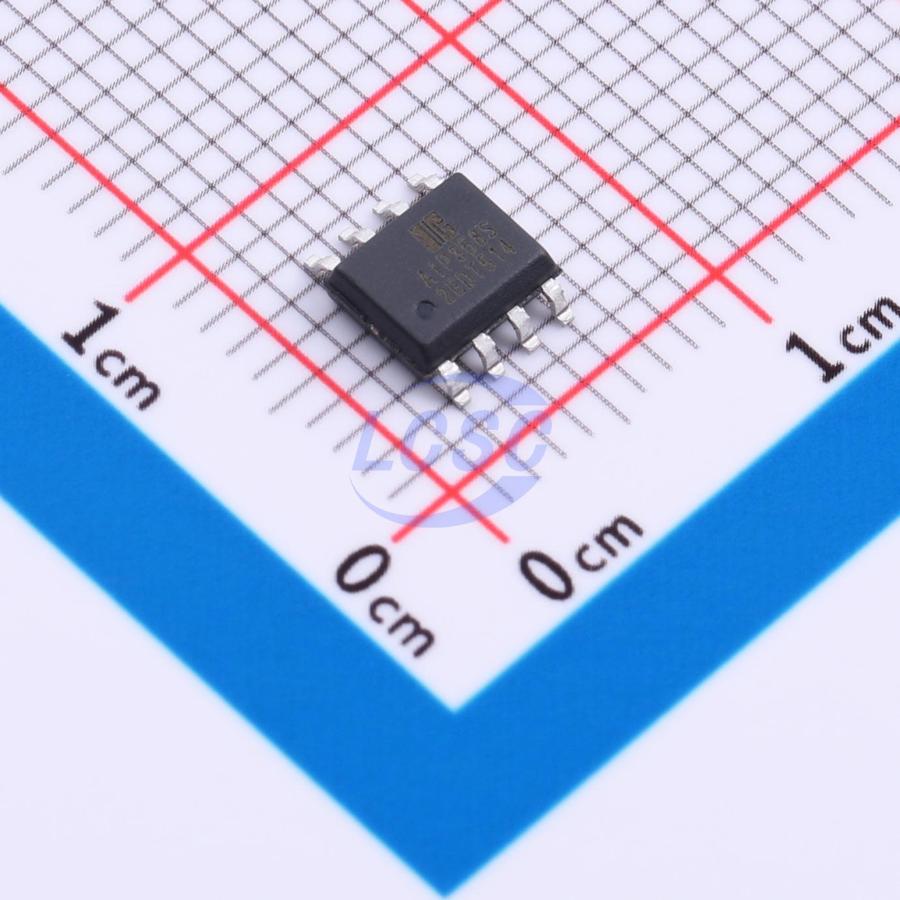

Wuxi I-core Elec

AiP358SSA8.TR

30mA 2 3mV 450V/ms 100dB 20nA 800kHz 700uA SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP358SSA8.TR
Store part #: C52953031
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,985 in stock

#C52953031

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.69	₹63.45
50+	₹10.08	₹504.00
150+	₹8.77	₹1,315.50
500+	₹7.79	₹3,895.00
2,500+	₹7.01	₹17,525.00
4,000+	₹6.63	₹26,520.00

Quantity (min 5, multiples of 5)

5 × ₹12.69

₹63.45

excl. GST

₹74.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AiP358SSA8.TR

₹63.45 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 450V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 20nA
Gain Bandwidth Product: 800kHz
Quiescent Current: 700uA
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: -18V~-1.5V;1.5V~18V
Single Supply: 3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.235 g

Overview

This device contains two independent, high-gain, internally frequency-compensated dual op-amps. It is suitable for single-supply applications over a wide range of supply voltages, and can also operate in dual-supply mode. Under recommended operating conditions, the supply current is independent of the supply voltage. The device is available in SOP8 or DIP8 packages.

Applications

Sense amplifier
Audio amplifier
Industrial control
DC gain stage

Key features

Wide supply voltage range: single supply 3V~36V; dual supply ±1.5V~±18V
Low supply current, independent of supply voltage: typical 0.7mA
Wide unity-gain bandwidth: 0.8MHz
Internal frequency compensation
Low input bias and offset parameters: input offset voltage typical 3mV; input offset current typical 2nA; input bias current typical 20nA
Differential input voltage range equal to maximum rated supply voltage: ±36V
Open-loop differential voltage gain typical 80dB
