Wuxi I-core Elec

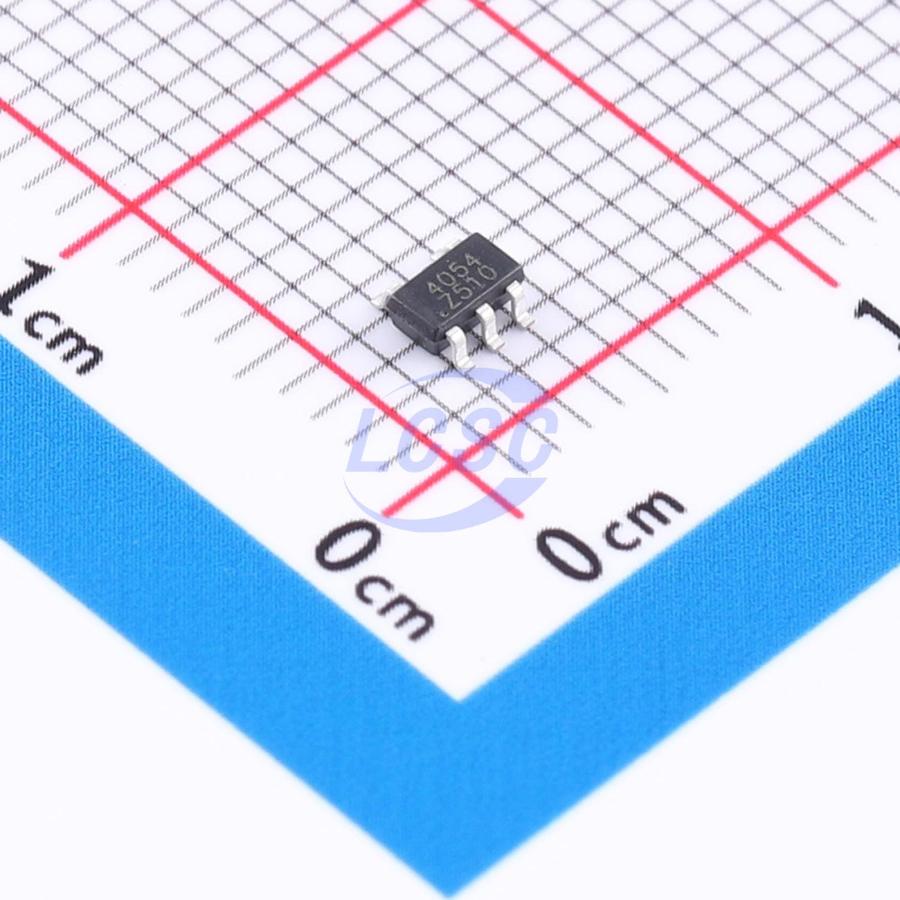

AiP4054GB235.TR

Lithium Battery 500mA SOT-23-5 Battery Management

SOT-23-5RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP4054GB235.TR
Store part #: C52268507
Package / case: SOT-23-5
Category: Battery Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,040 in stock

#C52268507

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹2.80	₹56.00
200+	₹2.20	₹440.00
600+	₹1.85	₹1,110.00
3,000+	₹1.65	₹4,950.00
9,000+	₹1.48	₹13,320.00
21,000+	₹1.38	₹28,980.00

Quantity (min 20, multiples of 20)

20 × ₹2.80

₹56.00

excl. GST

₹66.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP4054GB235.TR

₹56.00 for 20 + GST

Specifications

Operating Temperature: -40℃~+85℃
Quiescent Current: 45uA
Type of Battery: Lithium Battery
Operating Voltage: 4.25V~5.5V
The Chip Type: Charging IC
Charge Current - Max: 500mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.026 g

Overview

AiP4054 is a single-cell lithium battery charge management IC, employing trickle/constant-current/constant-voltage charging. The charge voltage is set at 4.2V, and the charge current is programmable via an external resistor. When the battery voltage reaches the set value and the charge current drops to 1/10 of the programmed value, the IC terminates charging and enters standby mode, with supply current below 100μA. When the supply is removed, the IC automatically enters a low-power standby state, with battery leakage current below 1μA. The IC integrates undervoltage lockout, automatic recharge, and charge status indication functions.
