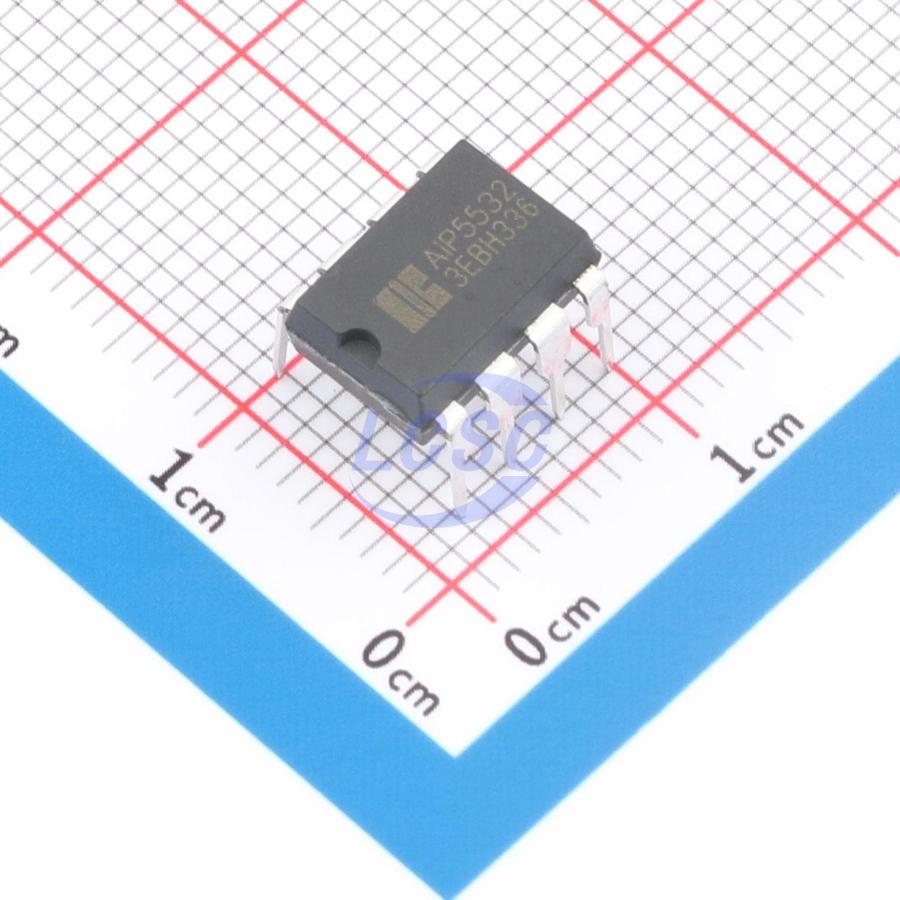

Wuxi I-core Elec

AiP5532DA8.TB

38mA 2 500uV 6V/us 100dB 250nA 7MHz 5mA DIP-8 Instrumentation, Op Amps, Buffer Amps

DIP-8RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP5532DA8.TB
Store part #: C52722527
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,985 in stock

#C52722527

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹49.16	₹245.80
50+	₹38.92	₹1,946.00
150+	₹34.41	₹5,161.50
500+	₹29.09	₹14,545.00
2,000+	₹26.63	₹53,260.00
4,000+	₹24.99	₹99,960.00

Quantity (min 5, multiples of 5)

5 × ₹49.16

₹245.80

excl. GST

₹290.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

AiP5532DA8.TB

₹245.80 for 5 + GST

Specifications

Output Current: 38mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 6V/us
Input Offset Current(Ios): 10nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 250nA
Gain Bandwidth Product: 7MHz
Quiescent Current: 5mA
Input Voltage Noise Density: 5nV/√Hz@1kHz
Dual Supply: -18V~-2.5V;2.5V~18V
Single Supply: 5V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.113 g

Overview

AiP5532 is a dual-channel high-performance, low-noise operational amplifier featuring low noise, high gain, high slew rate, and high output drive capability. It supports both single-supply and dual-supply operation, making it widely applicable in instrumentation, industrial control, and audio amplification systems.
