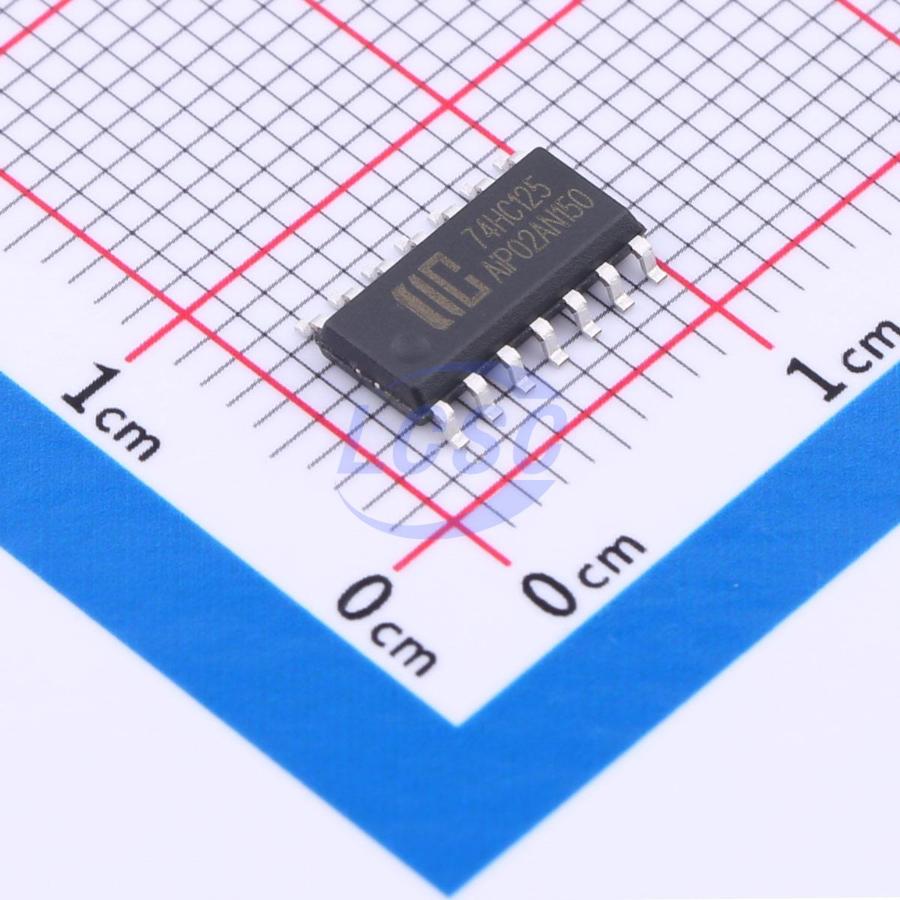

Wuxi I-core Elec

Aip74HC125SA14.TR

2V~6V 4 4 11ns@4.5V,50pF SOP-14 Buffers, Drivers, Receivers, Transceivers

SOP-14RoHSActive

Quad Buffer/Line Driver; 3-state

Manufacturer: Wuxi I-core Elec
Manufacturer part #: Aip74HC125SA14.TR
Store part #: C5138994
Package / case: SOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,590 in stock

#C5138994

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.11	₹100.55
50+	₹15.55	₹777.50
150+	₹13.27	₹1,990.50
500+	₹11.56	₹5,780.00
2,500+	₹10.19	₹25,475.00
4,000+	₹9.51	₹38,040.00

Quantity (min 5, multiples of 5)

5 × ₹20.11

₹100.55

excl. GST

₹118.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

Aip74HC125SA14.TR

₹100.55 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 4
Channel Type: Unidirectional
Number of Elements: 4
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 2uA
Propagation Delay: 11ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.22 g

Overview

The AiP74HC/HCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
