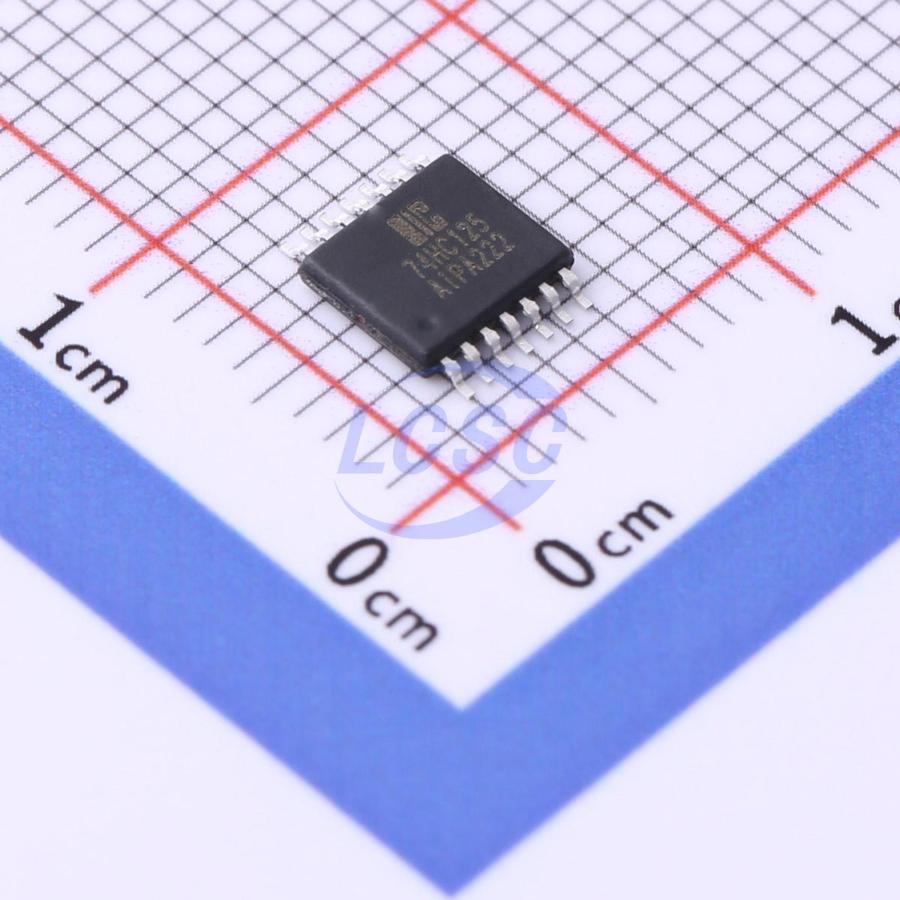

Wuxi I-core Elec

AIP74HC125TA14.TR

2V~6V 1 4 11ns@4.5V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers

TSSOP-14RoHSActive

Quad Buffer/Line Driver; 3-state

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74HC125TA14.TR
Store part #: C4945085
Package / case: TSSOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,860 in stock

#C4945085

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹24.09	₹120.45
50+	₹18.63	₹931.50
150+	₹15.90	₹2,385.00
500+	₹13.85	₹6,925.00
2,500+	₹12.21	₹30,525.00
5,000+	₹11.39	₹56,950.00

Quantity (min 5, multiples of 5)

5 × ₹24.09

₹120.45

excl. GST

₹142.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

AIP74HC125TA14.TR

₹120.45 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 4
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 8uA
Propagation Delay: 11ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.16 g

Overview

The AiP74HC/HCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
