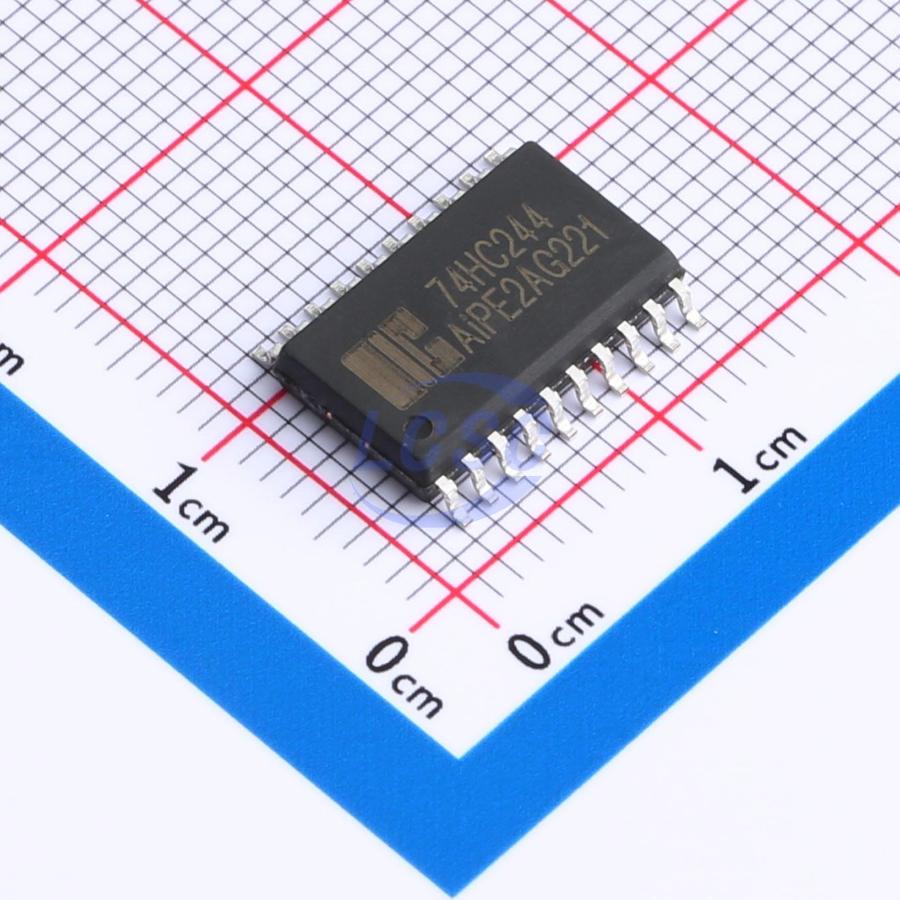

Wuxi I-core Elec

AiP74HC244SA20.TR

2V~6V 8 1 11ns@4.5V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers

SOP-20RoHSActive

8-channel buffer/line driver with three-state control

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74HC244SA20.TR
Store part #: C5162254
Package / case: SOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,345 in stock

#C5162254

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹35.48	₹177.40
50+	₹27.28	₹1,364.00
150+	₹23.77	₹3,565.50
500+	₹19.40	₹9,700.00
2,000+	₹17.44	₹34,880.00
4,000+	₹16.27	₹65,080.00

Quantity (min 5, multiples of 5)

5 × ₹35.48

₹177.40

excl. GST

₹209.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

AiP74HC244SA20.TR

₹177.40 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 8
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+105℃
Quiescent Supply Current: 8uA
Propagation Delay: 11ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.9 g

Overview

AiP74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable inputs (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance state. Input clamping diodes are provided. This enables the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
