Wuxi I-core Elec

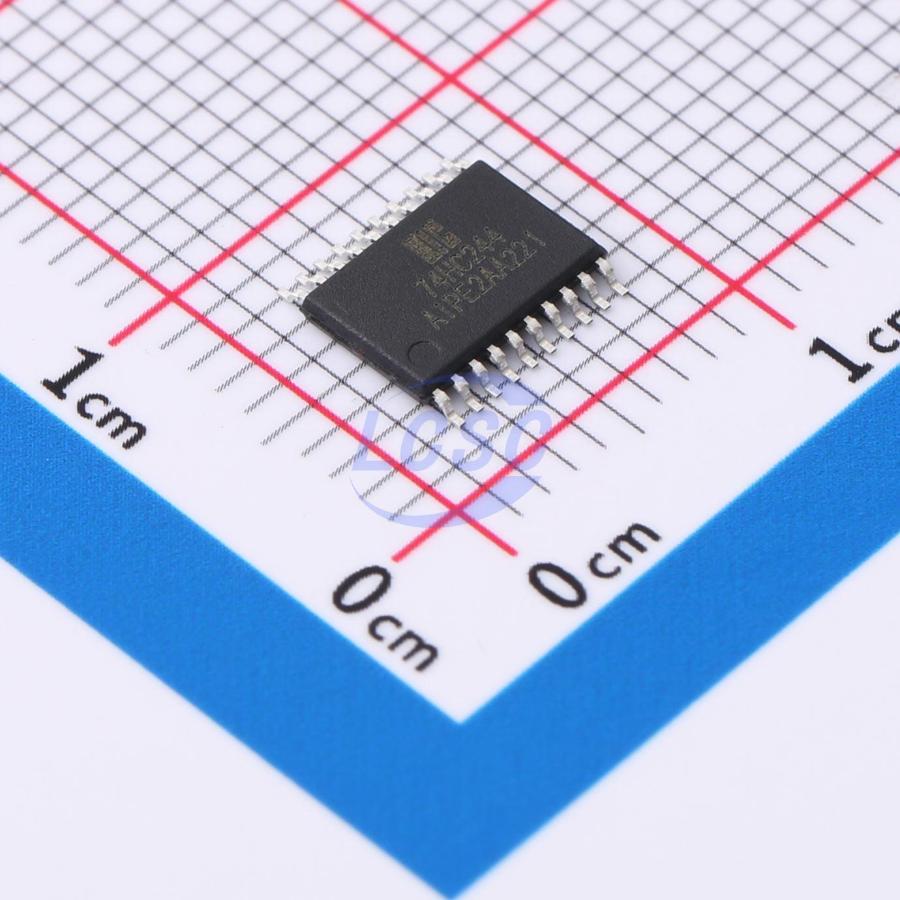

AIP74HC244TA20.TR

2V~6V 4 2 11ns@4.5V,15pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers

TSSOP-20RoHSActive

8-channel buffer/line driver with three-state control

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74HC244TA20.TR
Store part #: C5196954
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,965 in stock

#C5196954

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.65	₹128.25
50+	₹19.73	₹986.50
150+	₹17.19	₹2,578.50
500+	₹14.01	₹7,005.00
2,500+	₹12.61	₹31,525.00
4,000+	₹11.76	₹47,040.00

Quantity (min 5, multiples of 5)

5 × ₹25.65

₹128.25

excl. GST

₹151.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AIP74HC244TA20.TR

₹128.25 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 4
Channel Type: Unidirectional
Operating Temperature: -40℃~+105℃
Number of Elements: 2
Quiescent Supply Current: 8uA
Propagation Delay: 11ns@4.5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

AiP74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable inputs (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance state. Input clamping diodes are provided. This enables the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
