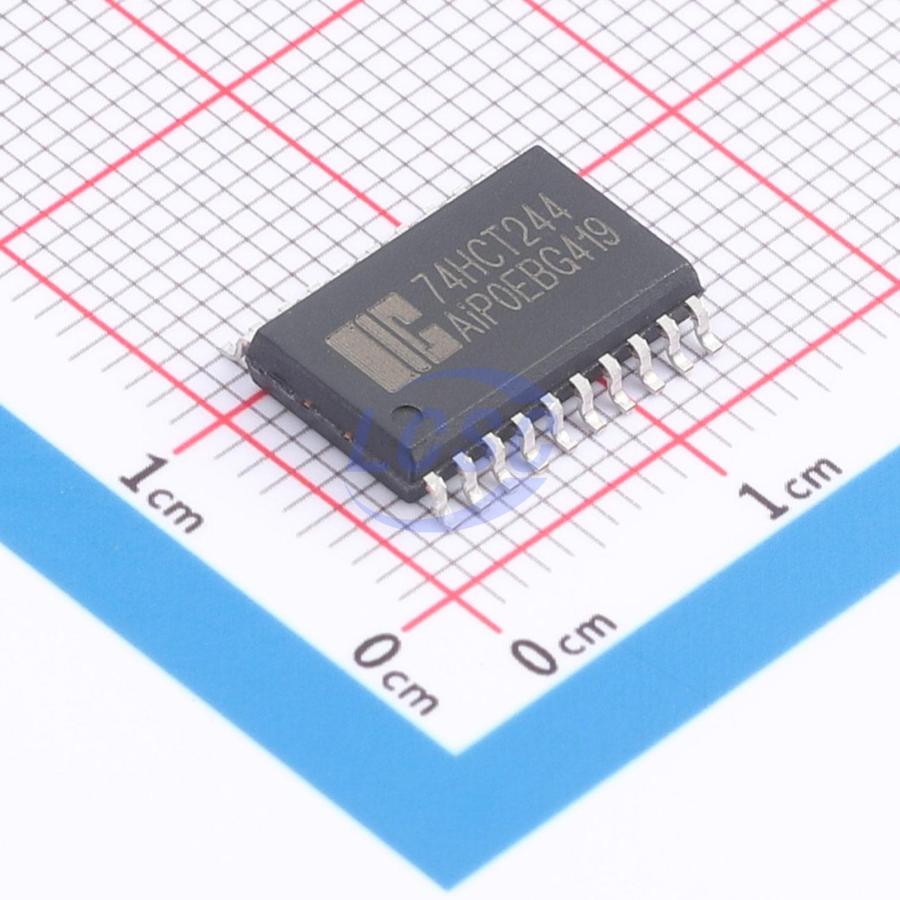

Wuxi I-core Elec

AiP74HCT244SA20.TR

TTL-compatible CMOS 4.5V~5.5V 8 2 22ns@4.5V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers

SOP-20RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74HCT244SA20.TR
Store part #: C52120883
Package / case: SOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,975 in stock

#C52120883

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹26.17	₹130.85
50+	₹20.70	₹1,035.00
150+	₹18.36	₹2,754.00
500+	₹15.44	₹7,720.00
2,000+	₹14.13	₹28,260.00
4,000+	₹13.36	₹53,440.00

Quantity (min 5, multiples of 5)

5 × ₹26.17

₹130.85

excl. GST

₹154.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

AiP74HCT244SA20.TR

₹130.85 for 5 + GST

Specifications

Function: Output enable
Input type: TTL-compatible CMOS
Current - Output High(IOH): 6mA
Voltage - Supply: 4.5V~5.5V
Series: 74HCT
Output Type: Tri-State
Current - Output Low(IOL): 6mA
Number of Bits per Element: 8
Channel Type: Unidirectional
Number of Elements: 2
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 8uA
Propagation Delay: 22ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.802 g

Overview

AiP74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable inputs (1OE and 2OE), each controlling four 3-state outputs. When nOE is HIGH, the outputs are driven to a high-impedance state. Input clamping diodes are provided, allowing input interfacing to voltages above VCC through current-limiting resistors.
