Wuxi I-core ElecDatasheet (PDF)

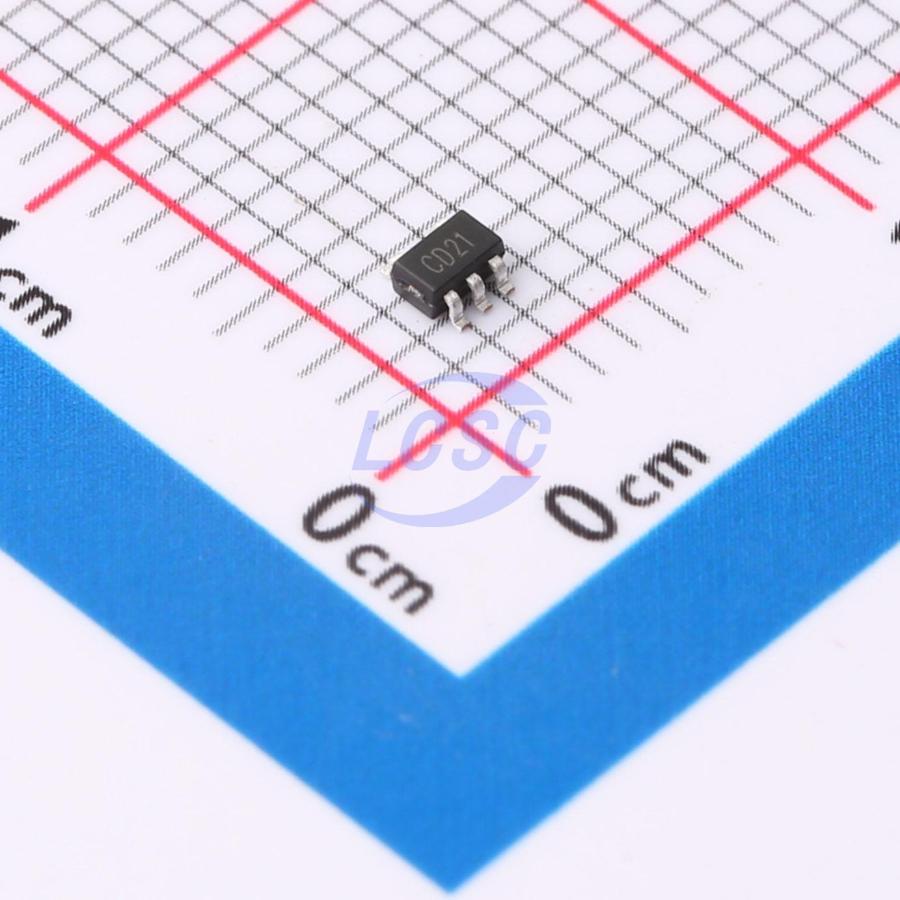

AiP74LV1T08GC353.TR
AND Gate IC 1 Channel SOT-353
SOT-353RoHSActive
Single-channel single-power-supply conversion 2-input AND gate
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LV1T08GC353.TR
- Store part #
- C7437294
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,720 in stock
#C7437294
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹13.08 | ₹130.80 |
| 100+ | ₹10.12 | ₹1,012.00 |
| 300+ | ₹8.64 | ₹2,592.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹6.63 | ₹39,780.00 |
| 9,000+ | ₹6.19 | ₹55,710.00 |
10 × ₹13.08
₹130.80
excl. GST
₹154.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LV1T08GC353.TR
₹130.80 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LV
- Input Logic Level - Low
- 580mV;750mV;800mV
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - High
- 940mV;1.135V;1.35V;2.02V
- Output Logic Level - High
- 4.6V;4.2V;2.9V;2.78V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Propagation Delay
- 5.4ns@5V,30pF
- Output Logic Level - Low
- 200mV;300mV;150mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | Aip74LVC1G08GC.TR#C5138997Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 300 | ₹12.49 · 300 in stock | View |
 | AiP74LVC1G08GC353.TR#C3002790Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 920 | ₹12.99 · 920 in stock | View |
