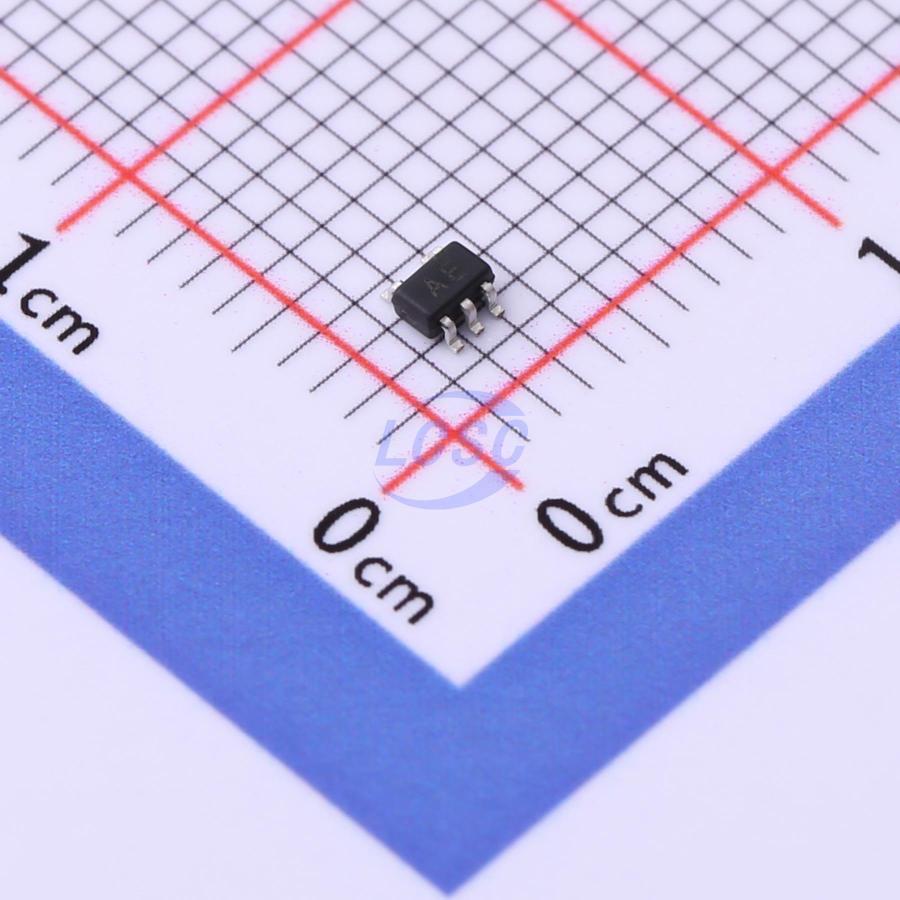

AiP74LVC1G08GC353.TR
Schmitt trigger 1.65V~5.5V 2.1ns@3.3V,50pF 4uA SOT-353 Gates and Inverters
SOT-353RoHSActive
Single 2-input And Gate
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC1G08GC353.TR
- Store part #
- C3002790
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C3002790
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.99 | ₹129.90 |
| 100+ | ₹10.05 | ₹1,005.00 |
| 300+ | ₹8.57 | ₹2,571.00 |
| 3,000+ | ₹7.47 | ₹22,410.00 |
| 6,000+ | ₹6.59 | ₹39,540.00 |
| 9,000+ | ₹6.15 | ₹55,350.00 |
10 × ₹12.99
₹129.90
excl. GST
₹153.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC1G08GC353.TR
₹129.90 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 2.1ns@3.3V,50pF
- Output Logic Level - Low
- 550mV
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
The AiP74LVC1G08 provides one 2-input AND function. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V applications. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Input accepts voltages up to 5V
- Specified from -40°C to +105°C
- Packaging information: SOT-23-5/SOT-353
