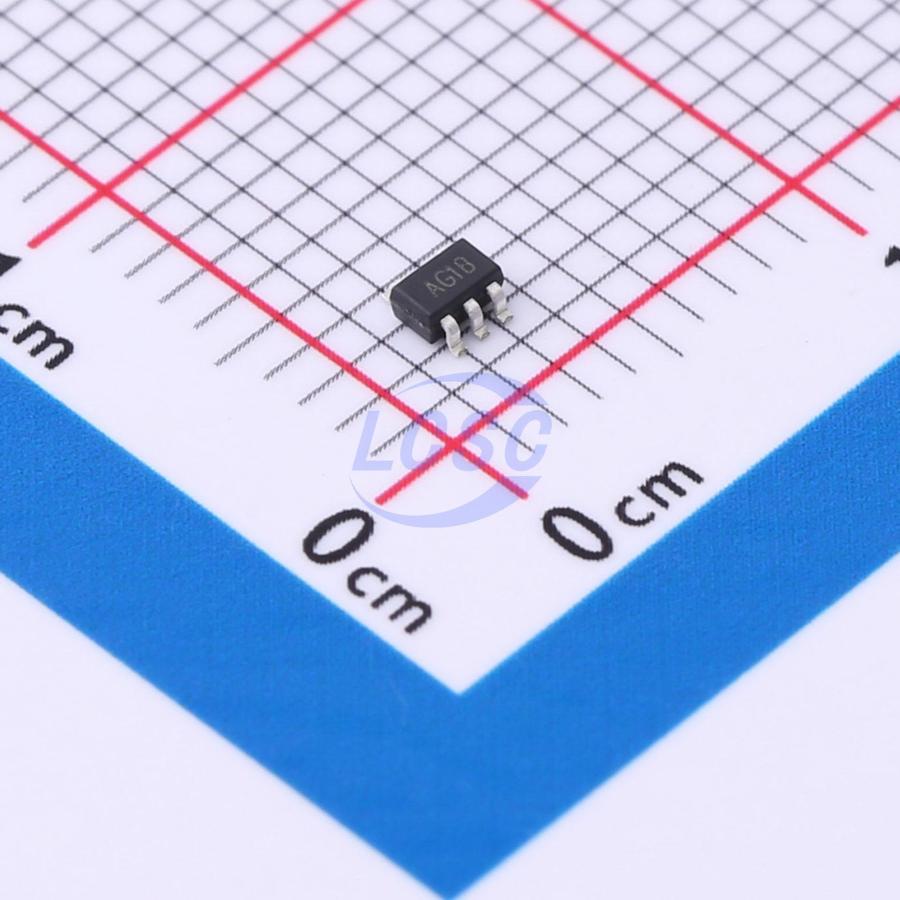

AIP74LVC1G126GC353.TR
Buffer Driver Tri-State Output SOT-353
SOT-353RoHSActive
Single-channel buffer/line driver with three-state control
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP74LVC1G126GC353.TR
- Store part #
- C4945067
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C4945067
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹13.11 | ₹131.10 |
| 100+ | ₹10.13 | ₹1,013.00 |
| 300+ | ₹8.65 | ₹2,595.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹6.64 | ₹39,840.00 |
| 9,000+ | ₹6.19 | ₹55,710.00 |
10 × ₹13.11
₹131.10
excl. GST
₹154.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AIP74LVC1G126GC353.TR
₹131.10 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 1.7ns@4.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
AiP74LVC1G126 is a buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input (OE); when pin (OE) is low, the output is placed in a high-impedance state. The input can be driven by 3.3V or 5V signals. These features allow the device to be used in mixed 3.3V/5V environments. In power-off application mode, the circuit utilizes I_OFF current; the I_OFF circuitry prevents backflow current from damaging the circuit.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- ±24 mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Direct TTL-level interface
- Inputs tolerant up to 5V
- Operating temperature range: -40℃ ~ +105℃
- Package: SOT-23-5/SOT-353
