Wuxi I-core ElecDatasheet (PDF)

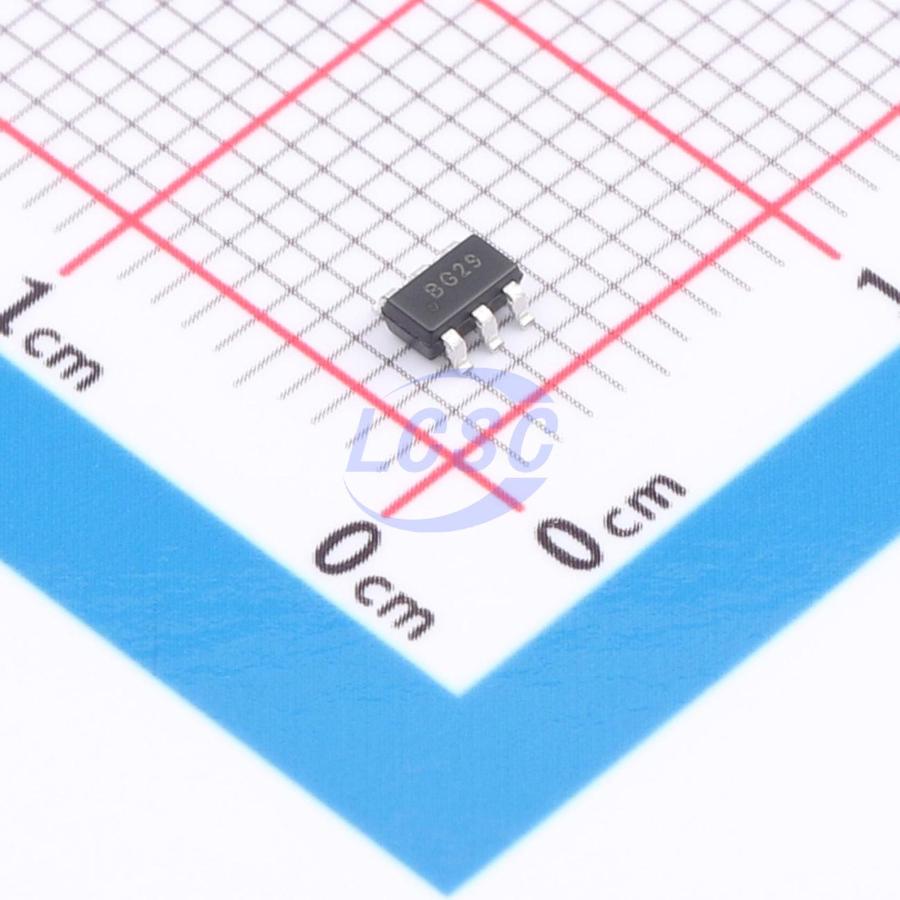

AiP74LVC2G07GB236.TR
1.65V~5.5V 2 2 10ns@5.5V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC2G07GB236.TR
- Store part #
- C49256291
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C49256291
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.23 | ₹102.30 |
| 100+ | ₹7.90 | ₹790.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 3,000+ | ₹5.87 | ₹17,610.00 |
| 6,000+ | ₹5.19 | ₹31,140.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹10.23
₹102.30
excl. GST
₹120.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC2G07GB236.TR
₹102.30 for 10 + GST
Specifications
- Function
- Level shifting
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Output Type
- Open-drain
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 10ns@5.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The AiP74LVC2G07 provides two non-inverting buffers. The device outputs are open-drain, which can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- 5V-tolerant inputs for easy 5V logic interfacing
- 24mA output drive capability (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40°C ~ +125°C
- Package options: SOT-23-6, SOT-363, XSON6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AiP74LVC2G16GB236.TR#C52121052Wuxi I-core Elec · SOT-23-6 | Wuxi I-core Elec | SOT-23-6 | 2,945 | ₹14.42 · 2,945 in stock | View | |
