Wuxi I-core Elec

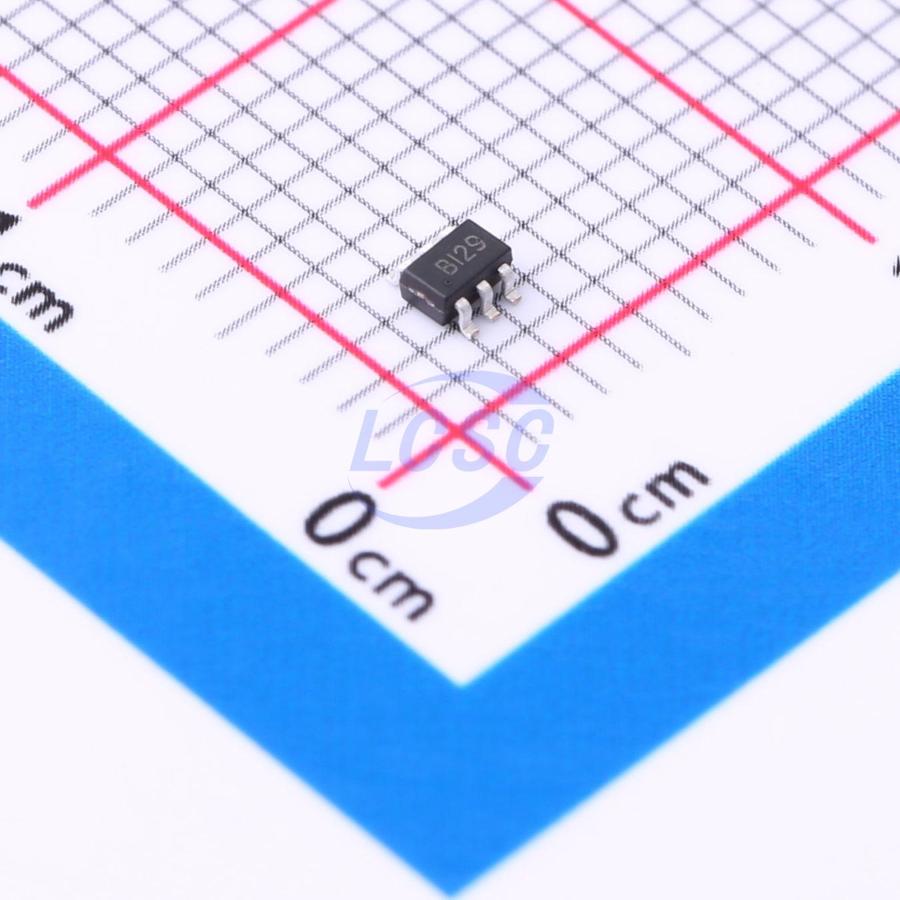

AIP74LVC2G17GC363.TR

Schmitt trigger 1.65V~5.5V 1 2 3.6ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers

SOT-363RoHSActive

Dual Buffer Schmitt Trigger

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74LVC2G17GC363.TR
Store part #: C3294722
Package / case: SOT-363
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,990 in stock

#C3294722

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹19.12	₹191.20
100+	₹14.78	₹1,478.00
300+	₹12.61	₹3,783.00
3,000+	₹10.98	₹32,940.00
6,000+	₹9.68	₹58,080.00
9,000+	₹9.04	₹81,360.00

Quantity (min 10, multiples of 10)

10 × ₹19.12

₹191.20

excl. GST

₹225.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AIP74LVC2G17GC363.TR

₹191.20 for 10 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+105℃
Quiescent Supply Current: 4uA
Function: Level shifting;Power-off isolation
Current - Output High(IOH): 24mA
Series: 74LVC
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 3.6ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.048 g

Overview

The AiP74LVC2G17 provides two non-inverting buffers with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The I(OFF) circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
