Wuxi I-core Elec

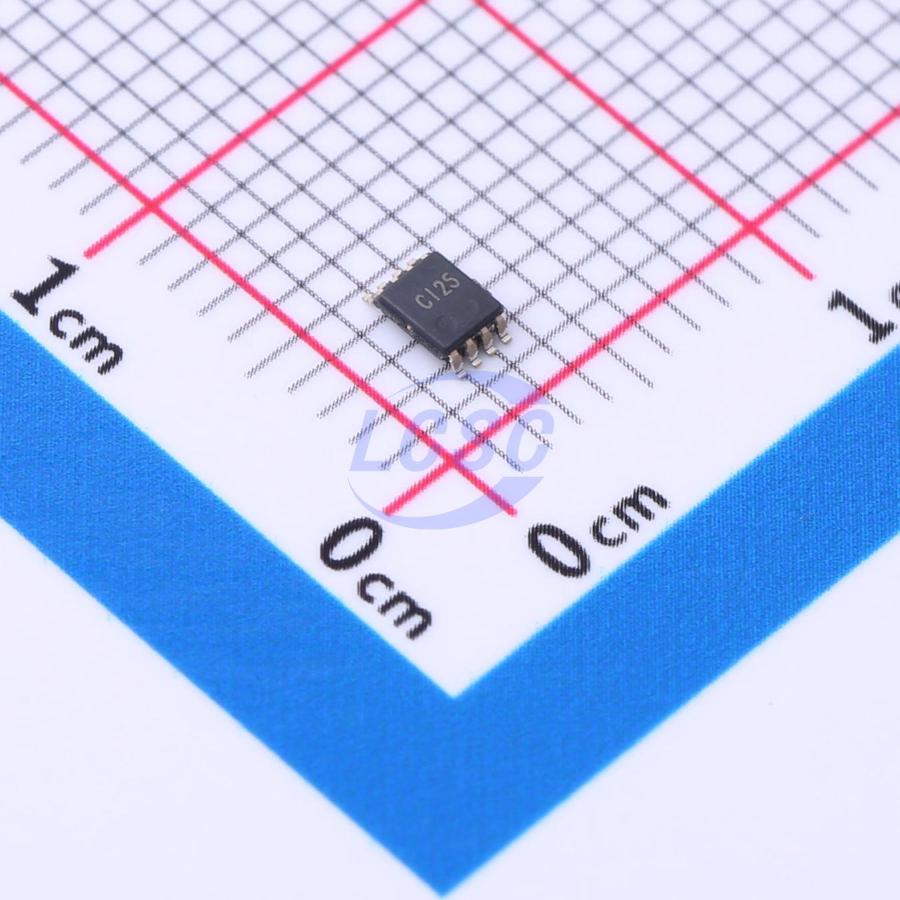

AiP74LVC2T45YA8.TR

1.2V~5.5V 2 1 5.3ns@3.3V,50pF VSSOP-8 Buffers, Drivers, Receivers, Transceivers

VSSOP-8RoHSActive

2-bit Dual Supply Translating Transceiver; 3-State

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74LVC2T45YA8.TR
Store part #: C5183396
Package / case: VSSOP-8
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C5183396

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹56.88	₹284.40
50+	₹43.84	₹2,192.00
150+	₹38.21	₹5,731.50
500+	₹31.26	₹15,630.00
3,000+	₹28.01	₹84,030.00
6,000+	₹26.05	₹1,56,300.00

Quantity (min 5, multiples of 5)

5 × ₹56.88

₹284.40

excl. GST

₹335.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP74LVC2T45YA8.TR

₹284.40 for 5 + GST

Specifications

Voltage - Supply: 1.2V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+105℃
Quiescent Supply Current: 16uA
Function: Level shifting;Power-off isolation;Bus hold
Current - Output High(IOH): 24mA
Series: 74LVC
Current - Output Low(IOL): 24mA
Number of Bits per Element: 2
Channel Type: Bidirectional
Number of Elements: 1
Propagation Delay: 5.3ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g

Overview

The AiP74LVC2T45; AiP74LVCH2T45 are dual bit, dual supply translating transceivers with 3- state outputs that enable bidirectional level translation. They feature two 2- bits input- output ports(nA and nB), a direction control input (DIR) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 1.2V and 5.5V making the device suitable for translating between any of the low voltage nodes (1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5.0V). Pins nA and DIR are referenced to VCC(A) and pins nB are referenced to VCC(B). A HIGH on DIR allows transmission from nA to nB and a LOW on DIR allows transmission from nB to nA. The devices are fully specified for partial power- down applications using I_OFF. The I_OFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either VCC(A) or VCC(B) are at GND level, both A port and B port are in the high- impedance OFF- state. Active bus hold circuitry in the AiP74LVCH2T45 holds unused or floating data inputs at a valid logic level.

Key features

Wide supply voltage range: VCC(A): 1.2V to 5.5V VCC(B): 1.2V to 5.5V
Maximum data rates: 420 Mbps (3.3V to 5.0V translation) 210 Mbps (translate to 3.3V) 140 Mbps (translate to 2.5V) 75 Mbps (translate to 1.8V) 60 Mbps (translate to 1.5V)
Suspend mode
±24mA output drive (VCC = 3.0V)
Inputs accept voltages up to 5.5V
Low power consumption: 16uA maximum ICC
I_OFF circuitry provides partial Power-down mode operation
Specified from -40°C to +105°C
Packaging information: VSSOP8/TSSOP8
