Wuxi I-core Elec

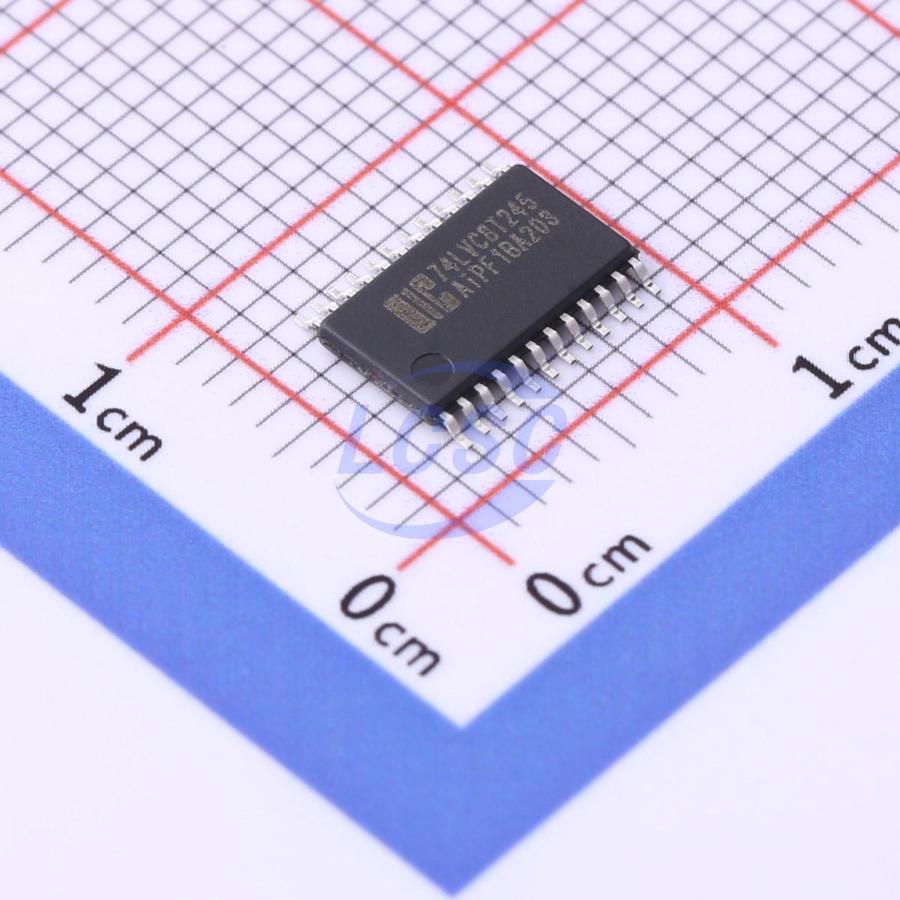

AiP74LVC8T245TA24.TR

Transceiver Tri-State Output TSSOP-24

TSSOP-24RoHSActive

8-channel bus transceiver with dual power supplies and three-state control

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74LVC8T245TA24.TR
Store part #: C4945079
Package / case: TSSOP-24
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,304 in stock

#C4945079

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹85.36	₹85.36
10+	₹65.59	₹655.90
30+	₹57.34	₹1,720.20
100+	₹46.70	₹4,670.00
500+	₹41.93	₹20,965.00
1,000+	₹39.09	₹39,090.00

Quantity (min 1)

1 × ₹85.36

₹85.36

excl. GST

₹100.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AiP74LVC8T245TA24.TR

₹85.36 for 1 + GST

Specifications

Voltage - Supply: 1.2V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+105℃
Quiescent Supply Current: 25uA
Function: Level shifting;Power-off isolation;Output enable;Bus hold
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 8
Channel Type: Bidirectional
Number of Elements: 1
Propagation Delay: 5.4ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.27 g

Overview

AiP74LVC/LVCH8T245 is an 8-bit dual-supply translating transceiver with 3-state outputs, supporting bidirectional voltage-level translation. The device features two sets of data input/output ports (pins An and Bn), a direction control input (DIR), an output enable input (OE), and dual supply rails (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can operate at any voltage from 1.2V to 5.5V, making the device suitable for translation between various low-voltage nodes such as 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. Port An, OE, and DIR are powered by VCC(A), while port Bn is powered by VCC(B). When DIR is HIGH, data is transmitted from An to Bn; when DIR is LOW, data is transmitted from Bn to An. The OE input can be used to disable the outputs for effective bus isolation. The IOFF circuit makes the device fully suitable for applications with partial power-down capability by disabling the outputs and preventing any damaging backflow current through the device during power-off conditions. In suspend mode, when VCC(A) or VCC(B) is at GND level, both port A and port B are in a high-impedance state. The AiP74LVCH8T245 variant incorporates a bus-hold circuit that maintains unused or floating inputs at a valid logic level.

Key features

Supply voltage range: VCC(A): 1.2V ~ 5.5V; VCC(B): 1.2V ~ 5.5V
Maximum data transfer rate: 420Mbps (3.3V ~ 5.0V translation), 210Mbps (translation to 3.3V), 140Mbps (translation to 2.5V), 75Mbps (translation to 1.8V), 60Mbps (translation to 1.5V)
Supports suspend mode
±24mA output drive capability (VCC = 3.0V)
Inputs tolerant up to 5.5V
Low power consumption: maximum ICC of 30uA
IOFF circuitry supports partial power-down operation
Operating temperature range: -40℃ ~ +125℃
Package: TSSOP24/DHVQFN24
