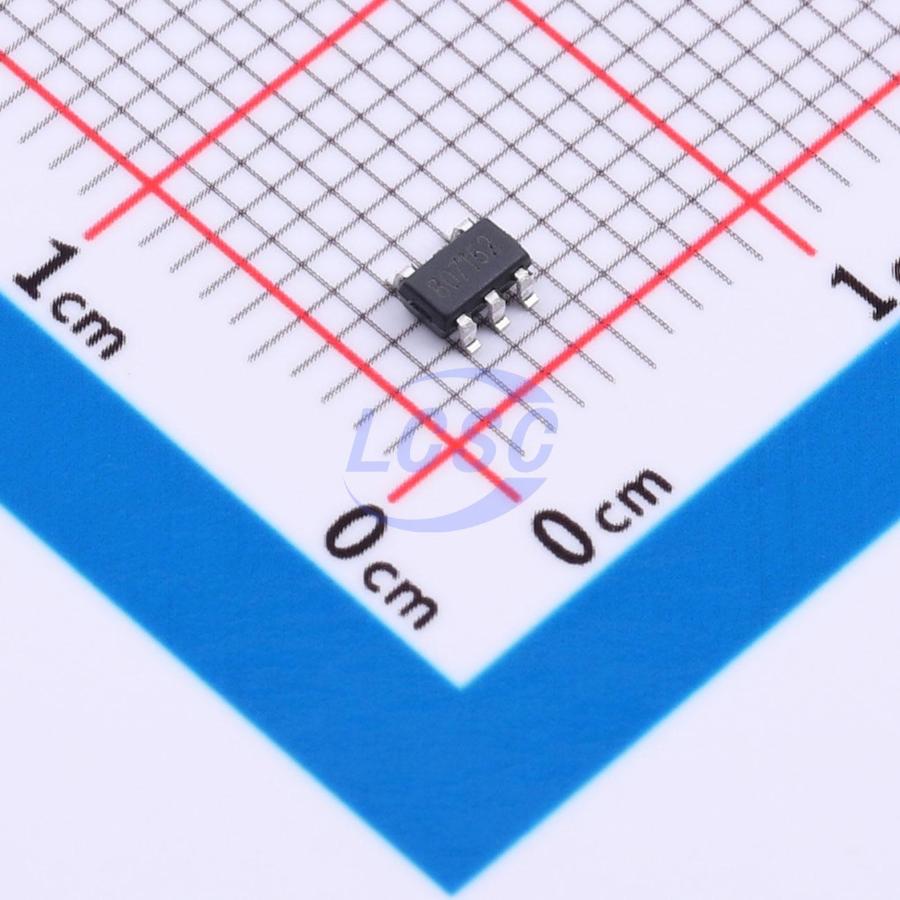

Wuxi I-core Elec

AiP8071GB235.TR

105mA 1 5mV 115V/us 95dB 20pA 2.9mA 62MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP8071GB235.TR
Store part #: C52953052
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,875 in stock

#C52953052

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
5+	₹48.45	₹242.25
50+	₹38.27	₹1,913.50
150+	₹33.91	₹5,086.50
500+	₹28.47	₹14,235.00
3,000+	₹26.05	₹78,150.00
6,000+	₹24.59	₹1,47,540.00

Quantity (min 5, multiples of 5)

5 × ₹48.45

₹242.25

excl. GST

₹285.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP8071GB235.TR

₹242.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 105mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 115V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 12uV/℃
Quiescent Current: 2.9mA
Gain Bandwidth Product: 62MHz
Input Voltage Noise Density: 115nV/√Hz@1kHz
Dual Supply: -6V~-1.75V;1.75V~6V
Rail to Rail: Rail-to-rail output
Single Supply: 3.5V~12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.155 g

Overview

The AiP807X series are 100MHz high-voltage rail-to-rail output op-amps, including the single-channel AiP8071, dual-channel AiP8072, and quad-channel AiP8074. These devices are suitable for applications such as active filters, ADC interfaces, portable video, digital cameras, and set-top boxes.

Applications

Active filters
ADC interface
Portable video
Digital cameras
Set-top boxes

Key features

Small-signal bandwidth: 100MHz
Gain bandwidth product: 62MHz
Slew rate: 115V/μs
Noise: 115nV/√Hz (@1kHz)
Input common-mode range: VSN-0.1V ~ VSP-2V
Quiescent current/amplifier: 2.9mA
Supply voltage range: 3.5V ~ 12V
Temperature range: -40℃ ~ 125℃
Substrate connected to VSN (for die)
Package: AiP8071 in SOT23-5/SOP8/MSOP8; AiP8072 in SOP8/MSOP8; AiP8074 in SOP14/TSSOP14
