Wuxi I-core ElecDatasheet (PDF)

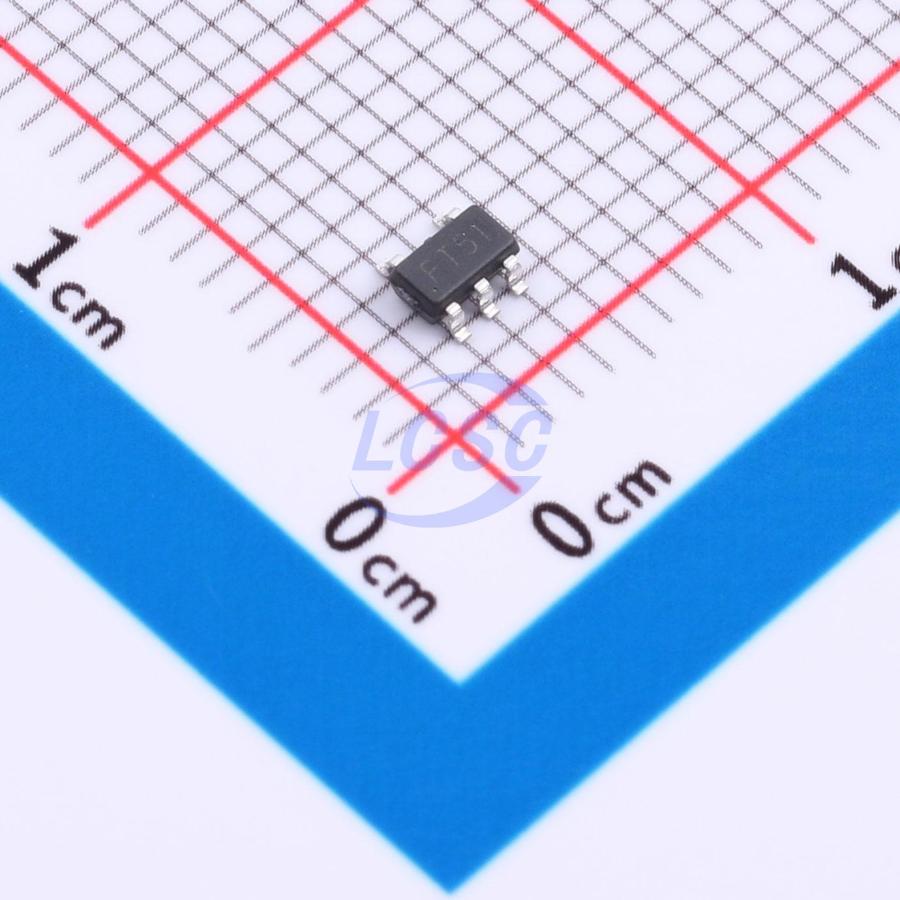

AiP8180A3GB235.TR
8mA 1 -200mV~30V 6V/us 100dB 175uA 100V/V SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP8180A3GB235.TR
- Store part #
- C52953040
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C52953040
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.27 | ₹226.35 |
| 50+ | ₹35.76 | ₹1,788.00 |
| 150+ | ₹31.69 | ₹4,753.50 |
| 500+ | ₹26.61 | ₹13,305.00 |
| 3,000+ | ₹24.34 | ₹73,020.00 |
| 6,000+ | ₹22.98 | ₹1,37,880.00 |
5 × ₹45.27
₹226.35
excl. GST
₹267.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP8180A3GB235.TR
₹226.35 for 5 + GST
Specifications
- Output Current
- 8mA
- Number of Channels
- 1
- Vcm - Common Mode Voltage
- -200mV~30V
- Vos - Input Offset Voltage
- 150uV;500uV
- Slew Rate
- 6V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 6uA;75uA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- -3dB Bandwidth
- 150kHz
- Quiescent Current
- 175uA
- Gain
- 100V/V
- Features
- Zero drift / auto-zero;Bidirectional detection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Differential Voltage
- ±30V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
Overview
AiP8181 and AiP8180 are wide-bandwidth, zero-drift, bidirectional current-sense amplifiers. The devices sense the voltage drop across a shunt resistor over a common-mode voltage range of -0.2V to 30V. An integrated matched resistor gain network provides four fixed gain options: 20 V/V, 50 V/V, 100 V/V, and 200 V/V. The devices operate from a single 2.7V to 5.5V supply with a maximum supply current of 260μA.
Applications
- Battery monitoring
- Power management
- Overcurrent detection
Key features
- Rail-to-rail output
- Offset voltage: ±150μV (max), VCM=0V; ±500μV (max), VCM=12V
- Gain error: ±1% (max)
- Offset drift: 1μV/℃ (max)
- Gain drift: 20ppm/℃ (max)
- Output voltage gain: 20V/V, 50V/V, 100V/V, 200V/V
- High bandwidth: 350kHz
- Package: SOT23-6 (AiP8181), SOT23-5 (AiP8180)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP8180B3GB235.TR#C52953043Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 90 | ₹43.91 · 90 in stock | View |
