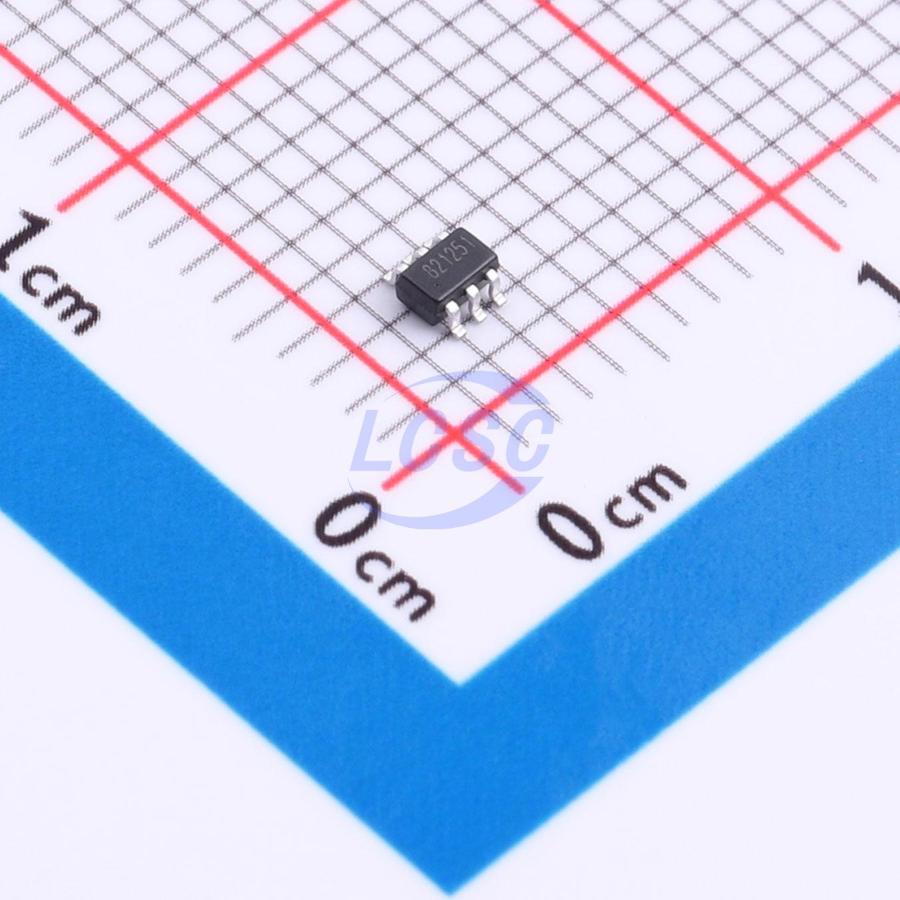

Wuxi I-core ElecDatasheet (PDF)
AiP8212GC363.TR
1 -200mV~30V 200uV 0.45V/us 110dB 35uA 110uA 1000V/V SOT-363 Instrumentation, Op Amps, Buffer Amps
SOT-363RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP8212GC363.TR
- Store part #
- C52994664
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C52994664
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.31 | ₹246.55 |
| 50+ | ₹38.80 | ₹1,940.00 |
| 150+ | ₹34.31 | ₹5,146.50 |
| 500+ | ₹28.68 | ₹14,340.00 |
| 3,000+ | ₹26.18 | ₹78,540.00 |
| 6,000+ | ₹24.69 | ₹1,48,140.00 |
5 × ₹49.31
₹246.55
excl. GST
₹290.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP8212GC363.TR
₹246.55 for 5 + GST
Specifications
- Number of Channels
- 1
- Vcm - Common Mode Voltage
- -200mV~30V
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 0.45V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 35uA
- -3dB Bandwidth
- 4kHz
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
- Quiescent Current
- 110uA
- Gain
- 1000V/V
- Features
- Zero drift / auto-zero;Bidirectional detection;Programmable output reference level
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Differential Voltage
- ±3.5V
- Single Supply
- 2.7V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
The AiP821X is a zero-drift, bidirectional current sense amplifier powered by a 2.7V to 30V single supply, capable of sensing the voltage drop across a shunt resistor at common-mode voltages from -0.2V to 30V. The series offers six fixed gain options: 50V/V, 75V/V, 100V/V, 200V/V, 500V/V, and 1000V/V, utilizing a zero-drift architecture with low offset voltage. Under typical conditions, the quiescent current consumption is 110µA.
Key features
- Maximum input offset voltage: ±200µV
- Input common-mode voltage range: -0.2V ~ 30V
- Supply voltage range: 2.7V ~ 30V
- Maximum gain error over full temperature range: ±1%
- Maximum offset voltage drift: 0.5µV/℃
- Maximum gain drift: 10ppm/℃
- Fixed gain options: AiP8210 (200V/V), AiP8211 (500V/V), AiP8212 (1000V/V), AiP8213 (50V/V), AiP8214 (100V/V), AiP8215 (75V/V)
- Typical quiescent current: 110µA
- Rail-to-rail output
- Operating temperature range: -40℃ ~ 125℃
- Package: SOT363
- ESD rating: 4KV HBM
