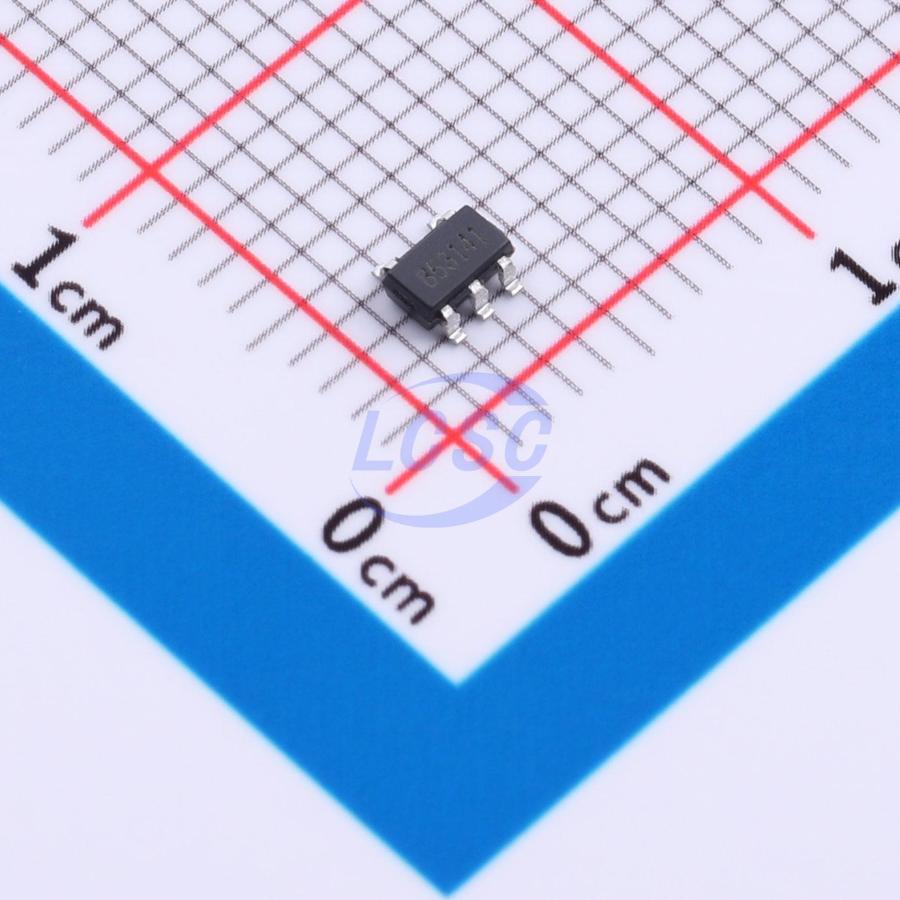

AiP8531GB235.TR

60mA 1 1uV 0.13V/us 130dB 100pA 40uA 300kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP8531GB235.TR
Store part #: C52953054
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C52953054

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹58.45	₹58.45
10+	₹46.29	₹462.90
30+	₹41.08	₹1,232.40
100+	₹34.33	₹3,433.00
500+	₹31.51	₹15,755.00
1,000+	₹29.77	₹29,770.00

Quantity (min 1)

1 × ₹58.45

₹58.45

excl. GST

₹68.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP8531GB235.TR

₹58.45 for 1 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 1uV
Slew Rate: 0.13V/us
Input Offset Current(Ios): 200pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 8nV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 300kHz
Features: Zero drift / auto-zero
Input Voltage Noise Density: 55nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.155 g

Overview

The AiP853X series are rail-to-rail input/output operational amplifiers utilizing chopper modulation technology, featuring ultra-low offset, zero drift, and low noise characteristics. These devices operate from a 2.4V~5V single supply or ±1.2V~±2.5V dual supply. The AiP8533 and AiP8539 include an enable pin for low-power standby mode.
