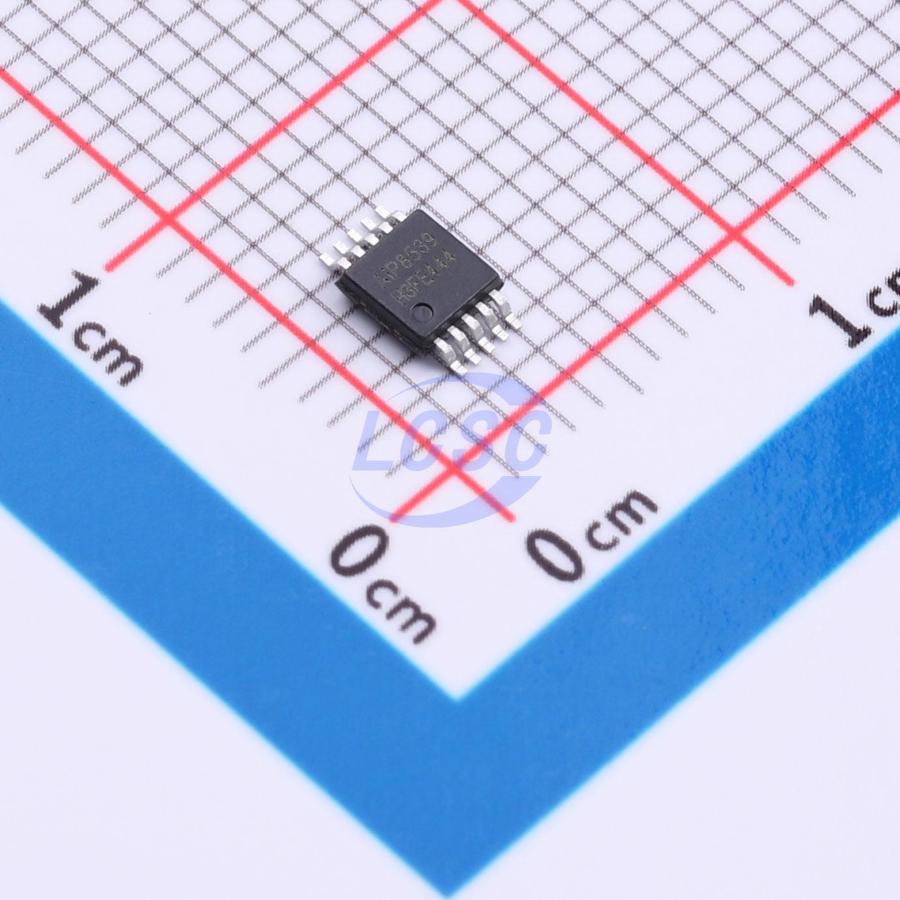

AiP8539MA10.TR

60mA 1uV 0.13V/us 130dB 100pA 300kHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-10 Instrumentation, Op Amps, Buffer Amps

MSOP-10RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP8539MA10.TR
Store part #: C52953062
Package / case: MSOP-10
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,000 in stock

#C52953062

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹74.86	₹74.86
10+	₹60.06	₹600.60
30+	₹52.88	₹1,586.40
100+	₹45.48	₹4,548.00
500+	₹41.13	₹20,565.00
1,000+	₹38.95	₹38,950.00

Quantity (min 1)

1 × ₹74.86

₹74.86

excl. GST

₹88.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

AiP8539MA10.TR

₹74.86 for 1 + GST

Specifications

Output Current: 60mA
Vos - Input Offset Voltage: 1uV
Slew Rate: 0.13V/us
Input Offset Current(Ios): 200pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 8nV/℃
Gain Bandwidth Product: 300kHz
Features: Enable/shutdown function;Zero drift / auto-zero
Input Voltage Noise Density: 55nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The AiP853X series are rail-to-rail input/output operational amplifiers utilizing chopper modulation technology, featuring ultra-low offset, zero drift, and low noise characteristics. These devices operate from a 2.4V~5V single supply or ±1.2V~±2.5V dual supply. The AiP8533 and AiP8539 include an enable pin for low-power standby mode.
