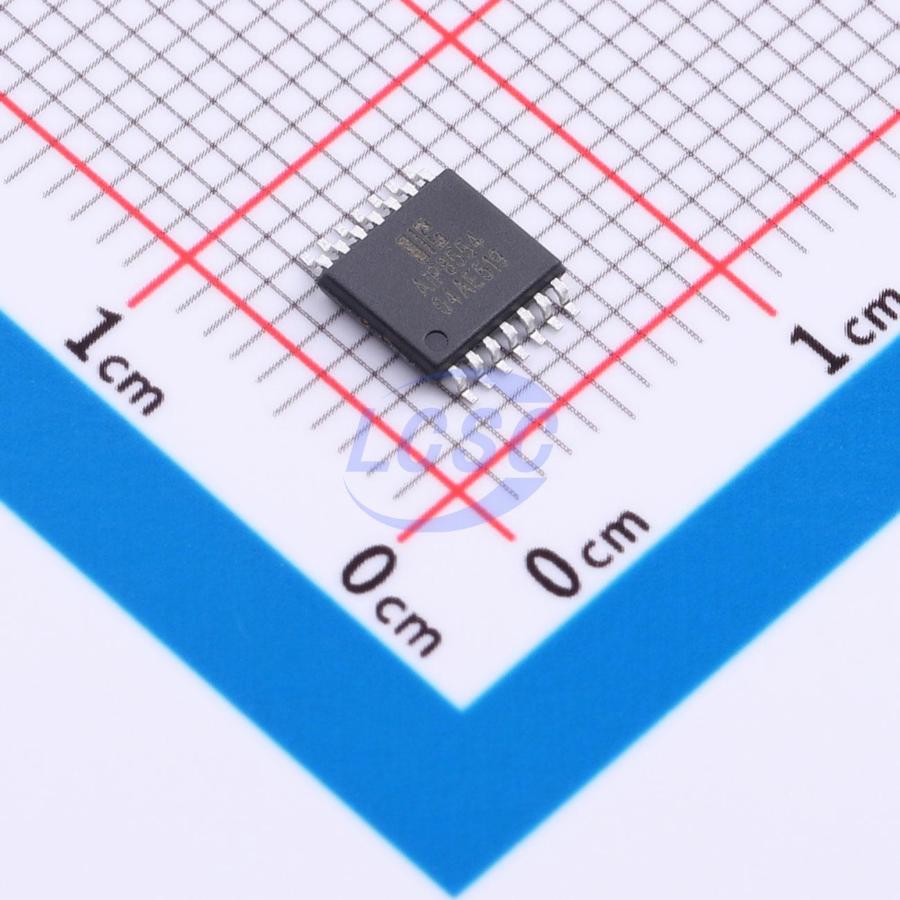

AiP8554TA14.TR

50mA 4 1uV 2.3V/us 400pA 120dB 3.5MHz 450uA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP8554TA14.TR
Store part #: C52953065
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,010 in stock

#C52953065

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹85.19	₹85.19
10+	₹68.68	₹686.80
30+	₹60.42	₹1,812.60
100+	₹52.38	₹5,238.00
500+	₹47.38	₹23,690.00
1,000+	₹44.98	₹44,980.00

Quantity (min 1)

1 × ₹85.19

₹85.19

excl. GST

₹100.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

AiP8554TA14.TR

₹85.19 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 4
Vos - Input Offset Voltage: 1uV
Slew Rate: 2.3V/us
Input Offset Current(Ios): 200pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 400pA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 8nV/℃
Gain Bandwidth Product: 3.5MHz
Quiescent Current: 450uA
Features: Zero drift / auto-zero
Input Voltage Noise Density: 15nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.225 g

Overview

The AiP855X series are rail-to-rail input/output, chopper-stabilized amplifiers featuring ultra-low offset, zero-drift, and low-noise characteristics. They operate from a 2.4V~5V single supply (±1.2V~±2.5V dual supply). The AiP8553 and AiP8559 are enable-pin variants that support a low-power standby mode.
