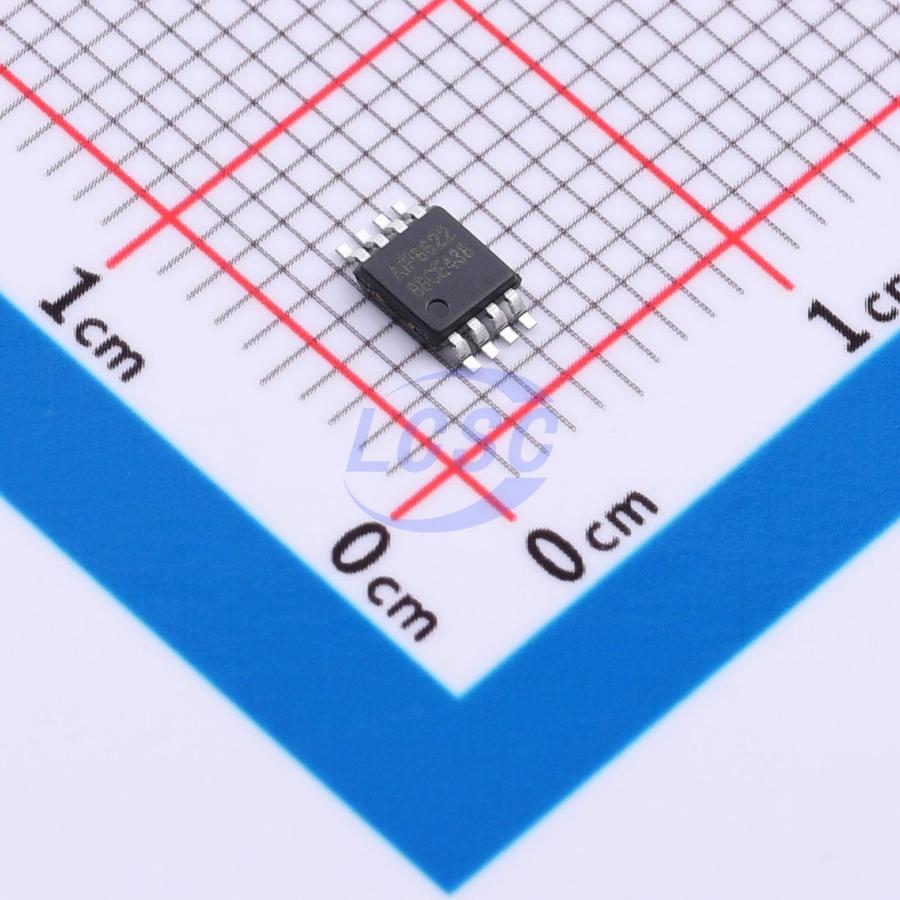

AiP8622MA8.TR

23mA 2 400uV 1.6V/ms 1pA 85dB 5kHz 290nA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP8622MA8.TR
Store part #: C52953069
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,935 in stock

#C52953069

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹36.32	₹181.60
50+	₹28.43	₹1,421.50
150+	₹25.06	₹3,759.00
500+	₹20.84	₹10,420.00
2,500+	₹18.96	₹47,400.00
5,000+	₹17.83	₹89,150.00

Quantity (min 5, multiples of 5)

5 × ₹36.32

₹181.60

excl. GST

₹214.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

AiP8622MA8.TR

₹181.60 for 5 + GST

Specifications

Output Current: 23mA
Number of Channels: 2
Vos - Input Offset Voltage: 400uV
Slew Rate: 1.6V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 85dB
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Gain Bandwidth Product: 5kHz
Quiescent Current: 290nA
Features: Built-in compensation
Input Voltage Noise Density: 342nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.185 g

Overview

The AiP8621/AiP8622/AiP8623/AiP8624 series are micropower rail-to-rail input/output operational amplifiers. The AiP8621, AiP8622, and AiP8624 are single-channel, dual-channel, and quad-channel op-amps respectively without shutdown control pins, while the AiP8623 is a single-channel op-amp with a shutdown control pin. The amplifiers feature a gain-bandwidth product of 5kHz and are unity-gain stable, making them suitable for low-frequency applications such as battery current sensing and sensor conditioning. The supply voltage operating range is 1.4V to 5.5V, with an operating temperature range of -40℃ to 125℃.

Key features

Open-loop voltage gain: 100dB
Gain bandwidth product: 5kHz
Slew rate: 1.6V/ms
Offset voltage: ≤2.5mV
Noise: 342nV/√Hz
Output short-circuit current: >21mA
Input bias current: 1pA
Input common-mode range: VSS-0.1V~VCC+0.1V
Supply voltage range: 1.4V~5.5V
Temperature range: -40℃~125℃
Package: AiP8621: SOT23-5/SOP8/MSOP8/DIP8; AiP8622: MSOP8/SOP8/DFN8/DIP8; AiP8623: SOT23-6/SOP8/MSOP8/DIP8; AiP8624: SOP14/TSSOP14/QFN16/DIP14
