DIODESDatasheet (PDF)

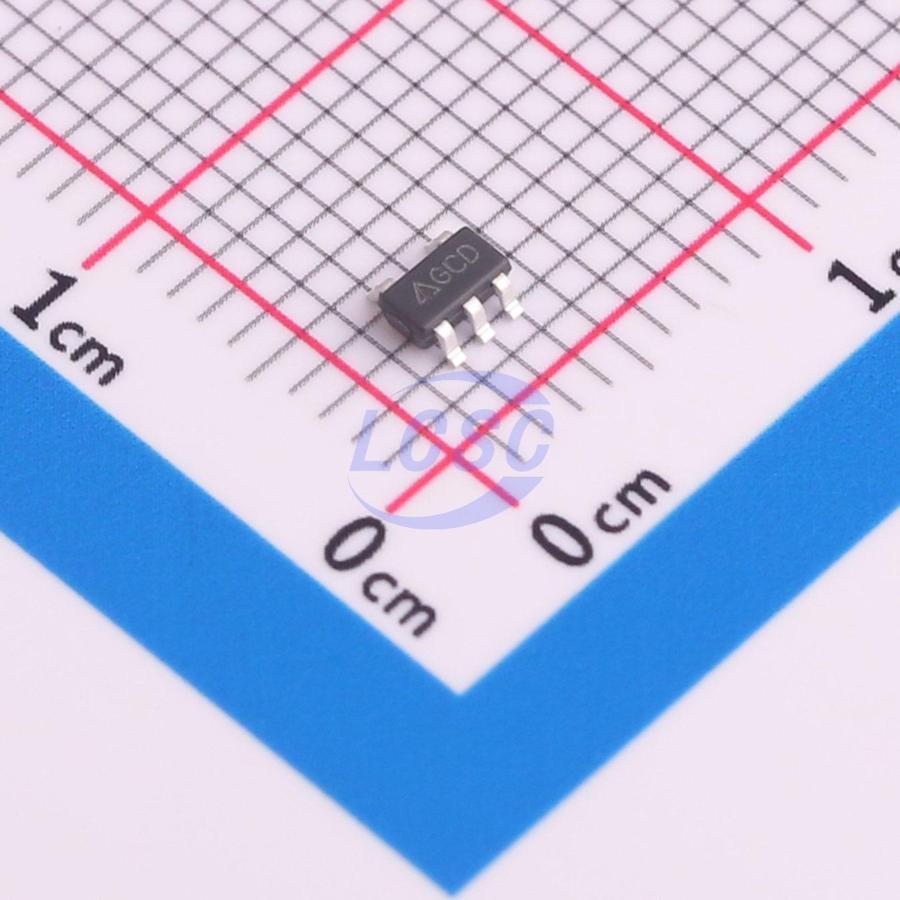

AP2125K-2.5TRG1
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA, HIGH SPEED, EXTREMELY LOW NOISE CMOS LDO REGULATOR
- Manufacturer
- DIODES
- Manufacturer part #
- AP2125K-2.5TRG1
- Store part #
- C176951
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C176951
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.33 | ₹96.65 |
| 50+ | ₹15.66 | ₹783.00 |
| 150+ | ₹13.84 | ₹2,076.00 |
| 500+ | ₹12.46 | ₹6,230.00 |
| 3,000+ | ₹11.36 | ₹34,080.00 |
| 6,000+ | ₹10.82 | ₹64,920.00 |
5 × ₹19.33
₹96.65
excl. GST
₹114.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2125K-2.5TRG1
₹96.65 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The AP2125 series are 300mA, positive voltage regulator ICs fabricated by CMOS process. Each of these ICs is equipped with a voltage reference, an error amplifier, a resistor network for setting output voltage, a chip enable circuit, a current limit circuit and OTSD (over temperature shut down) circuit to prevent the IC from over current and over temperature. The AP2125 series have features of high ripple rejection, low dropout voltage, low noise, high output voltage accuracy and low current consumption which make them ideal for use in various battery-powered apparatus. The AP2125 have 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.15V and 4.2V fixed voltage versions. These ICs are available in tiny SC-70-5 packages as well as industry standard SOT-23-3 and SOT-23-5 packages.
Applications
- CDMA/GSM Cellular Handsets
- Battery-powered Equipments
- Laptops, Palmtops, Notebook Computers
- Hand-held Instruments
- PCMCIA Cards Portable Information Appliances
Key features
- Excellent Ripple Rejection: 70dB Typical (1.8V Version)
- Low Dropout Voltage: 65mV (Iout = 100mA, 3.3V Version)
- Low Standby Current: 0.01μA Typical
- Low Quiescent Current: 60μA Typical
- Extremely Low Noise: 50μVrms Typical
- Maximum Output Current: 300mA (Min.)
- High Output Voltage Accuracy: ±2%
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2112K-2.5TRG1#C176945DIODES · SOT-25 | DIODES | SOT-25 | 2,885 | ₹25.80 · 2,885 in stock | View |
 | TPRT9013-25GB#C2827656TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,040 | ₹11.06 · 1,040 in stock | View |
 | RT9013-25GB-JSM#C39846926JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 71,630 | ₹6.89 · 71,630 in stock | View |
 | AP2127K-2.5TRG1#C460326DIODES · SOT-23-5 | DIODES | SOT-23-5 | 2,040 | ₹19.26 · 2,040 in stock | View |
 | HLP5907MFX-2.5/NOPB#C22392695HXY MOSFET · SOT-23-5L | HXY MOSFET | SOT-23-5L | 65 | ₹13.57 · 65 in stock | View |
