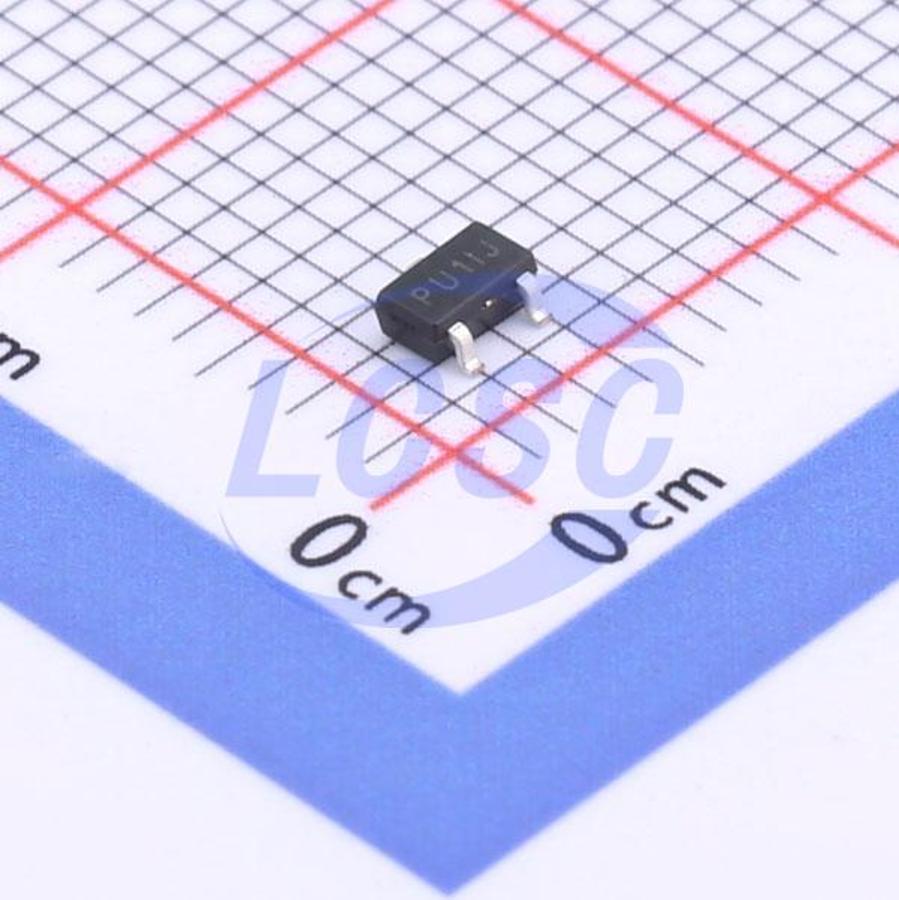

AP2138N-2.5TRG1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3ROHS3 CompliantActive
Ultra-low quiescent current CMOS LDO
- Manufacturer
- DIODES
- Manufacturer part #
- AP2138N-2.5TRG1
- Store part #
- C460334
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,655 in stock
#C460334
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.85 | ₹79.25 |
| 50+ | ₹14.41 | ₹720.50 |
| 150+ | ₹13.68 | ₹2,052.00 |
| 500+ | ₹13.14 | ₹6,570.00 |
| 3,000+ | ₹12.71 | ₹38,130.00 |
| 6,000+ | ₹12.49 | ₹74,940.00 |
5 × ₹15.85
₹79.25
excl. GST
₹93.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2138N-2.5TRG1
₹79.25 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Battery Powered Equipment
- Reference Voltage Sources
- Cameras, Video Cameras
- Portable AV Systems
- Mobile Phones
- Communication Tools
- Portable Games
Key features
- Ultra-Low Quiescent Current: 1.0μA
- Typical Output Voltages: 1.2V, 1.4V, 1.5V, 1.8V, 2.1V, 2.2V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V and 4.0V
- High Output Voltage Accuracy: ±2%
- Output Current: 250mA
- Low Dropout Voltage:
- 25mV Typical at Iout = 10mA and VOUT = 3V
- 200mV Typical at Iout = 100mA and VOUT = 3V
- Line Regulation: 6mV Typical
- Load Regulation: 25mV Typical
- Low Output Voltage Temperature Coefficient: ±100ppm/°C
- Low Standby Current: 0.1μA Typical (AP2139)
- Active Quick Output Discharge (AP2139)
- Logic-Controlled Enable (AP2139)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H7605-25MR#C45359460Siproin · SOT-23-3 | Siproin | SOT-23-3 | 2,310 | ₹8.71 · 2,310 in stock | View |
 | MD85E25QA3#C2978402Mingda Microelectronics · SOT-23-3L | Mingda Microelectronics | SOT-23-3L | 20 | ₹19.57 · 20 in stock | View |
 | MD5325-1#C920565Mingda Microelectronics · SOT-23-3L | Mingda Microelectronics | SOT-23-3L | 2,555 | ₹15.56 · 2,555 in stock | View |
 | S-1206B25-M3T1U#C155182ABLIC · SOT-23-3 | ABLIC | SOT-23-3 | 875 | ₹28.87 · 875 in stock | View |
 | H7225-1#C277855Siproin · SOT-23-3 | Siproin | SOT-23-3 | 2,050 | ₹14.65 · 2,050 in stock | View |
