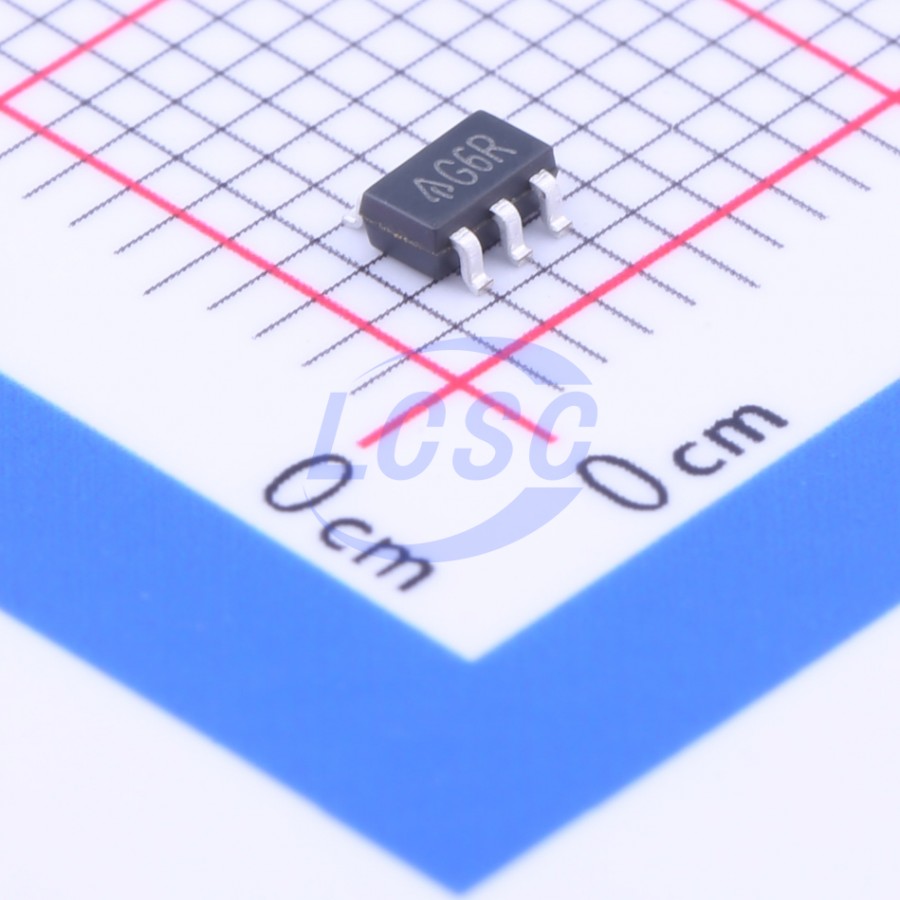

AP2139AK-3.3TRG1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
Ultra-low quiescent current CMOS LDO
- Manufacturer
- DIODES
- Manufacturer part #
- AP2139AK-3.3TRG1
- Store part #
- C150720
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C150720
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.46 | ₹227.30 |
| 50+ | ₹35.34 | ₹1,767.00 |
| 150+ | ₹31.00 | ₹4,650.00 |
| 500+ | ₹25.59 | ₹12,795.00 |
| 3,000+ | ₹23.18 | ₹69,540.00 |
| 6,000+ | ₹21.74 | ₹1,30,440.00 |
5 × ₹45.46
₹227.30
excl. GST
₹268.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2139AK-3.3TRG1
₹227.30 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
Applications
- Battery Powered Equipment
- Reference Voltage Sources
- Cameras, Video Cameras
- Portable AV Systems
- Mobile Phones
- Communication Tools
- Portable Games
Key features
- Ultra-Low Quiescent Current: 1.0μA
- Typical Output Voltages: 1.2V, 1.4V, 1.5V, 1.8V, 2.1V, 2.2V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V and 4.0V
- High Output Voltage Accuracy: ±2%
- Output Current: 250mA
- Low Dropout Voltage:
- 25mV Typical at Iout = 10mA and VOUT = 3V
- 200mV Typical at Iout = 100mA and VOUT = 3V
- Line Regulation: 6mV Typical
- Load Regulation: 25mV Typical
- Low Output Voltage Temperature Coefficient: ±100ppm/°C
- Low Standby Current: 0.1μA Typical (AP2139)
- Active Quick Output Discharge (AP2139)
- Logic-Controlled Enable (AP2139)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7615-33M5R#C3011519Siproin · SOT-23-5 | Siproin | SOT-23-5 | 1,925 | ₹13.27 · 1,925 in stock | View |
 | AP7365-33WG-7#C150742DIODES · SOT-25 | DIODES | SOT-25 | 4,330 | ₹40.33 · 4,330 in stock | View |
 | TPAP2205-33W5#C41408047TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,105 | ₹23.83 · 1,105 in stock | View |
 | TPS7B6933DBVR-TP#C5371018TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,315 | ₹28.17 · 3,315 in stock | View |
 | WL2851E33-5/TR#C467852WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | 4,920 | ₹21.18 · 4,920 in stock | View |
