DIODESDatasheet (PDF)

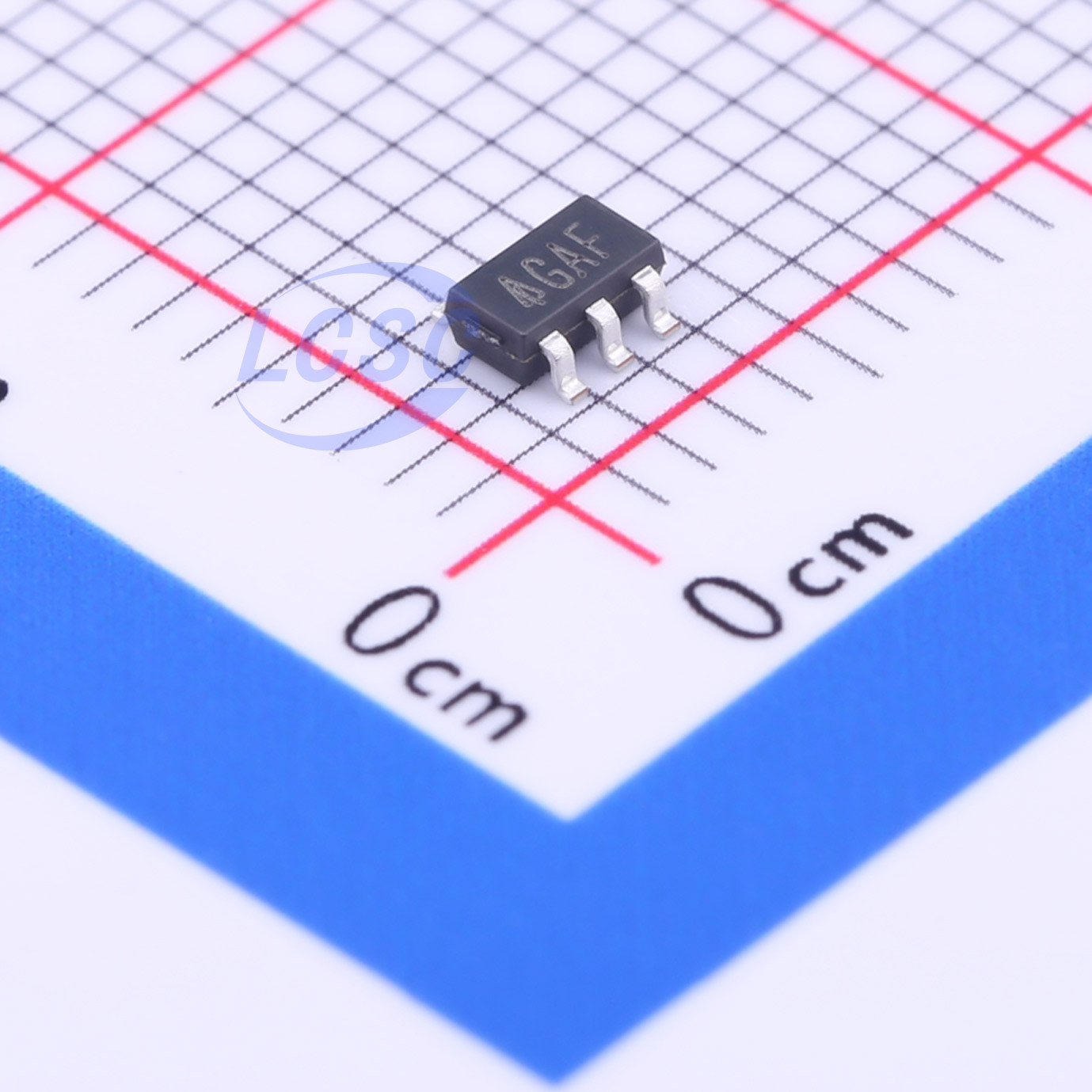

AP2204K-ADJTRG1
1.24V~22V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
Wide Input Voltage Range, 150mA ULDO Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP2204K-ADJTRG1
- Store part #
- C264072
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C264072
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.55 | ₹177.75 |
| 50+ | ₹28.39 | ₹1,419.50 |
| 150+ | ₹25.32 | ₹3,798.00 |
| 500+ | ₹21.49 | ₹10,745.00 |
| 3,000+ | ₹19.78 | ₹59,340.00 |
| 6,000+ | ₹18.76 | ₹1,12,560.00 |
5 × ₹35.55
₹177.75
excl. GST
₹209.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2204K-ADJTRG1
₹177.75 for 5 + GST
Specifications
- Output Voltage
- 1.24V~22V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The AP2204 series is a positive voltage regulator IC fabricated by high voltage EPNP process. The AP2204 has features of wide input voltage range, high accuracy, high ripple rejection, low dropout voltage, low noise, current limit and ultra-low quiescent current which make it ideal for use in various USB and portable devices. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP2204 has 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V fixed voltage versions and adjustable voltage version. The AP2204 is available in space-saving SOT-23-5, SOT-89 and PSOP-8 packages.
Applications
- Battery-powered Equipment
- Laptop, Palmtops, Notebook Computers
- Portable Information Appliances
Key features
- Wide Input Voltage Range: 2.6V to 24V Wide Output Voltage Range: 1.24V to 22V
- Excellent Ripple Rejection: 60dB@ f = 1kHz
- Low Dropout Voltage: VDROP = 100mV@ IOUT = 100μA
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation Thermal Shutdown Function
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
