MSKSEMI

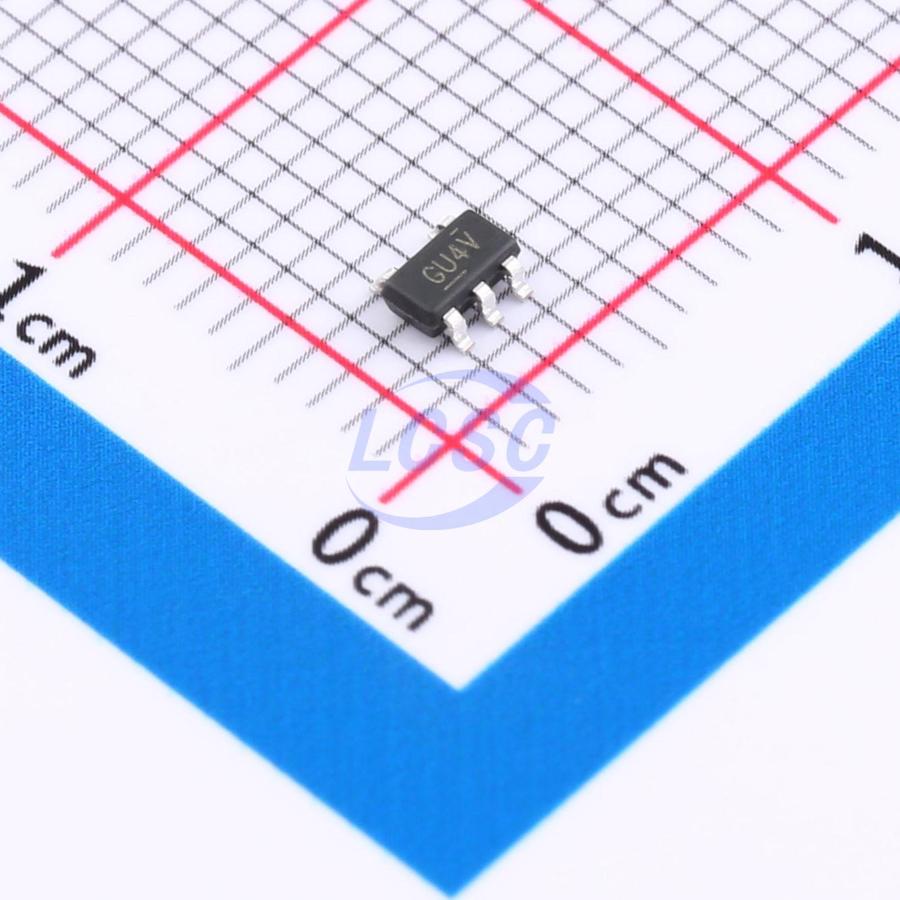

AP3429AKTTR-G2-MS

Step-down type 1.6MHz~2.4MHz Adjustable 600mV~5.5V 2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: AP3429AKTTR-G2-MS
Store part #: C49208502
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,910 in stock

#C49208502

Stock & price checked 44 h ago

Quantity	Unit price	Pack price
5+	₹11.59	₹57.95
50+	₹9.18	₹459.00
150+	₹7.98	₹1,197.00
500+	₹7.08	₹3,540.00
3,000+	₹6.11	₹18,330.00
6,000+	₹5.76	₹34,560.00

Quantity (min 5, multiples of 5)

5 × ₹11.59

₹57.95

excl. GST

₹68.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP3429AKTTR-G2-MS

₹57.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 1.6MHz~2.4MHz
Features: Cycle-by-cycle current limiting;Built-in current sense resistor;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.6V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 2A
Quiescent Current: 80uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

AP3429AKTTR-G2-MS is a high-efficiency DC-DC buck switching regulator capable of delivering up to 2A output current. The device operates over an input voltage range of 2.6V to 5.5V and provides an output voltage from 0.6V to VIN. Operating at a fixed 2MHz switching frequency, it allows the use of small external components such as ceramic input and output capacitors and a compact inductor, while still achieving low output ripple. This low-noise output, combined with excellent efficiency through an internal synchronous rectifier, makes it an ideal replacement for high-power linear regulators. An internal soft-start control circuit reduces inrush current. Short-circuit and thermal shutdown protection enhance design reliability. The device is available in a SOT23-5 package.

Applications

Mobile phones
Digital cameras
MP3 and MP4 players
Set-top boxes
Wireless and DSL modems
USB-powered devices in laptops
Portable devices

Key features

High efficiency: up to 97%
Maximum output current up to 2A
2MHz switching frequency
Low dropout 100% duty cycle operation
Internal compensation and soft-start
Current mode control
Reference voltage 0.6V
Logic-controlled shutdown (IQ < 1uA)
Thermal shutdown, UVLO
SOT23-5 package
