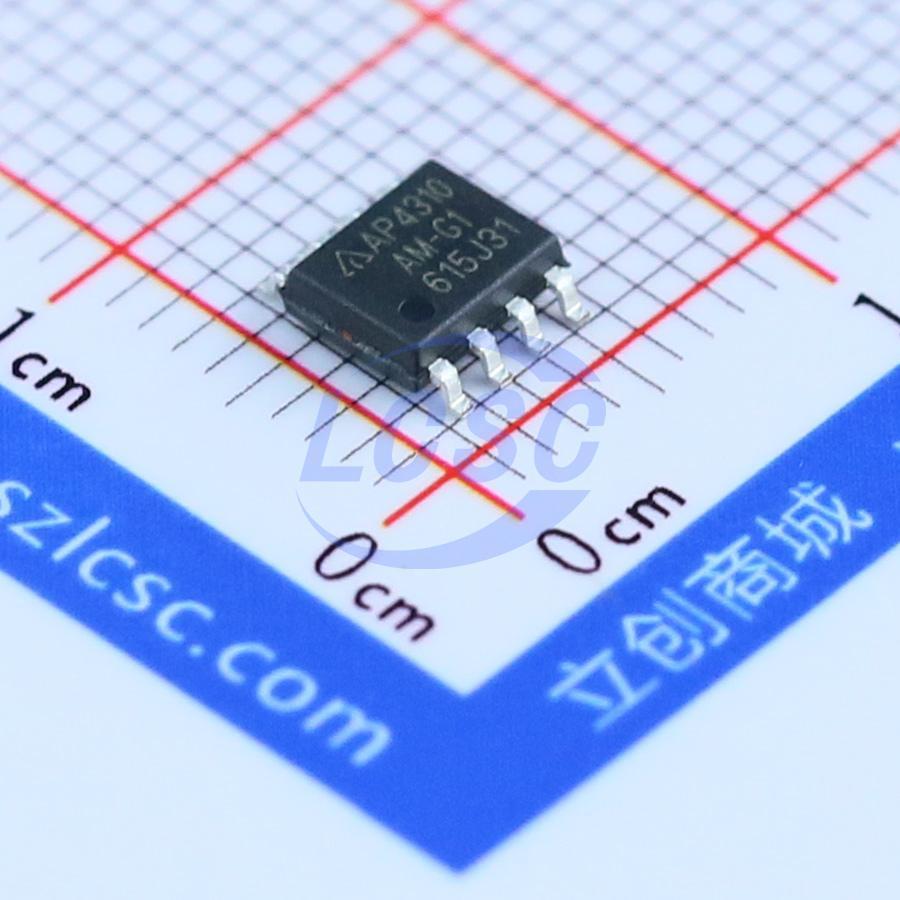

DIODES

AP4310AMTR-G1

40mA 2 5mV 500V/ms 85dB 150nA 150uA 1MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS3 CompliantActive

DUAL OPAMP AND VOLTAGE REFERENCE

Manufacturer: DIODES
Manufacturer part #: AP4310AMTR-G1
Store part #: C24898
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

28,575 in stock

#C24898

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹27.10	₹135.50
50+	₹21.54	₹1,077.00
150+	₹19.16	₹2,874.00
500+	₹16.19	₹8,095.00
2,500+	₹13.10	₹32,750.00
4,000+	₹12.30	₹49,200.00

Quantity (min 5, multiples of 5)

5 × ₹27.10

₹135.50

excl. GST

₹159.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AP4310AMTR-G1

₹135.50 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+105℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 150nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 150uA
Gain Bandwidth Product: 1MHz
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.388 g

Overview

The AP4310A is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies. The device contains two Op Amps and a 2.5V precision shunt voltage reference. Op Amp 1 is designed for voltage control with its noninverting input internally connected to the output of the shunt regulator. Op Amp 2 is for current control with both inputs uncommitted. The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost. The AP4310A is available in SO - 8 package.

Applications

Battery Charger
Switching Power Supply

Key features

Input Offset Voltage: 0.5mV
Supply Current: 75μA per OP Amp at 5.0V Supply Voltage
Unity Gain Bandwidth: 1MHz
Output Voltage Swing: 0 to VCC - 1.5V
Power Supply Range: 3 to 36V
Fixed Output Voltage Reference: 2.5V
Reference Voltage Tolerance: ±0.4%
Sink Current Capability: 0.05 to 80mA
Typical Output Impedance: 0.2Ω
Totally Lead - free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
XL4310#C609747XINLUDA · SOP-8	XINLUDA	SOP-8	260	₹8.80 · 260 in stock	View
UM609AG-1#C7509613UTC · SOP-8	UTC	SOP-8	10	₹17.65 · 10 in stock	View
LM258AWDT#C2058516ST · SO-8	ST	SO-8	2	₹170.24 · 2 in stock	View
XL158#C513505XINLUDA · SOP-8	XINLUDA	SOP-8	4,055	₹9.95 · 4,055 in stock	View
LM2904WYDT#C105410ST · SOIC-8	ST	SOIC-8	138	₹84.75 · 138 in stock	View
