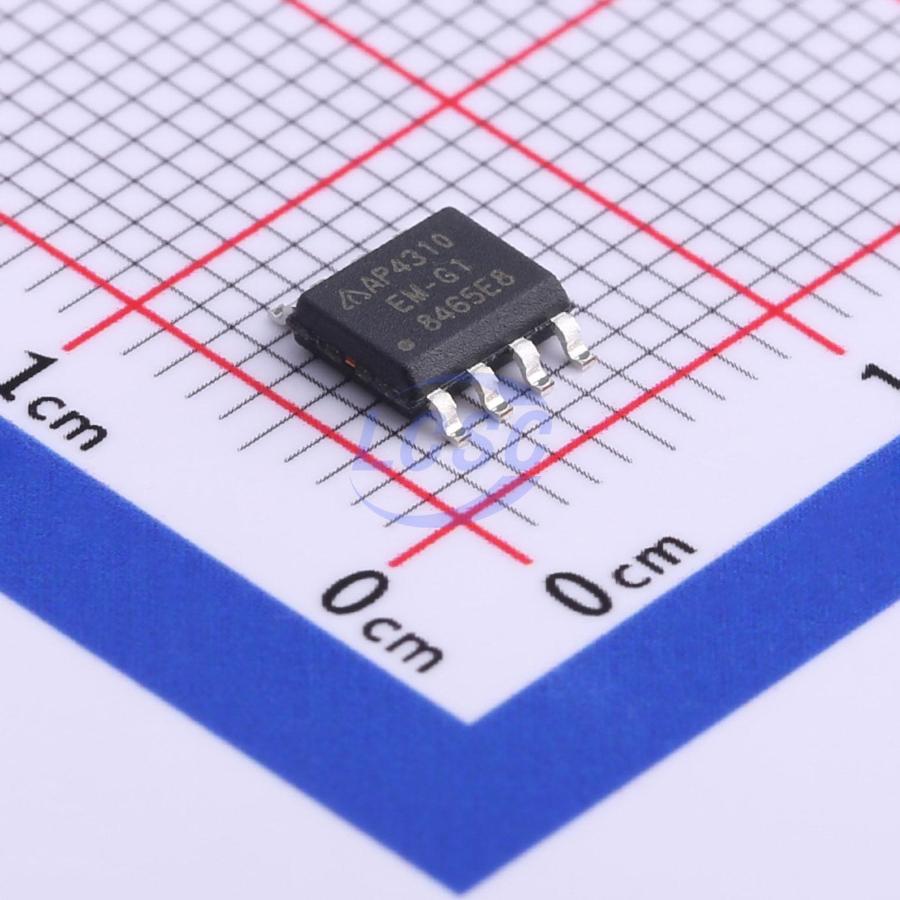

AP4310EMTR-G1
SO-8 Battery Management RoHS
Dual Op Amp and Voltage Reference
- Manufacturer
- DIODES
- Manufacturer part #
- AP4310EMTR-G1
- Store part #
- C526377
- Package / case
- SO-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,380 in stock
#C526377
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.31 | ₹171.55 |
| 50+ | ₹27.07 | ₹1,353.50 |
| 150+ | ₹23.97 | ₹3,595.50 |
| 500+ | ₹20.11 | ₹10,055.00 |
| 2,500+ | ₹16.26 | ₹40,650.00 |
| 4,000+ | ₹15.23 | ₹60,920.00 |
5 × ₹34.31
₹171.55
excl. GST
₹202.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP4310EMTR-G1
₹171.55 for 5 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
Overview
The AP4310E is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies. The device contains two Op Amps and a 2.5V precision shunt voltage reference. Op Amp 1 is designed for voltage control with its noninverting input internally connected to the output of the shunt regulator. Op Amp 2 is for current control with both inputs uncommitted. The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost. AP4310E has more stringent reference voltage tolerance and offset. The AP4310E is available in standard package of SO - 8.
Applications
- Battery Charger
- Switching Power Supply
Key features
- OP Amp
- Input Offset Voltage: 0.5mV
- Supply Current: 75μA per OP Amp at 5.0V Supply Voltage
- Unity Gain Bandwidth: 1MHz
- Output Voltage Swing: 0 to Vcc - 1.5V
- Power Supply Range: 3 to 36V
- Voltage Reference
- Fixed Output Voltage Reference: 2.5V
- Reference Voltage Tolerance: ±0.4%
- Sink Current Capability: 0.05 to 80mA
- Typical Output Impedance: 0.2Ω
- Totally Lead - free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
