DIODESDatasheet (PDF)

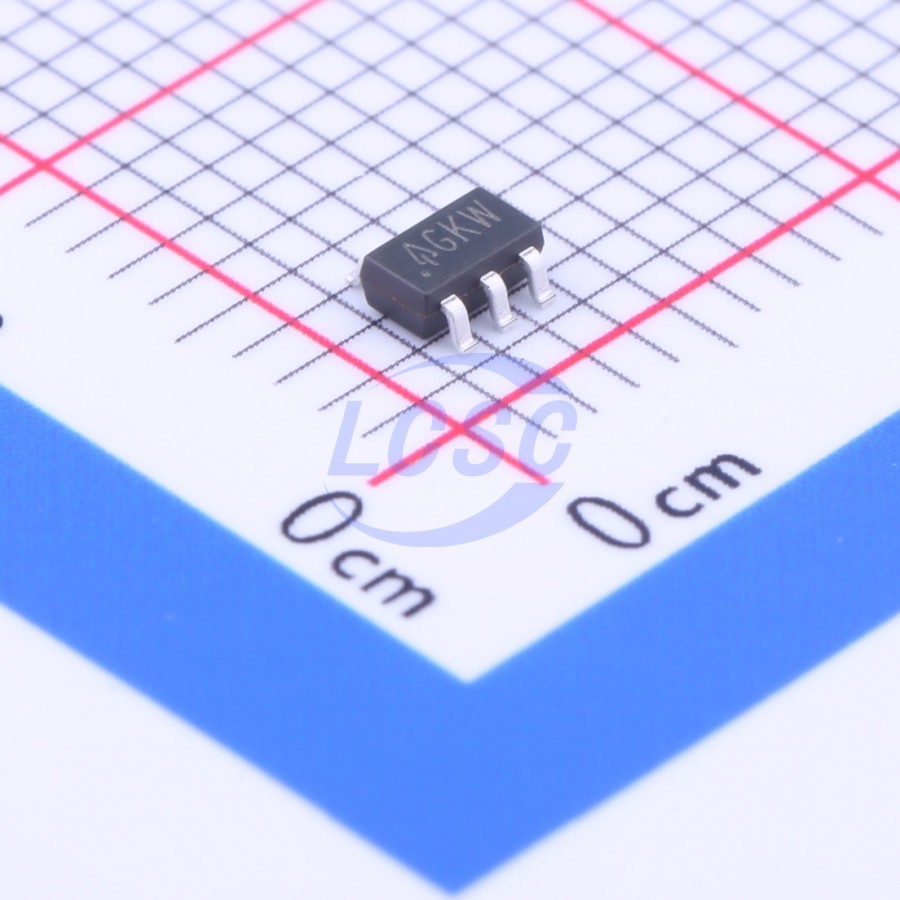

AP4320BK6TR-G1
SOT-26 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-26ROHS3 CompliantActive
Constant Voltage and Constant Current Controller
- Manufacturer
- DIODES
- Manufacturer part #
- AP4320BK6TR-G1
- Store part #
- C260949
- Package / case
- SOT-26
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54,720 in stock
#C260949
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.01 | ₹145.05 |
| 50+ | ₹22.58 | ₹1,129.00 |
| 150+ | ₹19.82 | ₹2,973.00 |
| 500+ | ₹16.39 | ₹8,195.00 |
| 3,000+ | ₹13.12 | ₹39,360.00 |
| 6,000+ | ₹12.20 | ₹73,200.00 |
5 × ₹29.01
₹145.05
excl. GST
₹171.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP4320BK6TR-G1
₹145.05 for 5 + GST
Specifications
- Features
- Overcurrent Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The AP4320 is a highly integrated solution for a constant voltage/constant current mode SMPS application. The AP4320 contains one 2.5V voltage reference and two operational amplifiers. The 2.5V voltage reference, combined with one operational amplifier, makes of an ideal voltage controller for use in adapters and battery chargers. The low voltage reference, combined with another operational amplifier, makes of an ideal current limiter for output low side current sensing. The AP4320 is available in SOT26 package
Applications
- AC/DC Adapters
- Battery Chargers
- LED Drivers
Key features
- Constant Voltage and Constant Current Control
- Low External Component Count
- Easy Compensation
- Low Supply Current: 190μA
- Precision Internal Voltage Reference: 2.5V
- Operating Supply Voltage: 3.5V to 36V
- Low Current Sense Threshold: 30mV/50mV
- Totally Lead-free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
