DIODESDatasheet (PDF)

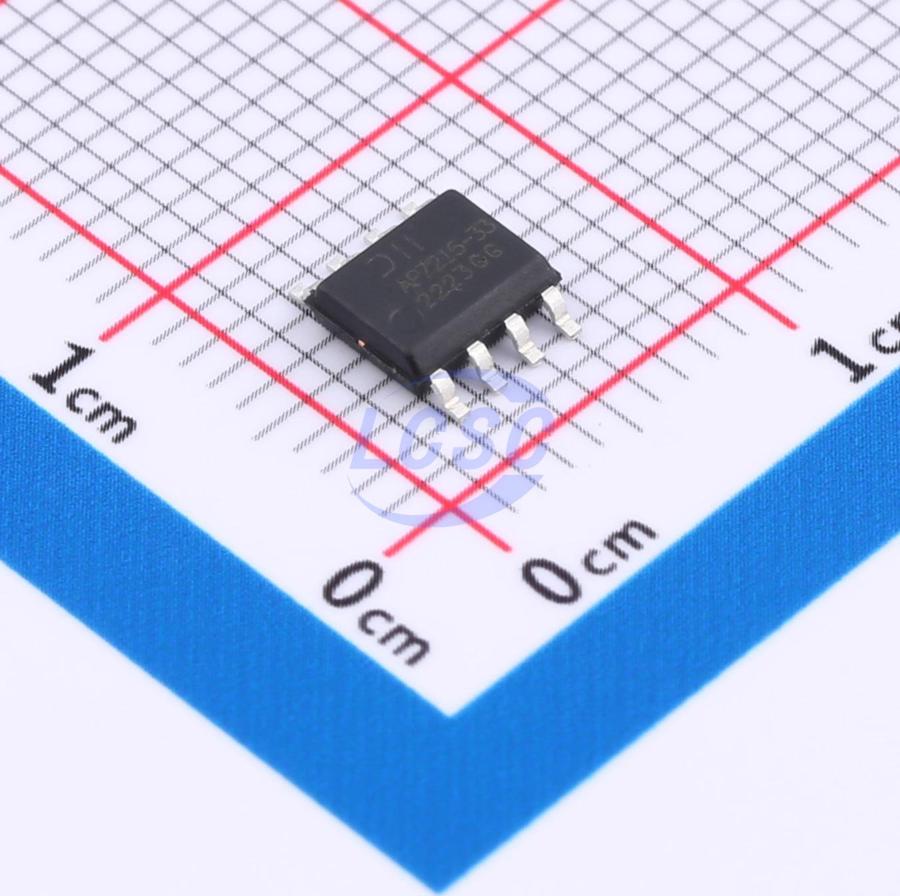

AP7215-33SG-13
3.3V Positive Fixed SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8ROHS3 CompliantActive
600mA CMOS LDO
- Manufacturer
- DIODES
- Manufacturer part #
- AP7215-33SG-13
- Store part #
- C5564122
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C5564122
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.31 | ₹256.55 |
| 50+ | ₹40.74 | ₹2,037.00 |
| 150+ | ₹36.20 | ₹5,430.00 |
| 500+ | ₹30.55 | ₹15,275.00 |
| 2,500+ | ₹28.03 | ₹70,075.00 |
| 5,000+ | ₹26.51 | ₹1,32,550.00 |
5 × ₹51.31
₹256.55
excl. GST
₹302.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP7215-33SG-13
₹256.55 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Reset function;Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
The AP7215 low-dropout linear regulator operates from a 3.3V to 5.5V supply and delivers a guaranteed 600mA continuous load current. The high-accuracy output voltage is preset to an internally trimmed voltage. An active-low open-drain reset output remains asserted for at least 20ms (TYP) after input voltage rises above the reset threshold. The space-saving SOP-8L and SOT89-3L package are suitable for “pocket” and hand-held applications.
Applications
- HD/Blue-Ray DVD & MP3/4 Players
- Mobile Handsets and Smart Phones
- Digital Still Camera
- Hand-Held Computers
Key features
- Very Low Dropout Voltage
- Low Current Consumption: Typ. 50μA
- Output Voltage: 3.3V
- Guaranteed 600mA Output
- Input Range up to 5.5V
- Current Limit Protection
- Stable with either electrolytic capacitor or low-ESR MLCC (multi-layer ceramic capacitor)
- Low Temperature Coefficient
- SOP-8L and SOT89-3L: Available in “Green” Molding Compound (No Br, Sb)
- Lead Free Finish / RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2112M-3.3TRG1#C5290219DIODES · SO-8 | DIODES | SO-8 | 2,405 | ₹41.77 · 2,405 in stock | View |
 | LT1129IS8-3.3#PBF#C662830ADI · SO-8 | ADI | SO-8 | 10 | ₹2,111.69 · 10 in stock | View |
 | MC33269DR2-3.3G#C7301onsemi · SOIC-8 | onsemi | SOIC-8 | 2,171 | ₹79.98 · 2,171 in stock | View |
 | LKP2074S-33#C48639162LKWIC · SOP-8 | LKWIC | SOP-8 | 128 | ₹270.54 · 128 in stock | View |
 | MCP1726T-3302E/SN#C623094MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 66 | ₹176.28 · 66 in stock | View |
