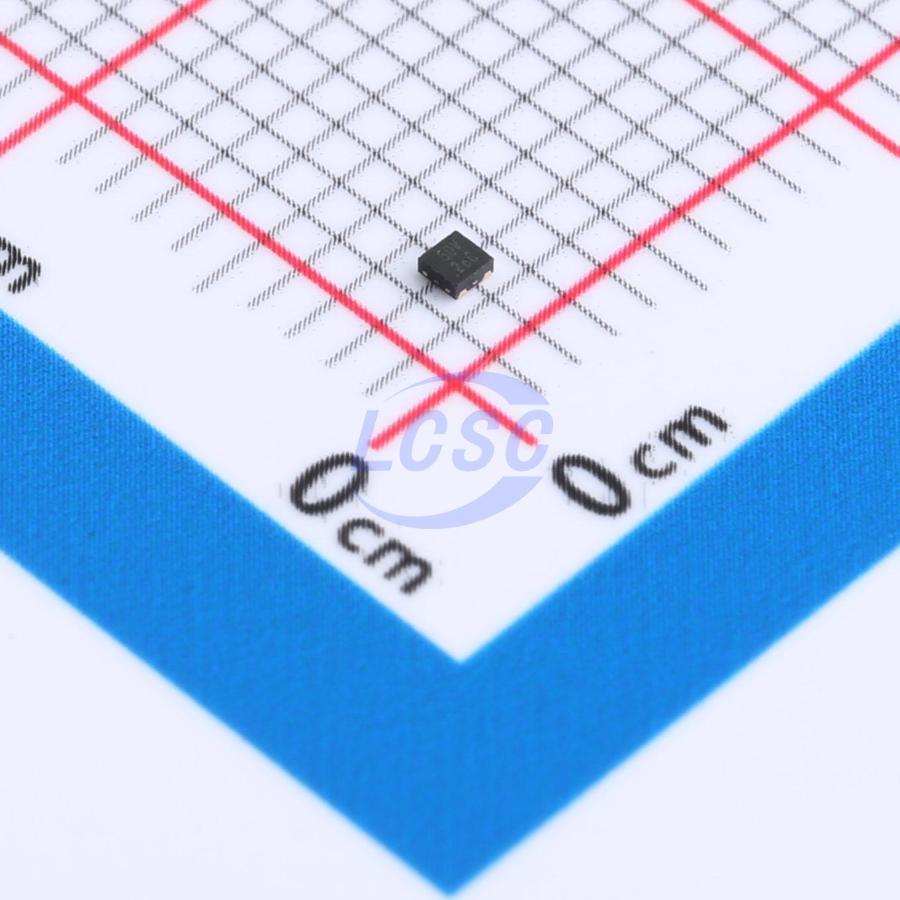

AP7315D-33FS4-7B

3.3V Positive Fixed X2-DFN1010-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

X2-DFN1010-4ROHS3 CompliantActive

150mA HIGH PSRR LOW NOISE LDO WITH ENABLE

Manufacturer: DIODES
Manufacturer part #: AP7315D-33FS4-7B
Store part #: C5553105
Package / case: X2-DFN1010-4
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

45 in stock

#C5553105

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹12.73	₹63.65
50+	₹12.45	₹622.50
150+	₹12.26	₹1,839.00
500+	₹12.08	₹6,040.00

Quantity (min 5, multiples of 5)

5 × ₹12.73

₹63.65

excl. GST

₹75.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

AP7315D-33FS4-7B

₹63.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 60uA
Output Configuration: Positive
Operating Voltage: 5.25V
Output Current: 150mA
Output Type: Fixed
Features: Enable control;Short Circuit Protection;Output discharge;Over Current Protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.007 g

Overview

The AP7315 is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise, and low quiescent current. This regulator is based on a CMOS process. The AP7315 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on and off. With the integrated resistor network fixed output voltage versions can be delivered. With its low power consumption and line and load transient response, the AP7315 is well suited for low power handheld communication equipment. The AP7315 is packaged in X2-DFN1010-4, SOT23, and SOT25 packages and allows for the smallest footprint and a dense PCB layout.

Applications

Smart Phone/PAD
RF Supply
Cameras
Portable Videos
Portable Media Players
Wireless Adapters
Wireless Communication

Key features

Low VIN and Wide VIN Range: 1.7V to 5.25V
Guarantee Output Current, 150mA
VOUT Accuracy ±1%
Ripple Rejection 75dB at 1kHz
Low Output Noise, 60μVrms from 10Hz to 100kHz
Quiescent Current as Low as 35μA
VOUT Fixed 1.1V to 3.3V
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free, Green Device
