DIODESDatasheet (PDF)

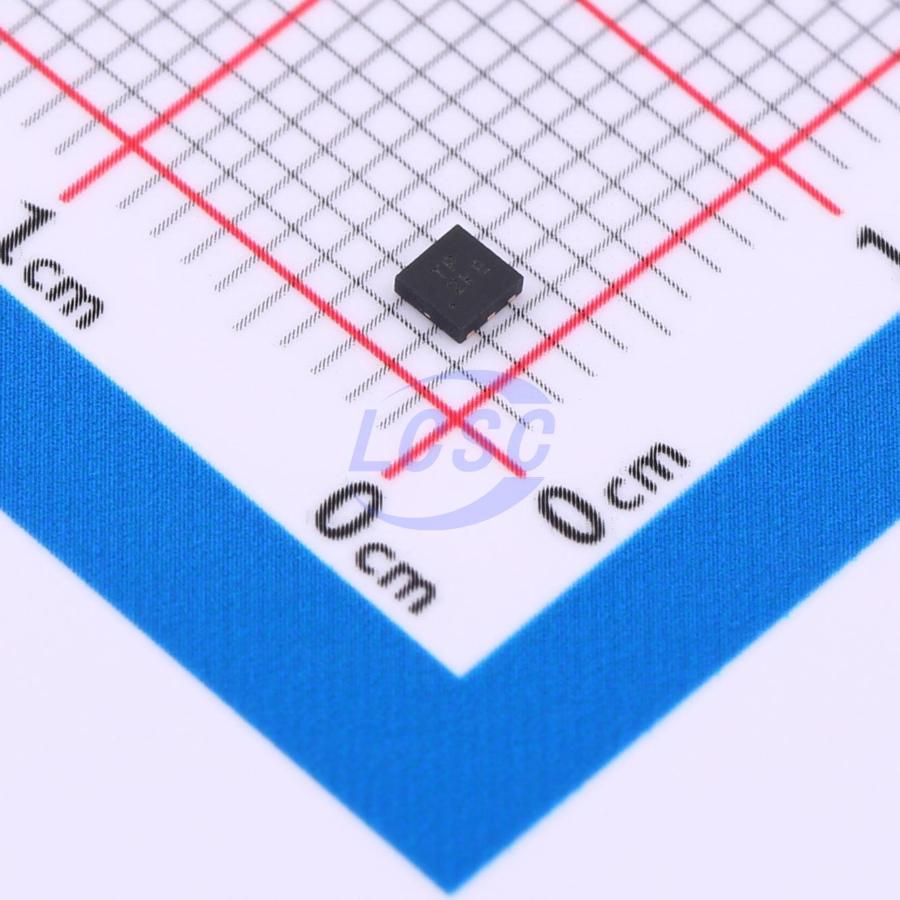

AP7335A-50SN-7
3.3V Positive Fixed UDFN2020-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UDFN2020-6ROHS3 CompliantDiscontinued
300mA Low Quiescent Current Fast Transient Low Dropout (LDO) Linear Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7335A-50SN-7
- Store part #
- C6741264
- Package / case
- UDFN2020-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C6741264
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.80 | ₹74.00 |
| 50+ | ₹14.49 | ₹724.50 |
| 150+ | ₹14.28 | ₹2,142.00 |
| 500+ | ₹14.06 | ₹7,030.00 |
5 × ₹14.80
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7335A-50SN-7
₹74.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 9V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
The AP7335A is a 300mA, fixed output voltage, low-dropout linear regulator with ±1% output voltage accuracy. The device includes pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low-dropout voltage and low-quiescent current make it suitable for low-power applications, for example, battery powered devices. The typical quiescent current is 35μA. Built-in, current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. This device is only available as a 3.3V fixed version now. The AP7335A is packaged in SOT25 and U-DFN2020-6.
Applications
- Smart Phones
- MP3/MP4s
- Battery-Powered Devices
- Bluetooth Headsets
- Battery Chargers
- LCD TVs Multifunction Monitors
Key features
- Smart Phones
- MP3/MP4s
- Battery-Powered Devices
- Bluetooth Headsets
- Battery Chargers
- LCD TVs Multifunction Monitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV8718AMT330TBG#C893310onsemi · WDFN-6(2x2) | onsemi | WDFN-6(2x2) | 36 | ₹161.64 · 36 in stock | View |
 | TLV76733DRVT#C2867572TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 588 | ₹111.03 · 588 in stock | View |
| AP7583Q-33FDZW-7#C5553353DIODES · WDFN2020-6 | DIODES | WDFN2020-6 | 54 | ₹115.88 · 54 in stock | View | |
 | TPS7A2533DRVR#C2867820TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 2,634 | ₹71.32 · 2,634 in stock | View |
 | AP7375Q-33FDCW-7#C28043222DIODES · DFN2020-6 | DIODES | DFN2020-6 | 2,674 | ₹41.85 · 2,674 in stock | View |
