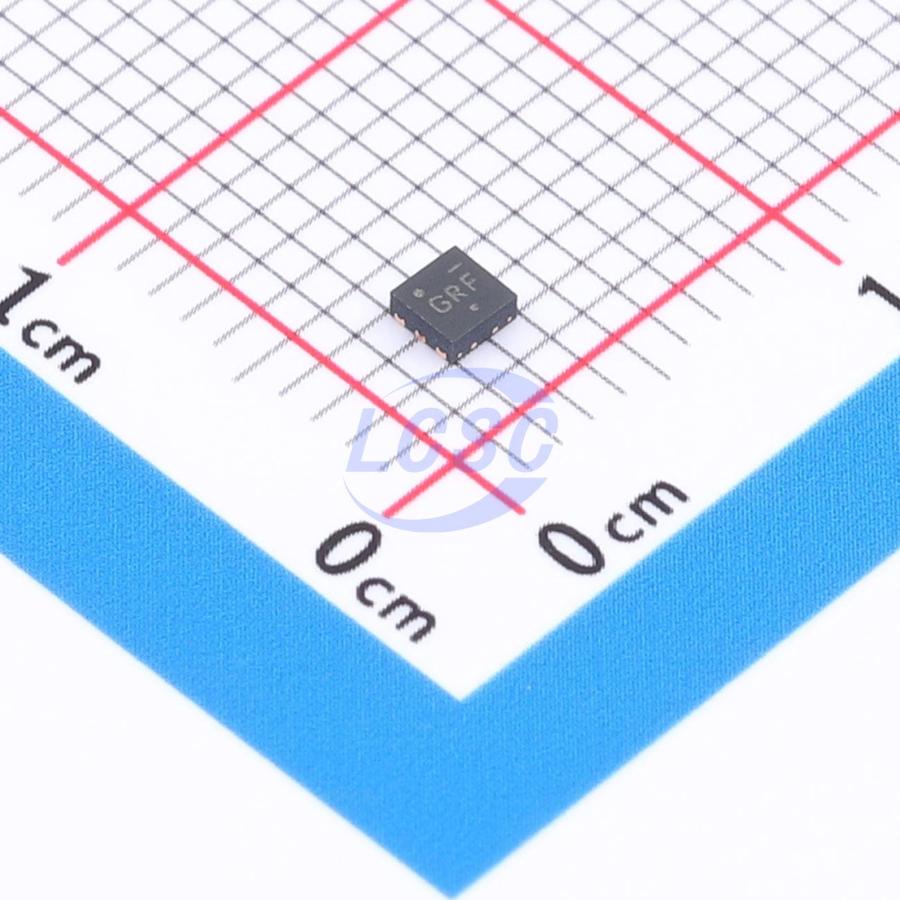

NCV8718AMT330TBG

The NCV8718 is 300 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low quiescent current consumption (typ. 4 μA over the full temperature range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.

Applications

• Wireless Chargers
• Portable Equipment
• Communication Systems
• In−Vehicle Networking
• Telematics, Infotainment and Clusters
• General Purpose Automotive

Key features

• Operating Input Voltage Range: 2.5 V to 24 V
• Fixed Voltage Options Available: 1.2 V to 5 V (upon request)
• Adjustable Voltage Option from 1.2 V to 5 V
• Ultra−Low Quiescent Current: typ. 4 μA over Temperature
• ±2% Accuracy Over Full Load, Line and Temperature Variations
• PSRR: 60 dB at 1 kHz
• Noise: typ. 36 μVRMS from 100 Hz to 100 kHz
• Stable with Small 1 μF Ceramic Capacitor
• Soft−start to Reduce Inrush Current and Overshoots
• Thermal Shutdown and Current Limit Protection
• SOA Limiting for High Vin / High Iout – Static / Dynamic
• Active Discharge Option Available (upon request)
• Available in WDFN6 2x2 mm Package
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
