DIODESDatasheet (PDF)

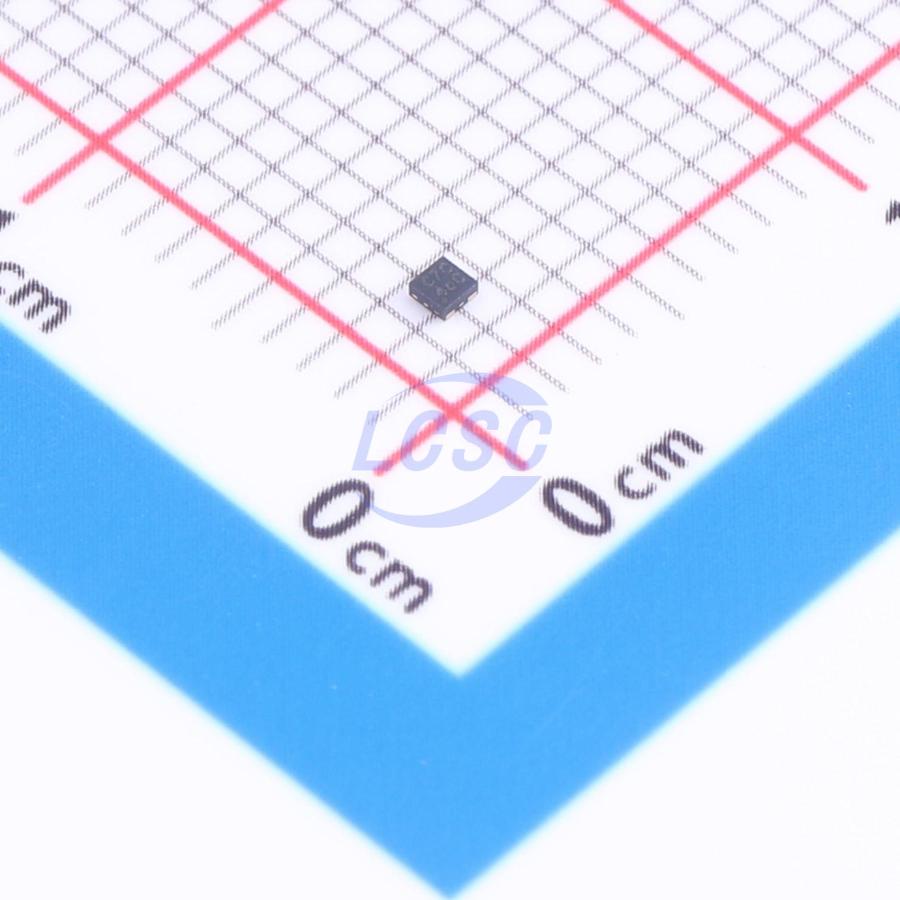

AP7351D-15FS4-7B
1.5V Positive Fixed X2-DFN1010-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1010-4ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- AP7351D-15FS4-7B
- Store part #
- C6861311
- Package / case
- X2-DFN1010-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C6861311
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.10 | ₹42.10 |
| 10+ | ₹41.01 | ₹410.10 |
| 30+ | ₹40.36 | ₹1,210.80 |
| 100+ | ₹39.70 | ₹3,970.00 |
1 × ₹42.10
₹42.10
excl. GST
₹49.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
AP7351D-15FS4-7B
₹42.10 for 1 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The AP7351D is a low dropout regulator with high output voltage accuracy. The AP7351D includes a voltage reference, error amplifier, current limit circuit and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7351D is well suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7351D is available in the X2-DFN1010-4 (Type B) and SOT25 packages.
Applications
- Wearable Electronics
- Sensor Module for Internet-Of-Things (IOT)
- Wireless Communication Module
- Battery-Operated Device
- Camera
- Image Sensor
Key features
- Low VIN and Wide VIN Range: 1.4V to 5.5V
- Guarantee Output Current, 150mA
- Output Voltage Range: 0.8V to 4.5V
- VOUT Accuracy: ±1%
- Ripple Rejection up to 60dB at 1kHz
- Quiescent Current as Low as 0.5μA
- Typical Standby Current 0.02μA
- Totally Lead-Free & Fully RoHS Compliant
- Halogen- and Antimony-Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP170AMX150TCG#C892230onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 890 | ₹28.06 · 890 in stock | View |
 | CJ6206B15F#C2829368JSCJ · UDFN-4(1x1) | JSCJ | UDFN-4(1x1) | 6,670 | ₹10.95 · 6,670 in stock | View |
 | TPL730F15-FR#C381073323PEAK · DFN1x1-4 | 3PEAK | DFN1x1-4 | 200 | ₹17.90 · 200 in stock | View |
| TLV71715PDQNR#C2864046TI · X2SON-4-EP(1x1) | TI | X2SON-4-EP(1x1) | 100 | ₹30.06 · 100 in stock | View | |
| TCR3DM15,LF(SE#C5981519TOSHIBA · DFN-4(1x1) | TOSHIBA | DFN-4(1x1) | 100 | ₹31.06 · 100 in stock | View | |
