onsemiDatasheet (PDF)

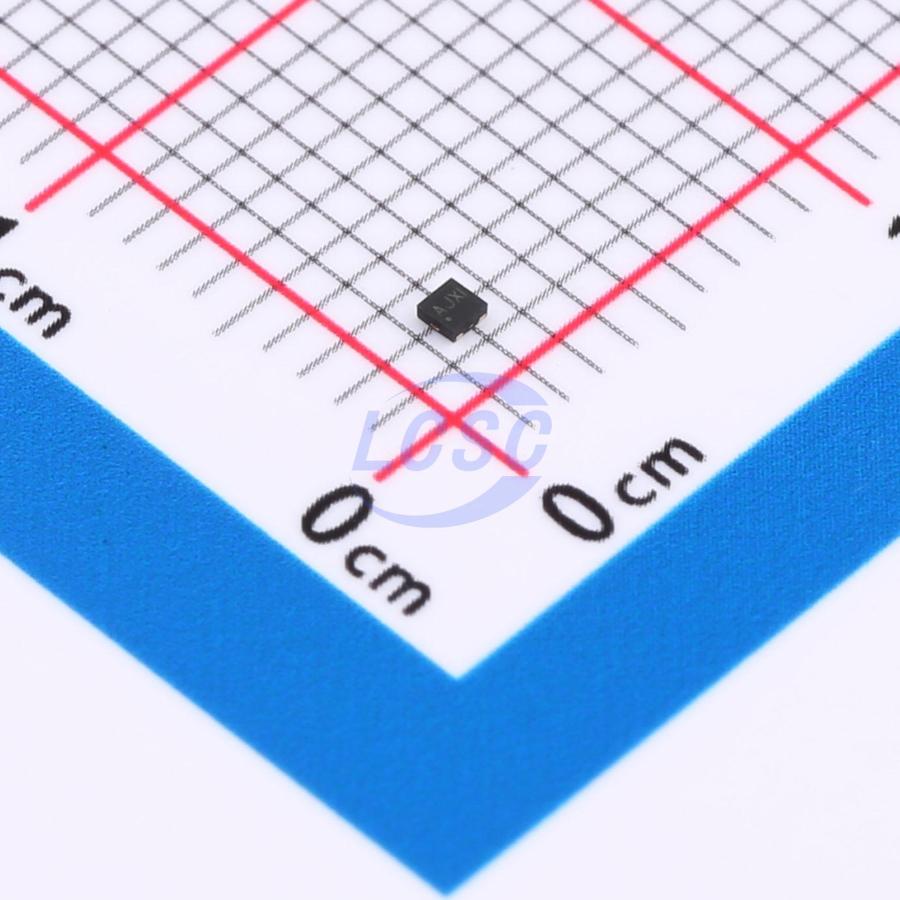

NCP170AMX150TCG
1.5V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-4-EP(1x1)ROHS3 CompliantActive
LDO Regulator, Ultra-Low IQ, CMoS, 150 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170AMX150TCG
- Store part #
- C892230
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
890 in stock
#C892230
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.06 | ₹140.30 |
| 50+ | ₹27.45 | ₹1,372.50 |
| 150+ | ₹27.04 | ₹4,056.00 |
| 500+ | ₹26.65 | ₹13,325.00 |
5 × ₹28.06
₹140.30
excl. GST
₹165.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP170AMX150TCG
₹140.30 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7351D-15FS4-7B#C6861311DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | 40 | ₹42.10 · 40 in stock | View |
| TPS7A0315PDQNR#C2866138TI · SON-4(1x1) | TI | SON-4(1x1) | 32 | ₹51.11 · 32 in stock | View | |
 | CJ6206B15F#C2829368JSCJ · UDFN-4(1x1) | JSCJ | UDFN-4(1x1) | 6,670 | ₹10.95 · 6,670 in stock | View |
 | TPL730F15-FR#C381073323PEAK · DFN1x1-4 | 3PEAK | DFN1x1-4 | 200 | ₹17.90 · 200 in stock | View |
| TLV71715PDQNR#C2864046TI · X2SON-4-EP(1x1) | TI | X2SON-4-EP(1x1) | 100 | ₹30.06 · 100 in stock | View | |
