DIODESDatasheet (PDF)

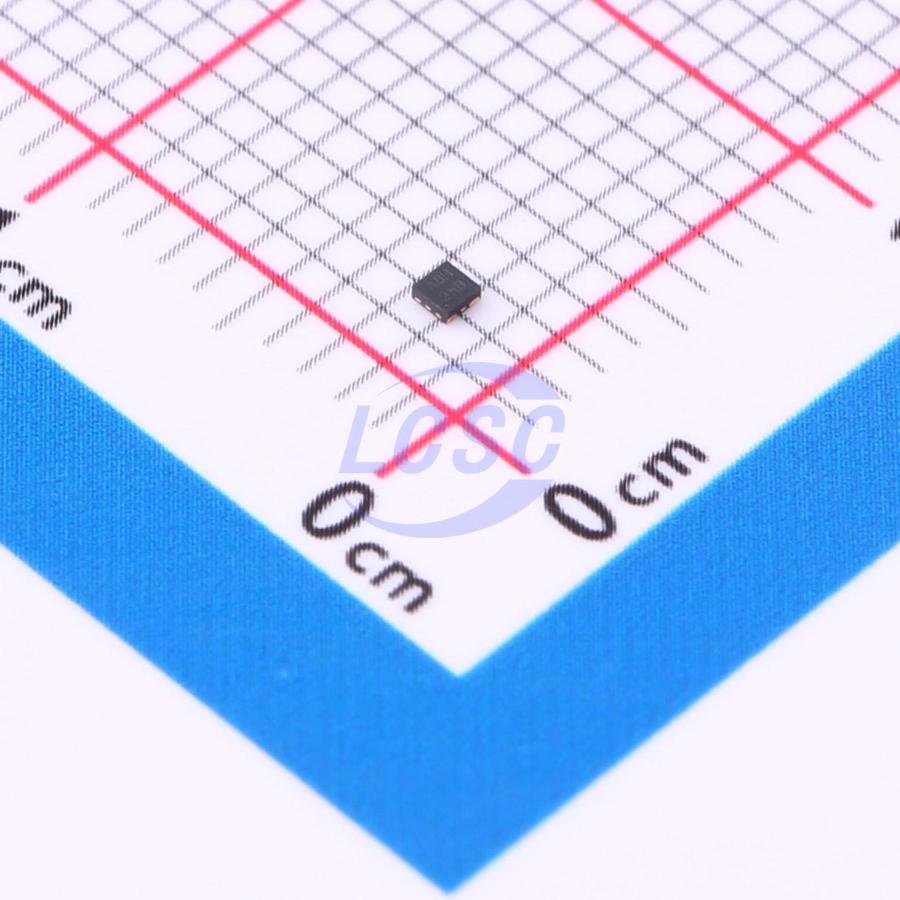

AP7354-33FS4-7
3.3V Positive Fixed X2-DFN1010-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1010-4ROHS3 CompliantActive
150mA ULTRA-LOW QUIESCENT CURRENT LDO WITH ENABLE
- Manufacturer
- DIODES
- Manufacturer part #
- AP7354-33FS4-7
- Store part #
- C6741364
- Package / case
- X2-DFN1010-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
490 in stock
#C6741364
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.53 | ₹122.65 |
| 50+ | ₹24.00 | ₹1,200.00 |
| 150+ | ₹23.64 | ₹3,546.00 |
| 500+ | ₹23.28 | ₹11,640.00 |
5 × ₹24.53
₹122.65
excl. GST
₹144.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AP7354-33FS4-7
₹122.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 250nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7354 is well-suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages.
Applications
- Wearable Electronics
- Sensor Module for Internet-of-Things (IoT)
- Wireless Communication Module
- Battery-Operated Device Camera Image Sensor
Key features
- Wide VIN Range: 2.0V to 5.5V
- Guarantee Output Current: 150mA
- Output Voltage Range: 1.1V to 4.5V
- VOUT Accuracy: ±1%
- Quiescent Current as Low as 0.25μA
- Output Discharge Available for Devices in SOT25 or X2-DFN1010-4 (Type B) Typical Standby Current: 0.02μA
- ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114), Exceeds 400V Machine Model (A115)
- Latch-Up Exceeds 400mA per JESD 78, Class I
- Moisture Sensitivity: Level 1 per J-STD-020
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP161BMX330TBG#C603640onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 4,590 | ₹25.19 · 4,590 in stock | View |
 | NCP161AMX330TBG#C892180onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 123 | ₹58.24 · 123 in stock | View |
 | TPS7A0333PDQNR3#C2862643TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 6,438 | ₹56.00 · 6,438 in stock | View |
 | TPS7A0333DQNR#C2873329TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 1,306 | ₹48.79 · 1,306 in stock | View |
 | NCP170AMX330TCG#C260426onsemi · DFN-4-EP(1x1) | onsemi | DFN-4-EP(1x1) | 65 | ₹39.54 · 65 in stock | View |
