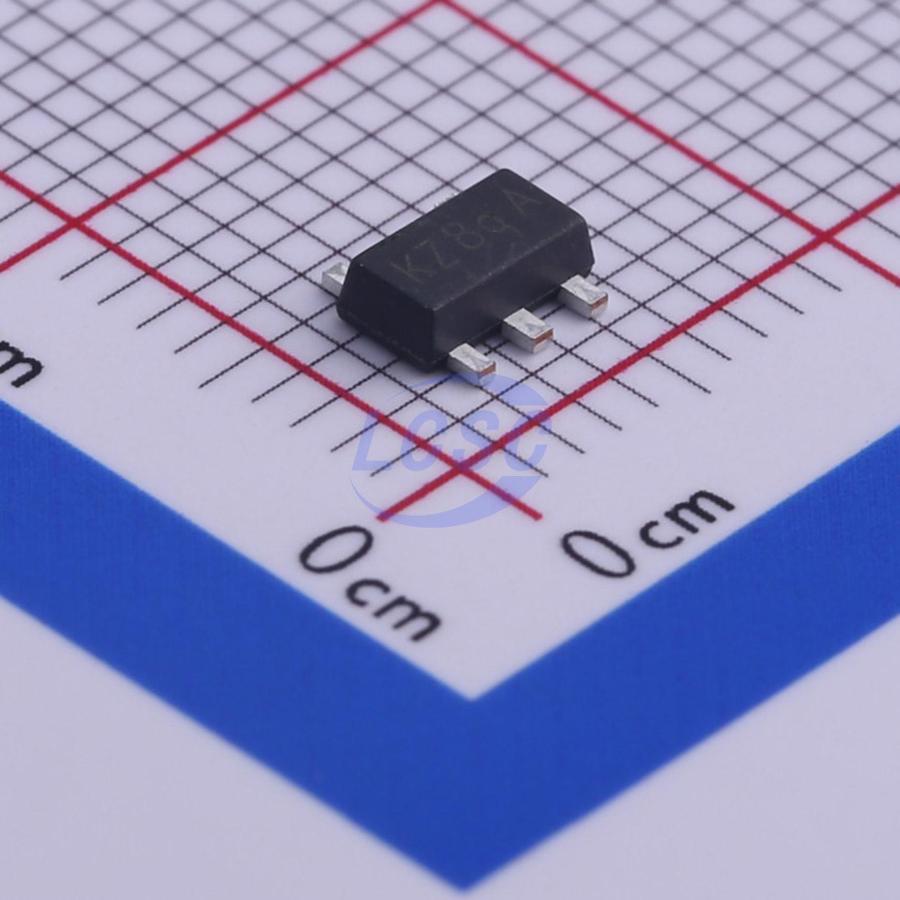

AP7361C-33Y5-13

The AP7361C is a 1A, adjustable and fixed output voltage, ultra-low dropout linear regulator with enable. The device includes pass element, error amplifier, band-gap reference, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of the low dropout voltage and low quiescent current make it suitable for low-to-medium power applications; for example, laptop computers, audio and video applications, and battery-powered devices. The typical quiescent current is approximately 60μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7361C is available in U-DFN3030-8 (Type E), SOT89-5, SOT223, TO252 (DPAK) and SO-8EP packages.

Applications

• LCD-TV, Monitor
• Set-Top-Box
• Home Electrical Appliances

Key features

• Wide Input Voltage Range: 2.2V to 6.0V
• Output Voltage Accuracy: ±1%
• Very Low Dropout Voltage (3.3V): 360mV at 1A Typical
• Low Quiescent Current (IQ): 60μA Typical
• Adjustable Output Voltage Range: 0.8V to 5.0V
• Fixed Output Options: 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V and 3.3V
• High PSRR: 75dB @ 1kHz
• Current Limit: 1.5A
• Fold-Back Short Circuit Protection: 400mA
• Thermal Shutdown Protection
• Stable with MLCC, E-Cap, Tan-Cap or Solid Capacitor ≥2.2μF
• Ambient Temperature Range: -40°C to +85°C
• Available in “Green” Molding Compound (No Br, Sb)
• Moisture Sensitivity: Level 1 Per J-STD-020
• Diodes automotive grade parts (Q-suffix) are suitable for automotive applications requiring specific change control; these parts are AEC-Q100/101/200 qualified, PPAP capable and manufactured in IATF16949:2016 certified facilities
• Totally Lead-Free & Fully RoHS Compliant
• Halogen- and Antimony-Free. “Green” Device
