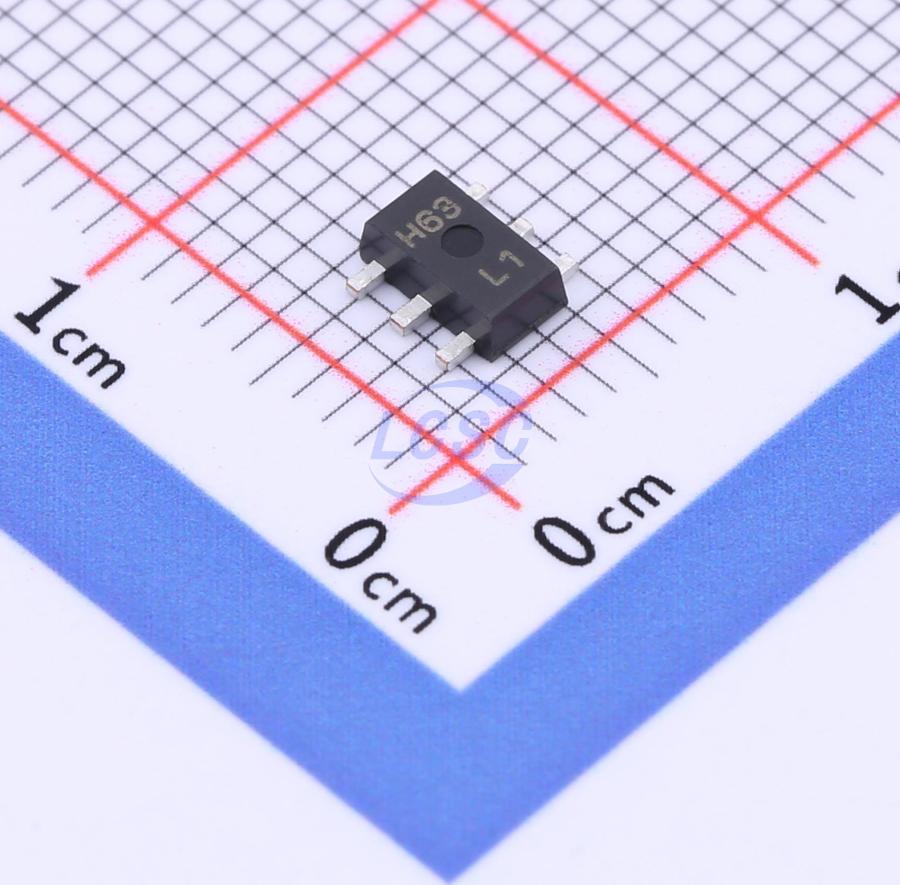

XC6220B331PR-G

The XC6220 series is a highly accurate, low noise, high speed, low dropout, and large current CMOS voltage regulator with GreenOperation function. The series consists of a voltage reference, an error amplifier, a current limiter, an inrush current prevention circuit and a phase compensation circuit plus a driver transistor. With a 0.2Ω on-resistance driver transistor integrated and with output currents up to 1A, the ultra low dropout voltage performance greatly extends battery life as does the GreenOperation function which can switch between high speed and power save modes automatically. Low ESR ceramic capacitors can be used for the output stabilization capacitor (CL). Output voltage is selectable in 0.05V increments within the range of 0.8V~5.0V, using laser trimming technologies. An over current protection circuit and a thermal shutdown circuit are built in. The over current protection circuit will operate when the output current reaches its limit current. The thermal shutdown circuit will operate when the junction temperature reaches its limit temperature. The inrush protection circuit works by controlling the inrush current which is charged to CL when the IC starts up. In this way, any fluctuations to VIN caused by inrush current during system start up can be minimized. The CE function enables the output to be turned off and the IC becomes a stand-by mode resulting in greatly reduced power consumption.

Applications

• CD-ROM, CD-R/RW drives
• DVD drives
• HDD drives
• MIDs, UMPCs
• Digital still cameras, Video cameras
• Portable AV equipment

Key features

• Maximum Output Current: 1000mA (TYP.:1200mA limit) (1.2V≦VIN≦5.0V)
• Dropout Voltage: 20mV @ 100mA (VOUT=3.0V); 60mV @ 300mA (VOUT=3.0V)
• Operating Voltage Range: 1.6V~6.0V
• Output Voltage Range: 0.8V~5.0V (0.05V increments)
• Accuracy: ±1% (VOUT≧2.0V); ±20mV (VOUT＜2.0V)
• Low Power Consumption: 8μA (TYP.) in PS mode; 50μA (TYP.) in HS mode
• Operating Temperature: -40°C - +85°C
• Thermal Shutdown: Detect 150°C, Release 135°C (TYP.)
• Inrush Current Protection: 700mA (MAX.)
• CL Auto Discharge: XC6220B/D Series; XC6220C/D Series
• CE Pull-Down Resistor
• Output Capacitor: Ceramic Capacitor Compatible
• Packages: USP-6C, SOT-25, SOT-89-5
• Environmentally Friendly: EU RoHS Compliant, Pb Free
