DIODESDatasheet (PDF)

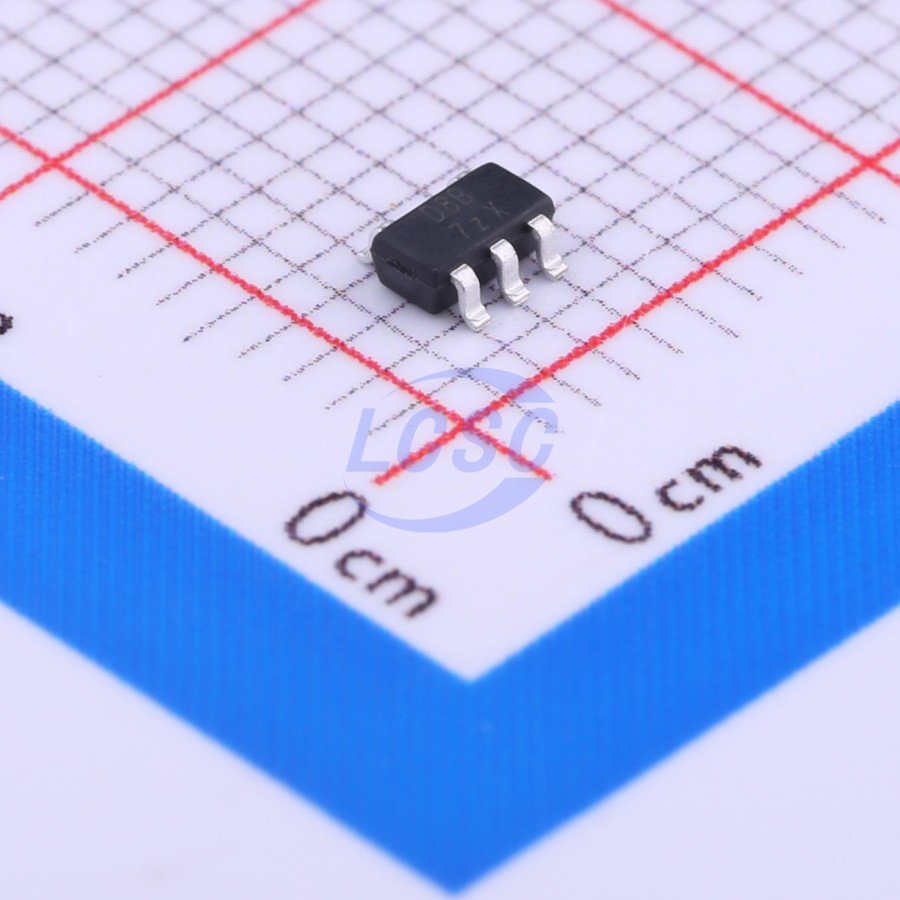

AP7380-50W5-7
5V Positive Fixed SOT-25-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25-5ROHS3 CompliantActive
Wide input voltage range 150mA low dropout regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7380-50W5-7
- Store part #
- C115095
- Package / case
- SOT-25-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C115095
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.48 | ₹162.40 |
| 50+ | ₹25.79 | ₹1,289.50 |
| 150+ | ₹22.91 | ₹3,436.50 |
| 500+ | ₹19.34 | ₹9,670.00 |
| 3,000+ | ₹17.74 | ₹53,220.00 |
| 6,000+ | ₹16.79 | ₹1,00,740.00 |
5 × ₹32.48
₹162.40
excl. GST
₹191.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7380-50W5-7
₹162.40 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The AP7380 series is a positive voltage regulator IC. The AP7380 has features of wide input voltage range, high accuracy, low dropout voltage, current limit and ultra- low quiescent current which make it ideal for use in various USB and portable devices and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7380 is available in 1.8V, 3.0V, 3.3V, 3.6V, 4.15V, 4.4V and 5.0V fixed output voltage versions. The AP7380 is available in space- saving SOT25 and SOT89 (Option 2) packages.
Applications
- Battery- powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 24V
- Low Dropout Voltage: VDROP = 500mV @ IOUT = 50mA
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2205-50W5-7#C5378676DIODES · SOT-25 | DIODES | SOT-25 | 2,046 | ₹57.89 · 2,046 in stock | View |
 | CJ6388B50M#C17703087JSCJ · SOT-23-5L | JSCJ | SOT-23-5L | 2,405 | ₹27.43 · 2,405 in stock | View |
 | TPS7B92050DBVR#C36907702TI · SOT-23-5 | TI | SOT-23-5 | 920 | ₹38.09 · 920 in stock | View |
 | HT7550-1(SOT23-5)#C3011201TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 6,385 | ₹15.94 · 6,385 in stock | View |
 | ICW1235C50M5GQ1#C5448737ICW · SOT23-5 | ICW | SOT23-5 | 8,815 | ₹41.22 · 8,815 in stock | View |
