DIODES

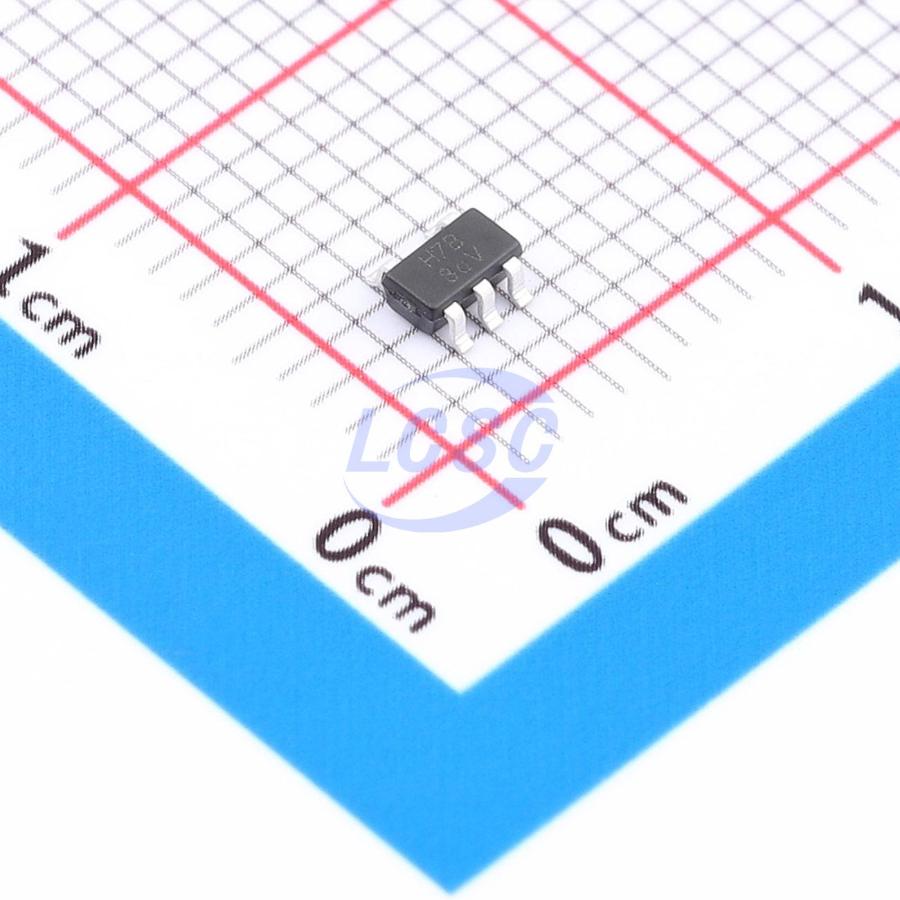

AP7387-33W5-7

3.3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS3 CompliantActive

Wide input voltage range 150mA LDO regulator

Manufacturer: DIODES
Manufacturer part #: AP7387-33W5-7
Store part #: C3748564
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,997 in stock

#C3748564

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹113.22	₹113.22
10+	₹91.71	₹917.10
30+	₹80.84	₹2,425.20
100+	₹70.20	₹7,020.00
500+	₹63.68	₹31,840.00
1,000+	₹60.42	₹60,420.00

Quantity (min 1)

1 × ₹113.22

₹113.22

excl. GST

₹133.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP7387-33W5-7

₹113.22 for 1 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 60V
Output Current: 150mA
Features: Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.313 g

Overview

The AP7387 is a wide input voltage range (60V), low quiescent current, high-PSRR, linear regulator able to drive 150mA output current. The device features a very fast line/load transient response against rapid input-voltage and load-current changes. The IC consists of a voltage reference, an error amplifier, a current-limit circuit for currentprotection, short-circuit, and thermal-shutdown protection. The AP7387 has 3.0V, 3.3V, 3.6V, and 5V fixed output voltage versions, and is available in the SOT23, SOT25, SOT89, and UDFN2020-6 (Type C) packages.

Applications

Battery-powered equipment
Smoke detectors and sensors
EV and HEV battery management systems
Micro-controller applications
Home appliances

Key features

Wide Input Voltage Range: 5V to 60V
Maximum Output Current: 150mA
VDROP = 700mV @ IOUT = 100mA (typ.)
VDROP = 1100mV @ IOUT = 150mA (typ.)
Low Quiescent Current: 2μA (typ.)
High Output Voltage Accuracy: ±2%
High PSRR: 70dB @ 1kHz
Excellent Line/Load Regulation
Thermal Shutdown Function
Short-Current Protection Function
Output Current Limit
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) An automotive-compliant part is available under separate datasheet (AP7387Q)
