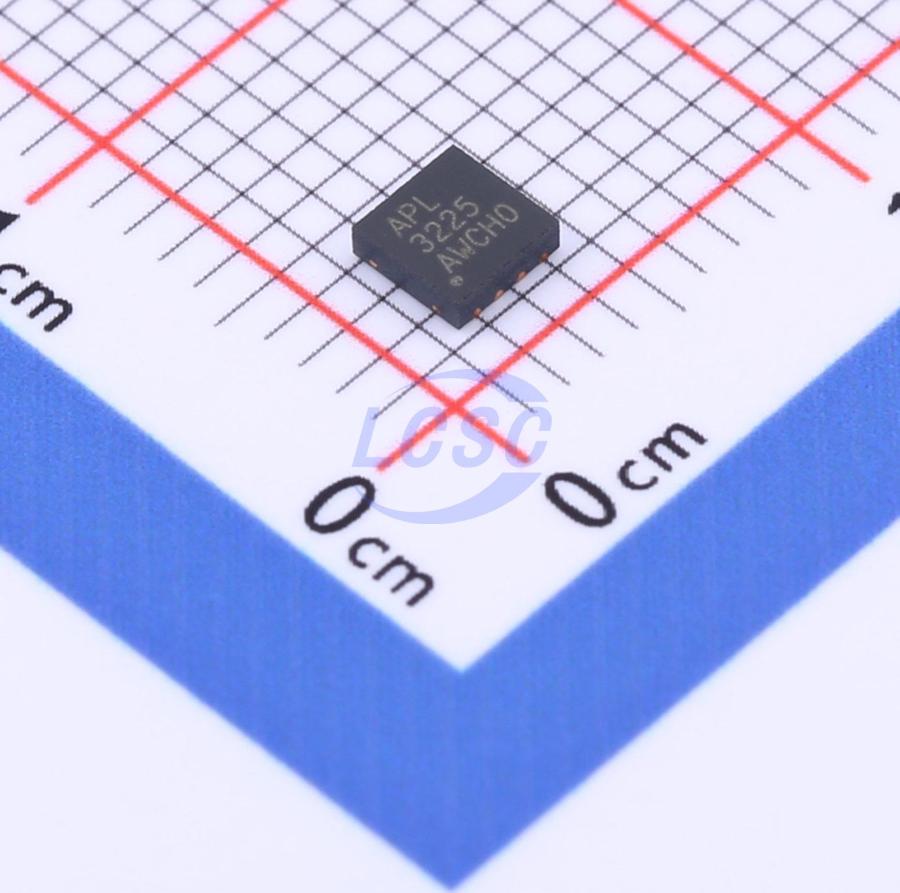

APL3225QAI-TRG
Lithium Battery 1A TDFN-8-EP(3x3) Battery Management
Li+ Charger Protection IC
- Manufacturer
- ANPEC
- Manufacturer part #
- APL3225QAI-TRG
- Store part #
- C2691613
- Package / case
- TDFN-8-EP(3x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,779 in stock
#C2691613
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹5.44 | ₹5.44 |
| 10+ | ₹4.41 | ₹44.10 |
| 30+ | ₹3.89 | ₹116.70 |
| 100+ | ₹3.51 | ₹351.00 |
| 500+ | ₹3.20 | ₹1,600.00 |
| 1,000+ | ₹2.67 | ₹2,670.00 |
1 × ₹5.44
₹5.44
excl. GST
₹6.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APL3225QAI-TRG
₹5.44 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 350uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Overcurrent Protection;Overvoltage protection;Reverse current blocking;Soft-start
- The Chip Type
- Protection IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.187 g
Overview
The APL3225 provides complete Li+ charger protection against input over-voltage, input over-current and overtemperature. When any of the monitored parameters is over the threshold, the IC turns off the charging current. All protections also have deglitch time against false triggering due to voltage spikes or current transients. The APL3225 integrates a 5.5V LDO to prevent ACIN overshoot reaching CHR_LDO and OUT. When any transient peak voltage above 5.5V presenting in ACIN pin, but below OVP threshold, the internal LDO will clamp its output at 5.5V. When ACIN voltage exceeds OVP threshold, the device will turn off charging current. The charging current is controlled by the GATDRV pin. When sourcing a current from the GATDRV pin, the OUT pin delivers the charging current which is 200-fold magnified in amplitude based on GATDRV’s current. Other features include accurate V_VCDT/V_ACIN voltage divider, reverse current blocking from OUT to ACIN and OTP protection. The APL3225 provides complete Li+ charger protections, and saves the external MOSFET and Schottky diode for the charger of cell phone’s PMIC. The above features and small package make the APL3225 an ideal part for cell phones applications.
Applications
- Cell Phones
Key features
- Provide OUT Pin 5V Voltage Clamping Protection
- Thermal Charging Regulation Protection
- Provide Input Over-voltage Protection
- Provide Input Over-current Protection
- Provide Over Temperature Protection
- Provide Reverse Current Blocking
- High Immunity of False Triggering
- High Accuracy Protection Threshold
- Low On Resistance 0.3Ω Typ.
- Compact TDFN2x2-8 and DFN3x3-8 Packages
- Lead Free and Green Devices Available (RoHS Compliant)
