DIODESDatasheet (PDF)

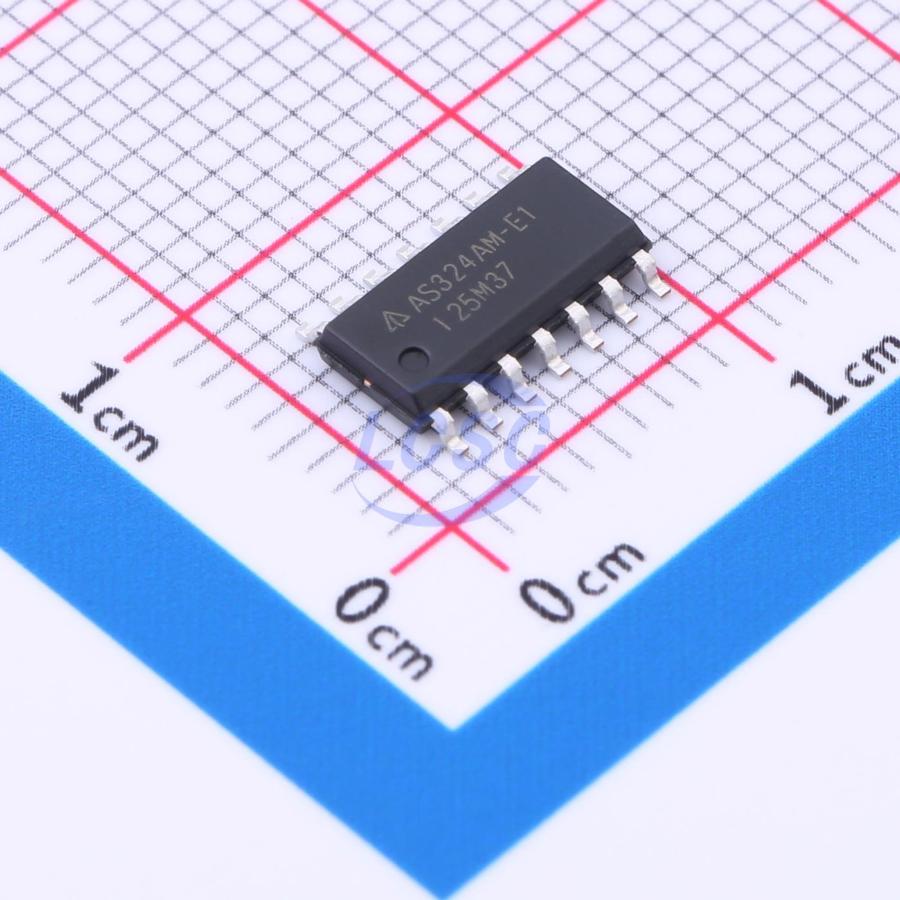

AS324AMTR-E1
60mA 4 3mV 70dB 100nA 1.2mA SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Low Power Quad Operational Amplifiers
- Manufacturer
- DIODES
- Manufacturer part #
- AS324AMTR-E1
- Store part #
- C2059199
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,250 in stock
#C2059199
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.79 | ₹53.95 |
| 50+ | ₹9.54 | ₹477.00 |
| 150+ | ₹8.91 | ₹1,336.50 |
| 500+ | ₹8.45 | ₹4,225.00 |
| 2,500+ | ₹8.07 | ₹20,175.00 |
| 4,000+ | ₹7.89 | ₹31,560.00 |
5 × ₹10.79
₹53.95
excl. GST
₹63.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AS324AMTR-E1
₹53.95 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 100nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 1.2mA
- Features
- Built-in compensation
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.276 g
Overview
The AS324/324A consist of four independent, high gain and internally frequency compensated operational amplifiers. They are specifically designed to operate from a single power supply. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Typical applications include transducer amplifiers, DC gain blocks and most conventional operational amplifier circuits. The AS324/324A series are compatible with industry standard 324. The AS324A has more stringent input offset voltage than AS324. The AS324 is available in SO - 14 and TSSOP - 14 packages, and the AS324A is available in SO - 14 package.
Applications
- Battery Charger
- Cordless Telephone
- Switching Power Supply
Key features
- Internally Frequency Compensated for Unity Gain
- Large Voltage Gain: 100dB (Typical)
- Low Input Bias Current: 20nA (Typical)
- Low Input Offset Voltage: 5mV (Typical)
- Low Supply Current: 0.5mA (Typical)
- Wide Power Supply Voltage Range:
- Single Supply: 3V to 36V
- Dual Supplies: ±1.5V to ±18V
- Input Common Mode Voltage Range Includes Ground
- Large Output Voltage Swing: 0V to VCC - 1.5V
- Power Drain Suitable for Battery Operation
- Lead-Free Packages: SO-14, TSSOP-14
- Totally Lead-Free; RoHS Compliant
- Lead-Free Packages, Available in "Green" Molding Compound: SO-14, TSSOP-14
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM324AMX/NOPB#C2057290TI · SOIC-14 | TI | SOIC-14 | 164 | ₹76.62 · 164 in stock | View |
 | LM324AM/NOPB#C354086TI · SOIC-14 | TI | SOIC-14 | On request | Price on request | Quote |
