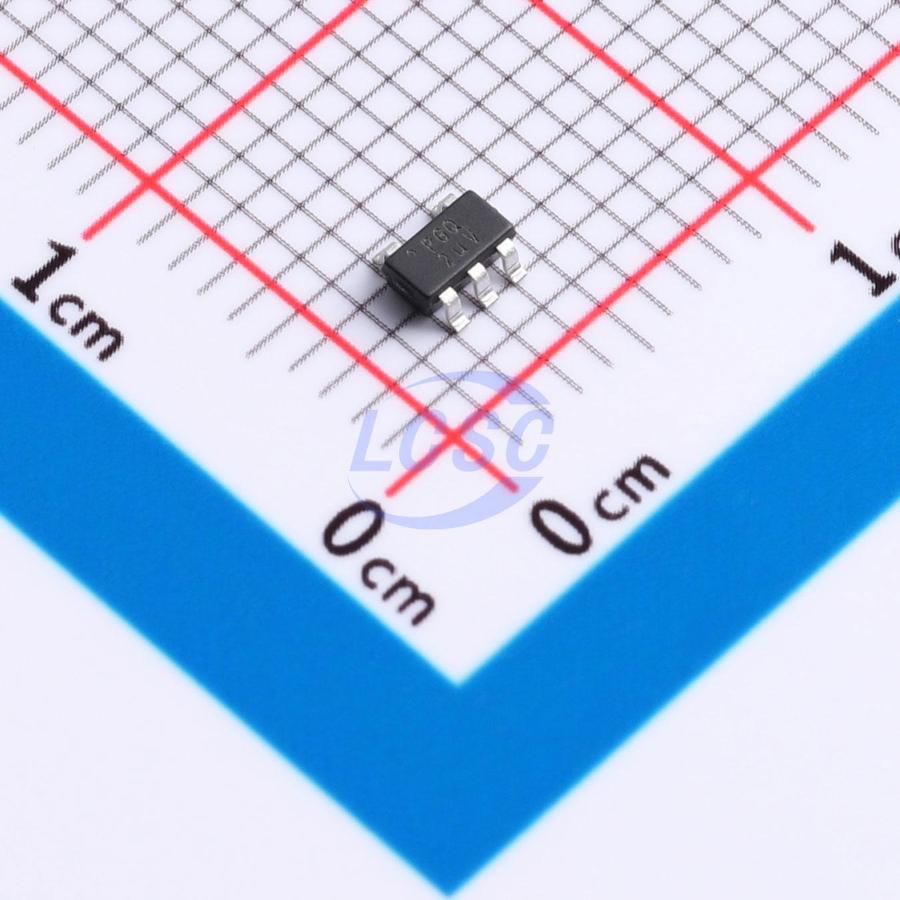

AS333QW5-7

5mA 8uV 0.12V/us 70pA 120dB 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-25 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-25ROHS3 CompliantActive

CMOS ZERO-DRIFT OPERATIONAL AMPLIFIERS

Manufacturer: DIODES
Manufacturer part #: AS333QW5-7
Store part #: C19948480
Package / case: SOT-25
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C19948480

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹24.26	₹121.30
50+	₹23.64	₹1,182.00
150+	₹23.22	₹3,483.00
500+	₹22.81	₹11,405.00

Quantity (min 5, multiples of 5)

5 × ₹24.26

₹121.30

excl. GST

₹143.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AS333QW5-7

₹121.30 for 5 + GST

Specifications

Output Current: 5mA
Vos - Input Offset Voltage: 8uV
Slew Rate: 0.12V/us
Input Offset Current(Ios): 140pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 70pA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 20nV/℃
Quiescent Current: 17uA
Gain Bandwidth Product: 350kHz
Features: Zero drift / auto-zero;ESD protection;Built-in compensation
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.073 g

Overview

The AS333Q is an automotive, high-precision, operational amplifier designed with chopping stabilization technique which eliminates 1/f noise, and the cross over distortion presented in most RRIO amplifiers. The AS333Q, an RRIO amplifier (rail-to-rail input and output), provides not only maximum output voltage swing capability but also an extended 100mV common-mode voltage beyond the supply rail. The device is fully specified to operate from 1.8V to 5.5V single supply, or ±0.9V and ±2.5V dual supply applications. The device features a good speed/power consumption ratio, offering 350kHz gain bandwidth while consuming only 17μA quiescent current. With the low input offset voltage 8μV and zero-drift offset voltage 0.02μV/°C , it is ideal for applications that require precision, especially for low power and high precision ones. The AS333Q is available in the SOT25 package and is AEC-qualified for automotive applications and temperature range grade 1, which is specified for operation from -40°C to +125°C among all supply voltages. The wide temperature ranges and high ESD tolerance facilitate its use in harsh applications.
