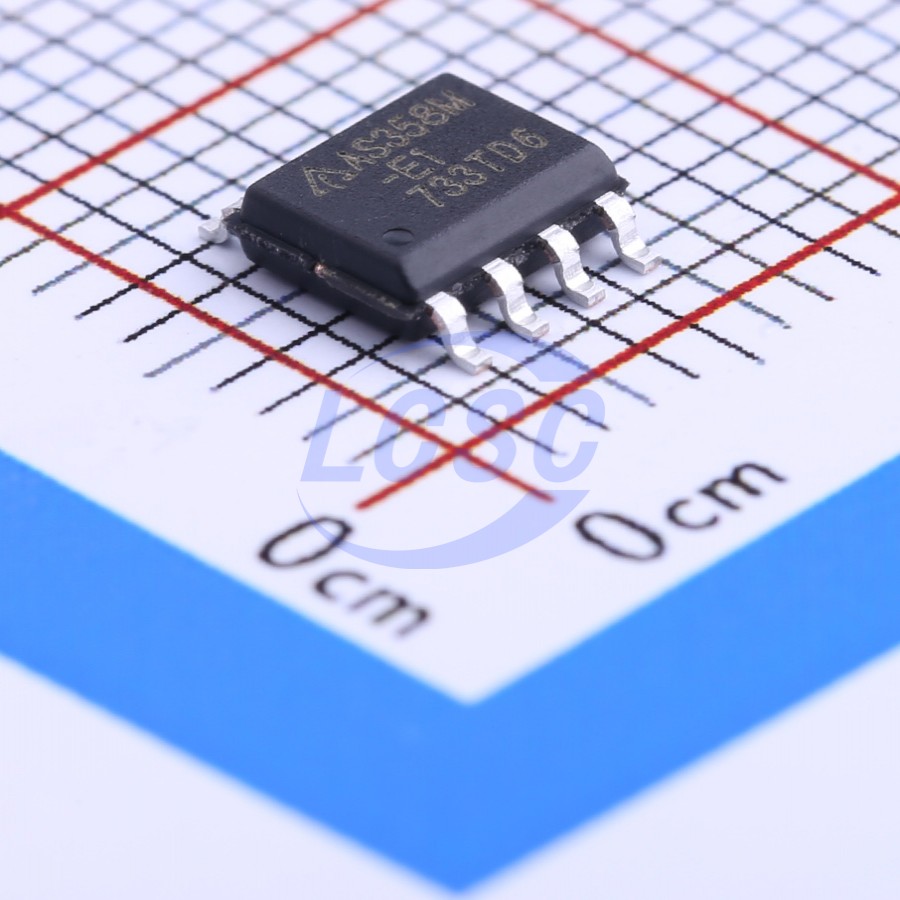

DIODES

AS358MTR-E1

40mA 2 2mV 70dB 20nA 500uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

LOW POWER DUAL OPERATIONAL AMPLIFIERS

Manufacturer: DIODES
Manufacturer part #: AS358MTR-E1
Store part #: C145499
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

40,190 in stock

#C145499

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.57	₹57.85
50+	₹9.14	₹457.00
150+	₹7.93	₹1,189.50
500+	₹7.02	₹3,510.00
2,500+	₹6.29	₹15,725.00
4,000+	₹5.36	₹21,440.00

Quantity (min 5, multiples of 5)

5 × ₹11.57

₹57.85

excl. GST

₹68.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AS358MTR-E1

₹57.85 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 2mV
Input Offset Current(Ios): 30nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 20nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 500uA
Features: Built-in compensation
Dual Supply: -18V~-1.5V;1.5V~18V
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.189 g

Overview

The AS358/358A/358B consists of two independent, high gain and internally frequency compensated operational amplifiers, they are specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages. Typical applications include transducer amplifiers, DC gain blocks and most conventional operational amplifier circuits. The AS358/358A/358B series is compatible with industry standard 358. The AS358A has more stringent input offset voltage than the AS358. The AS358 is available in PDIP-8, TDIP-8, SO-8, TSSOP-8 and MSOP-8 packages, the AS358A is available in PDIP-8 and SO-8 packages and AS358B is available in TSSOP-8 package.

Applications

Battery Charger
Cordless Telephone
Switching Power Supply
Power Amplifier
DC Summing Amplifier

Key features

Internally Frequency Compensated for Unity Gain
Large Voltage Gain: 100dB (Typical)
Low Input Bias Current: 20nA (Typical)
Low Input Offset Voltage: 2mV (Typical)
Low Supply Current: 0.5mA (Typical)
Wide Power Supply Voltage: Single Supply: 3V to 36V; Dual Supplies: ±1.5V to ±18V
Input Common Mode Voltage Range Includes Ground
Large Output Voltage Swing: 0V to VCC - 1.5V
Lead-Free Packages: SO-8, PDIP-8 and TSSOP-8 Totally Lead-Free; RoHS Compliant
Lead-Free Packages, Available in “Green” Molding Compound: SO-8, PDIP-8, TDIP-8, TSSOP-8 and MSOP-8 Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
