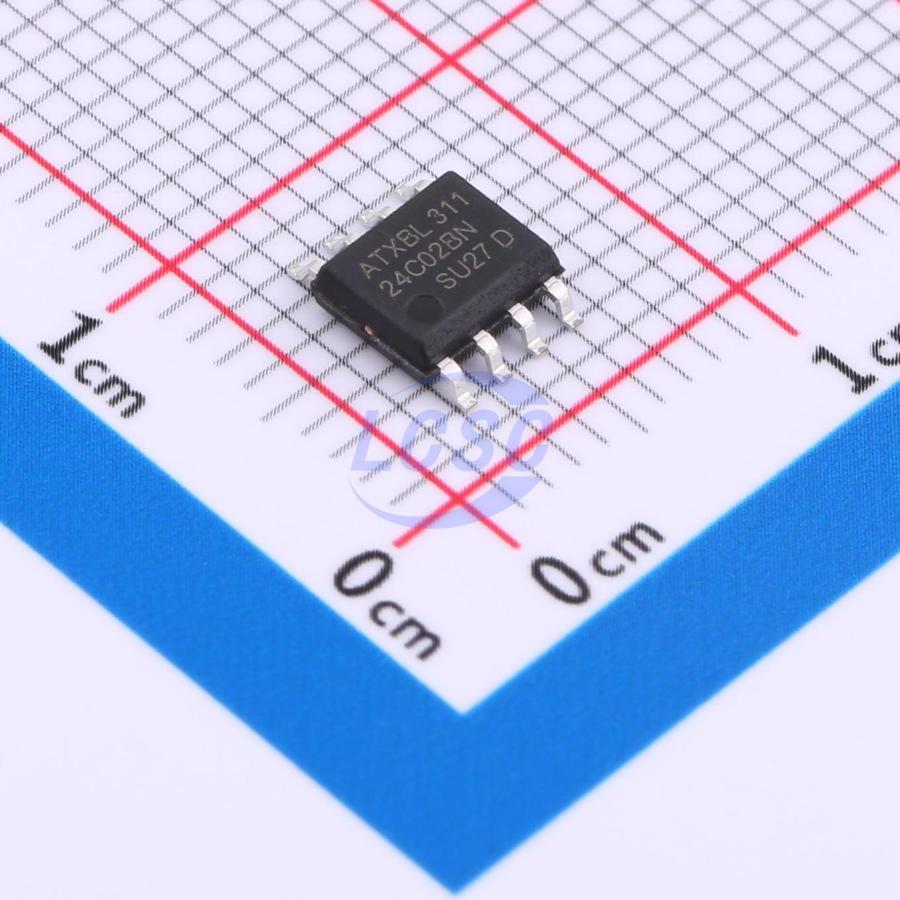

AT24C02
2Kbit 1MHz I2C SOP-8 Memory
Two-Wire Serial EEPROM
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AT24C02
- Store part #
- C7470930
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,070 in stock
#C7470930
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.31 | ₹531.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 1,000+ | ₹4.33 | ₹4,330.00 |
| 4,000+ | ₹3.33 | ₹13,320.00 |
| 8,000+ | ₹3.16 | ₹25,280.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C02
₹64.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.162 g
Overview
AT24C02 is a 2048-bit serial EEPROM organized as 256 words × 8 bits (1 byte per word). Fabricated using a proprietary advanced CMOS process, it is suitable for low-power and low-voltage applications. The device is offered in standard 8-pin DIP, 8-pin SOP, 8-pin MSOP, 8-pin TSSOP, and 5-pin SOT-23/TSOT-23 packages. All read and write operations are handled via a standard 2-wire serial interface. The extended Vcc range of 1.8V to 5.5V makes it suitable for a wide range of applications.
Key features
- Low-voltage and low-power operation: AT24C02: VCC = 1.8V to 5.5V, industrial temperature range (-40°C to 85°C). AT24C02: 3-bit device address, suitable for all applications.
- 16-byte page write mode.
- Partial page write supported.
- Internal organization: 256×8 (2K).
- Standard 2-wire bidirectional serial interface.
- Schmitt trigger inputs with noise suppression filtering.
- Self-timed write cycle (5ms max).
- 1 MHz (2.5–5V) and 400 kHz (1.8V) compatible.
- Auto-erase before write operation.
- Write protect pin for hardware data protection.
- High reliability: 1,000,000 erase/write cycles typical endurance.
- 100-year data retention.
- Standard 8-pin DIP/SOP/MSOP/TSSOP and 5-pin SOT-23/TSOT-23 lead-free packages.
